ZR 1-Channel Class D Amplifier 1000 Watts RMS-1 Ohm

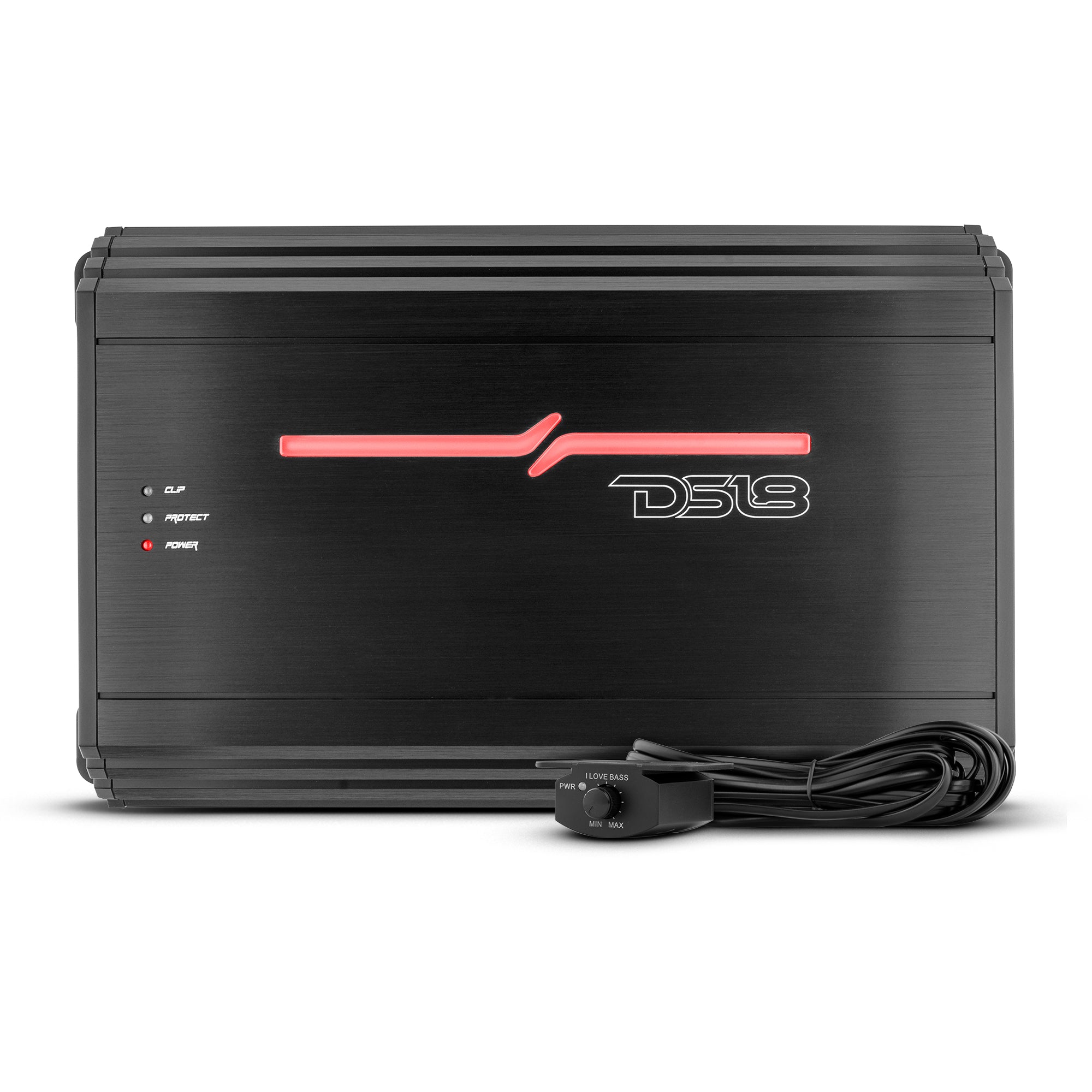

DS18 ZR1000.1D Class D 1-Channel Monoblock Amplifier 1000 Watts RMS-1 Ohm

The ZR Series amps are sure to power all your subwoofers with great sound acuity and massive bass frequency responses.

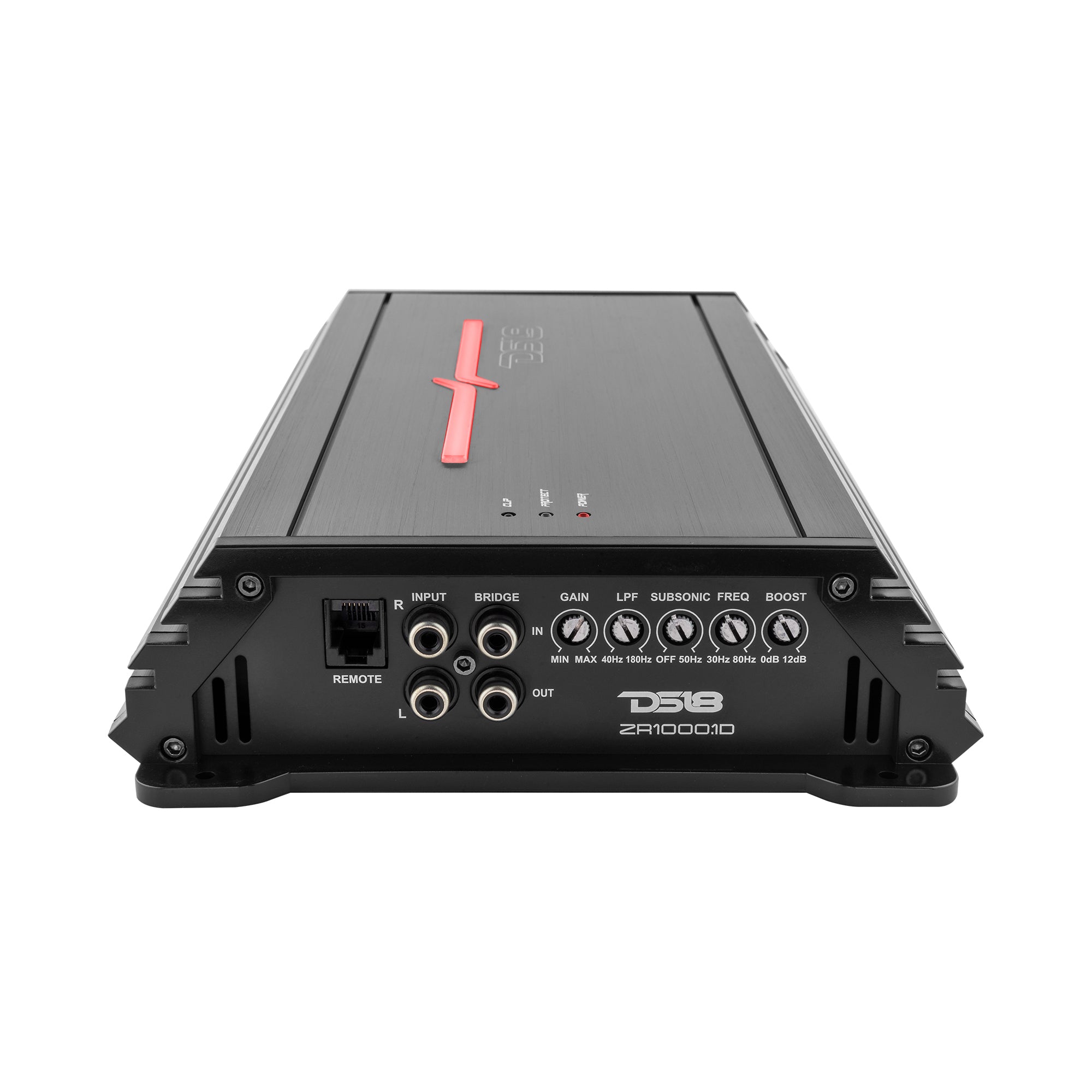

They have been designed to efficiently pump out hard hitting bass and put your subwoofers at their maximum potential. Easily tuned, The ZR1000.1D comes with Lowpass and Subsonic filters to help you set to the perfect frequency for your music preference.

The included bass knob will help you attenuate your bass with a quick turn of the dial to tune in your bass volume with every song you play. The ZR1000.1D is made to deliver 1000 watts RMS @ 1-Ohm, 650 watts RMS @ 2-Ohms, and 380 watts RMS @ 4 ohms giving you the perfect power for your bass.

Key Features

• Digital Class D Subwoofer Monoblock
• MAX Wattage: 3000w Peak @ 1-Ohm
• RMS Wattage: 1000 Watts RMS @ 1-Ohms, 650 Watts RMS @ 4-Ohms, 380 Watts RMS @ 4-Ohms
• Frequency Response: 10-220 Hz
• Signal to Noise Ratio: >95Db
• Efficiency at 4-Ohms: 80%
• Total Harmonic Distortion: 0.01%
• Input Range: .02-6v
• Selectable X-Over: LPF fixed
• Bass Boost: 0-12Db
• Phase: 0-180
• LED Indicator: Clipping, Power, Protect
• Power and Ground Terminal: 4 Ga
• Minimum Impedance: 1 Ohm

Good For:

• Car Audio
• Pro Audio
• Motorcycles
• Home Studio
• Hi-Fi Installation
• Off-Road
• DIY Projects












  Technical Details

                                       ZR1000.1D Product Manual


  POWER
  Total Watts (Peak)	3000W
  RMS Power @ 4 ohm	380W
  RMS Power @ 2 ohm	650W
  RMS Power @ 1 ohm	1000W
  AUDIO
  Frequency Response	10-220Hz
  Signal to Noise Ratio	>95dB
  Efficiency @ 4ohm	80%
  Damping Factor	220
  Input Impedance	20K ohm
  Channel Separation	N/A
  Total Harmonic Distortion (THD)	0.01%
  Low Level Input Range	0.2-6V
  High Level Input	No
  Selectable X-Over	LPF Fixed
  X-Over Filter Range	40-180Hz
  Bass Boost Range	0-12db
  Bass Boost Frequency	30-80hz
  Infrasonic Filter	10-50hz
  Phase Selector	No
  FEATURES
  Amplifier Class	Digital
  Amplifier Type	Monoblock Subwoofer
  Number of Channels	1
  Minimum Impedance	1 ohm
  Led Indicator	clipping/protect/power

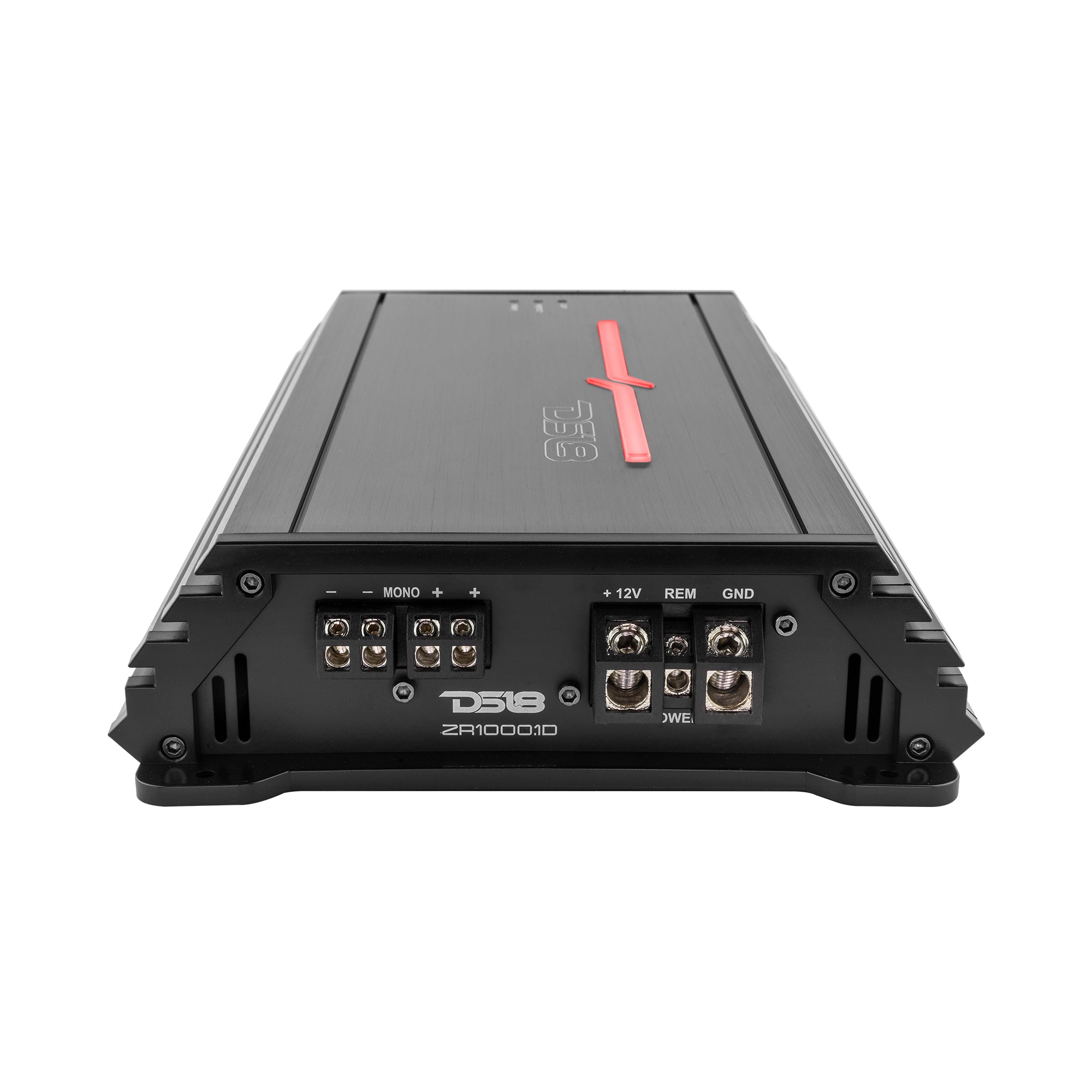

  Power Input Terminal Size	4ga
  Fuse Size	100A

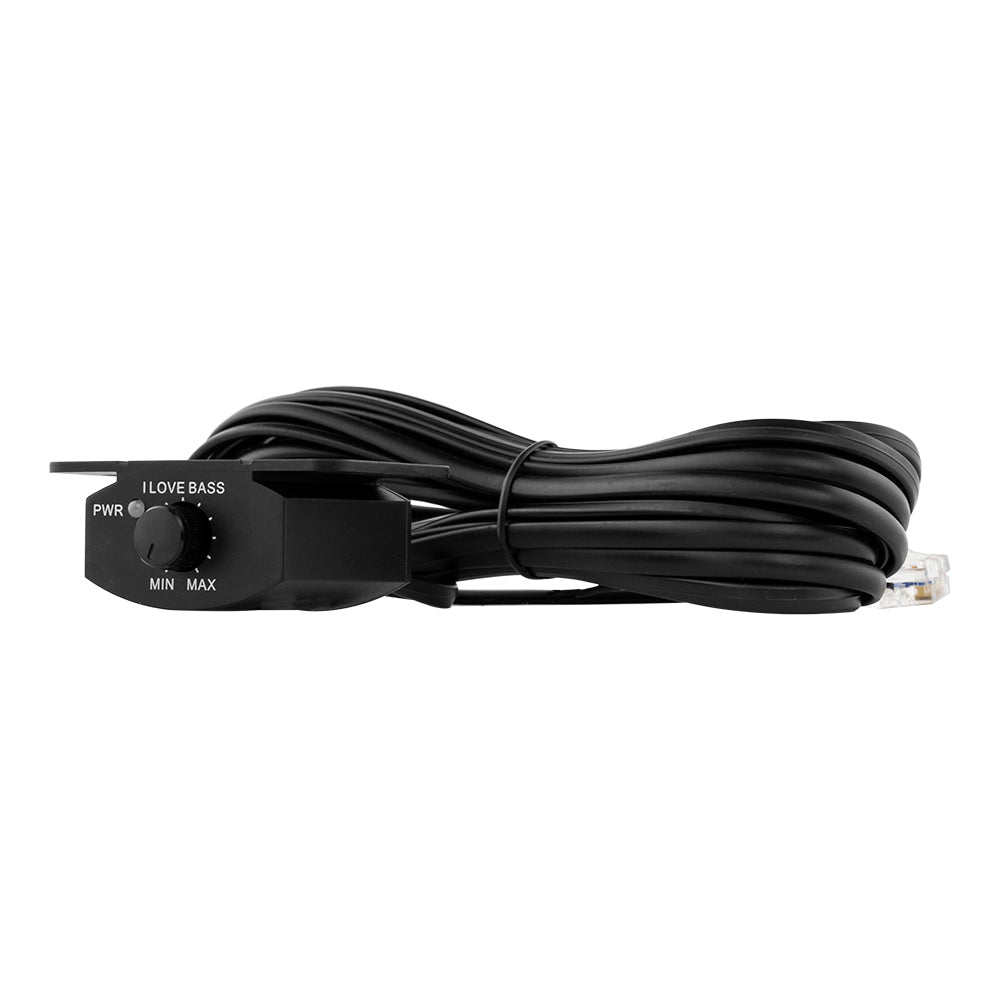

  Remote Level Control	Yes / Dash Mount
  Cooling Fan	No
  Voltmeter	No
  Thermal Protection	Yes
  Over-Load Protection	Yes
  DC Output Protection	Yes
  Short Circuit Output Protection	Yes
  Voltage Input Protection	Yes <9 / >16 Volts
  Clipping Protection	Yes
  Body Color / Finish	Black Aluminum Brush
  MEASUREMENT
  Overall Length	11.8" / 301mm
  Overall Wide	7.24" / 184mm
  Overall Height	2" / 53mm
  Heatsink Length	10.47" / 266mm
  Gross Single Unit Weight	5.8Lb
