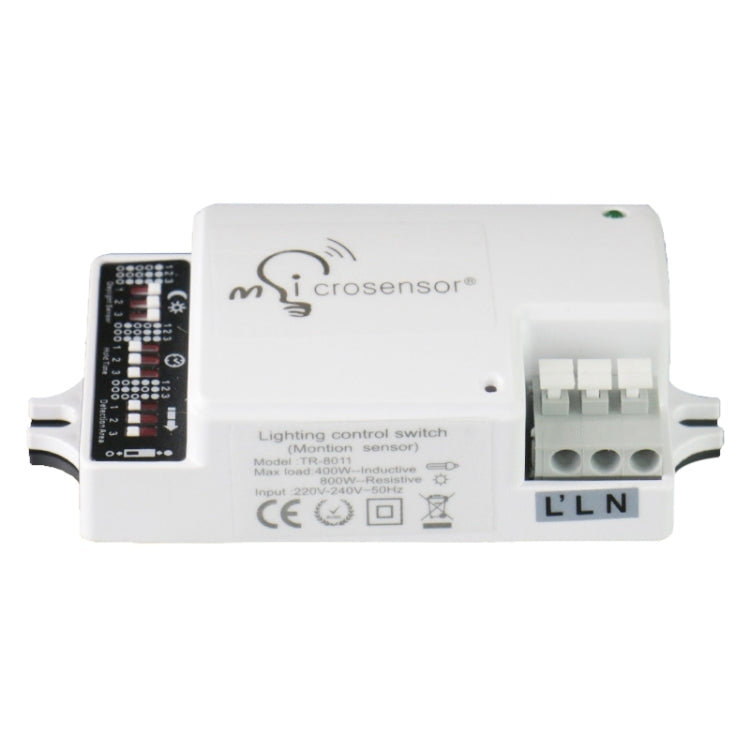

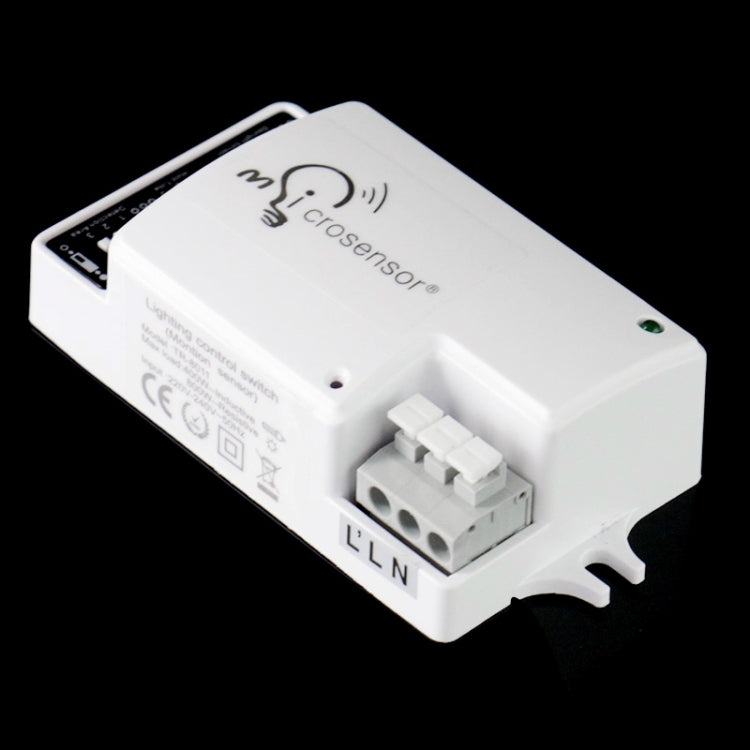

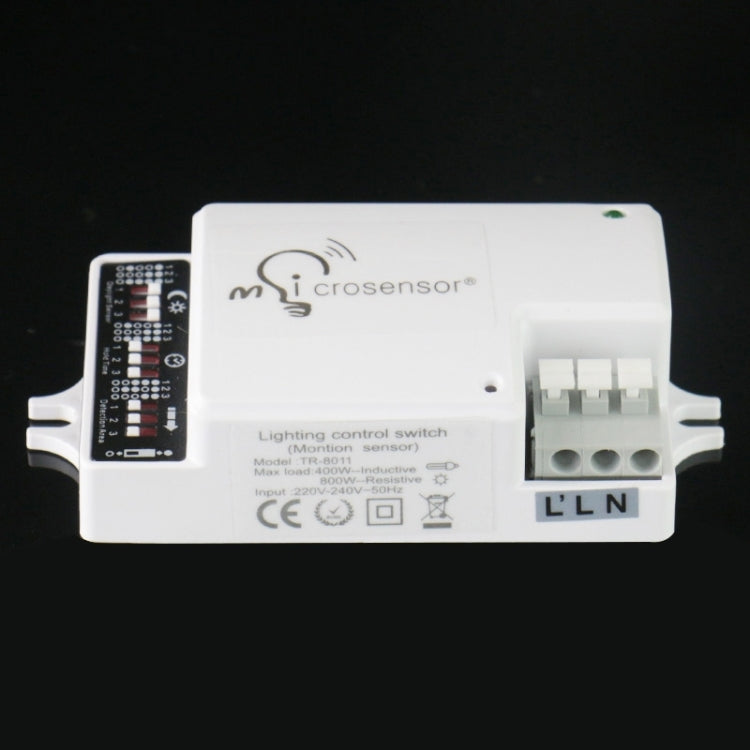

TR-8011 AC 220-240V Light Control Sensor Automatic Light DIP Switch, Detection Range: 10m
Regular price
$15.04
Regular price
Sale price
$15.04
Couldn't load pickup availability
Details
SKU:S-LED-5346
Availability:In Stock
Description

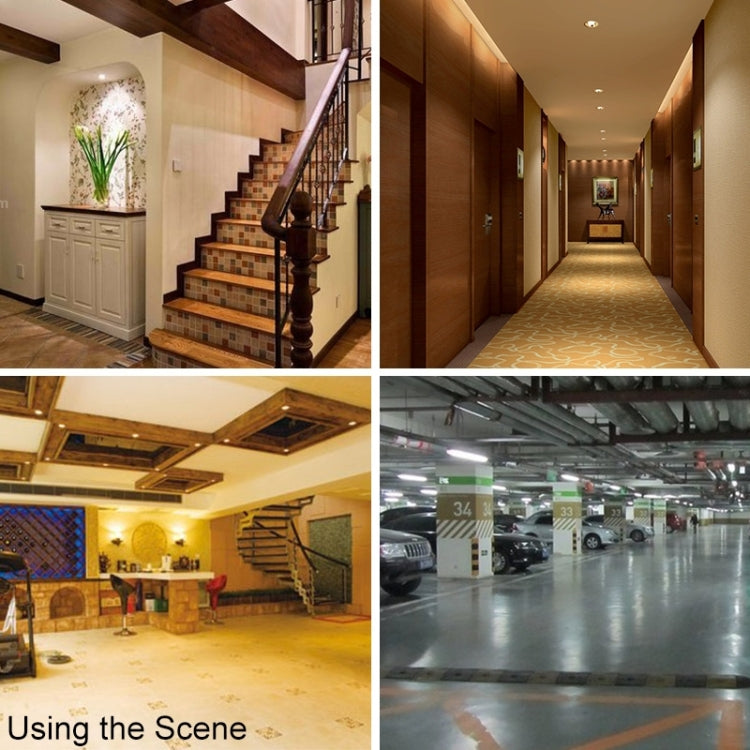

Features 1. The product can turn on or turn off light according to ambient-light. 2. Ambient-temperature and humidity can not affect it. 3. It is not only convenient but also practical. 4. Detection range: 10m (10%/30%/50%/80%/100%). 5. Delay time: 5s/15s/3min/5min/10min. 6. Light control: 5/10/30/100/disable. 7. Microwave frequency: 5.8GHz +/-75MHz. 8. Transmit power: <0.2mW. 9. Installation: Ceiling installation, wall hangings. 10. Detection angle: 180 degrees. 11. Installation height: Max. 2.5m. 12. IP rating: IP20. 13. It can control the load working only at night. 14. For instance road light, garden light etc.

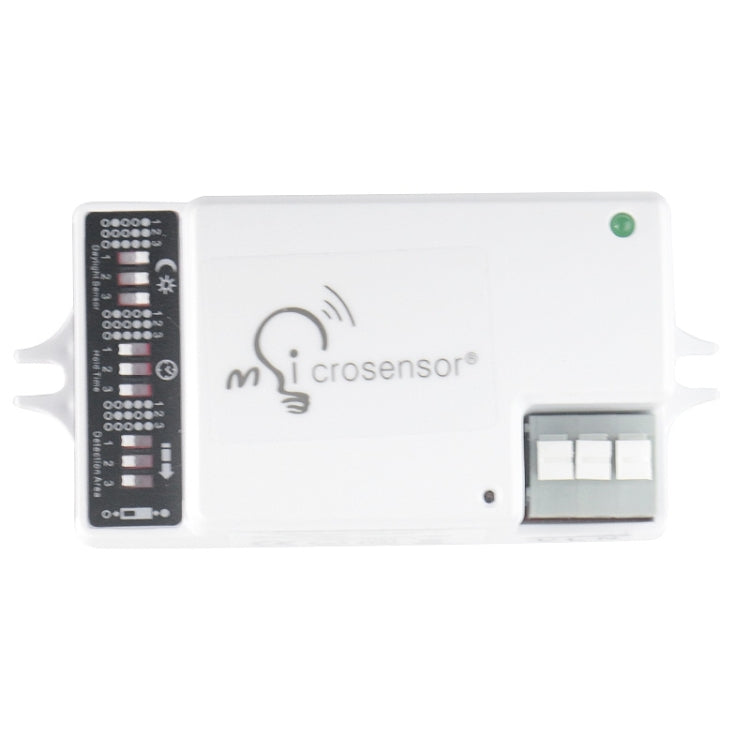

Dial Switch Instructions 1. Light control setting Light response threshold 5 stalls to choose from, 5Lux,10Lux,30Lux,100Luxand disable, respectively, optical control of a brightness sensor to setthe threshold values as defined. 2. Delay setting Delay setting with 5 stalls to choose from, namely 5S,15S,180S,300S,600S;after induction, the output signal will remain within a preset time,detected during the mobile signal, delay will be included. 3. Sets the distance Distance setting with 5 stalls to choose from, namely10%,30%,50%,80%,100%; based on actual usage, choose a different distance.
Specification:
General
Model
TR-908
Material
ABS
Max Load
400W (max. of inductive load)/800W (max. of resistive load)
