Silk Screen Printing Machine Single Rotating T-Shirt Screen Printing P

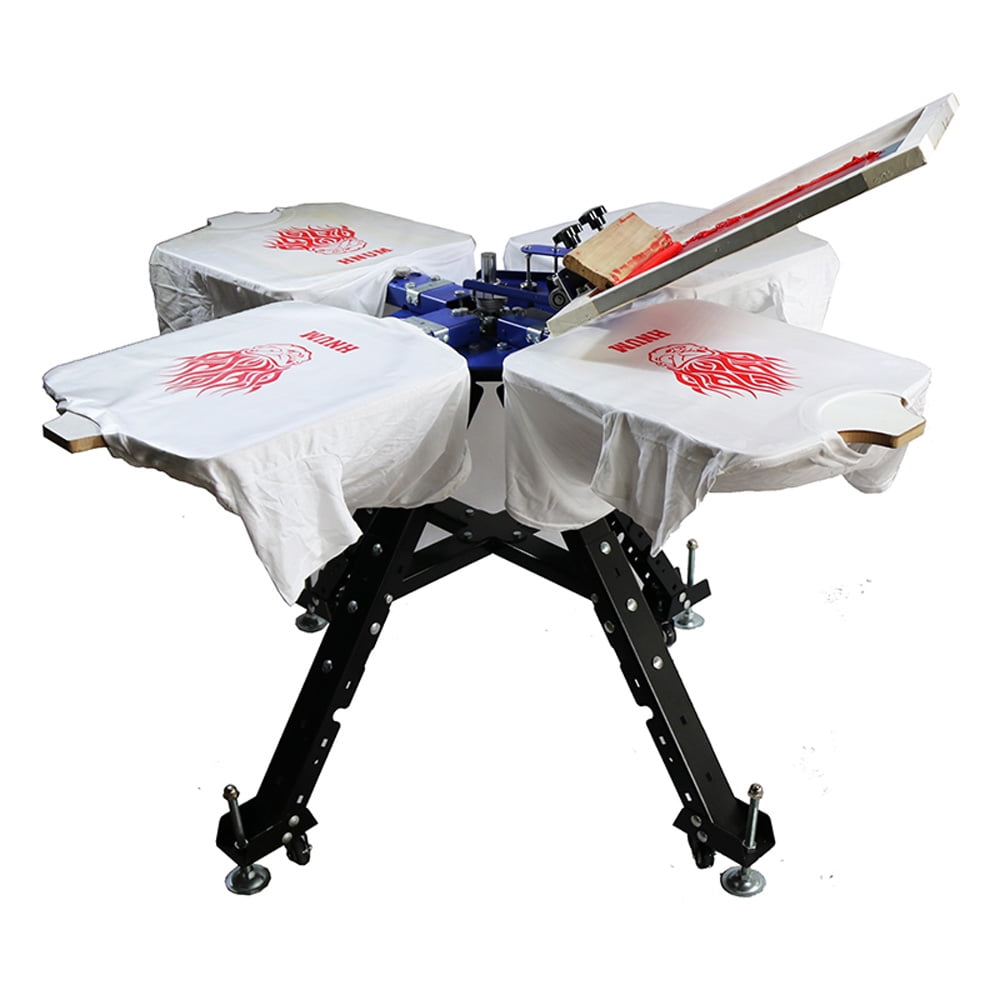

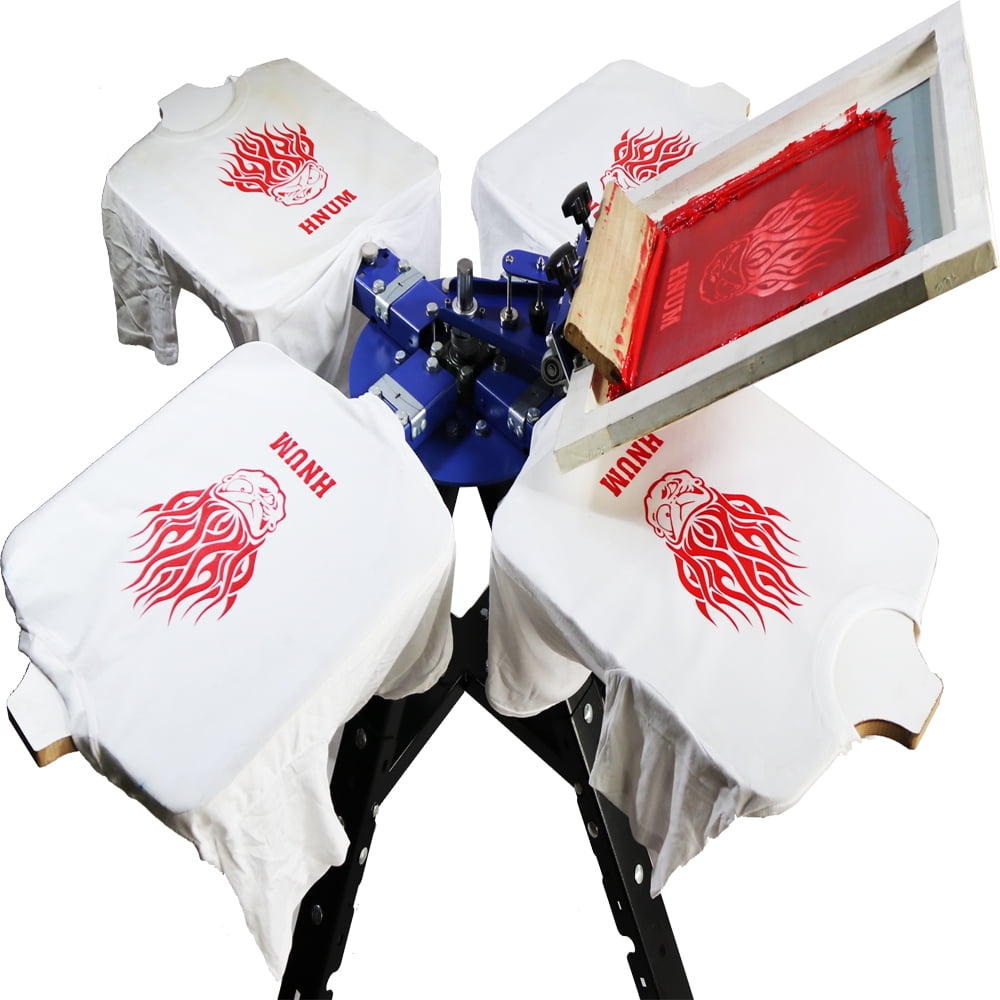

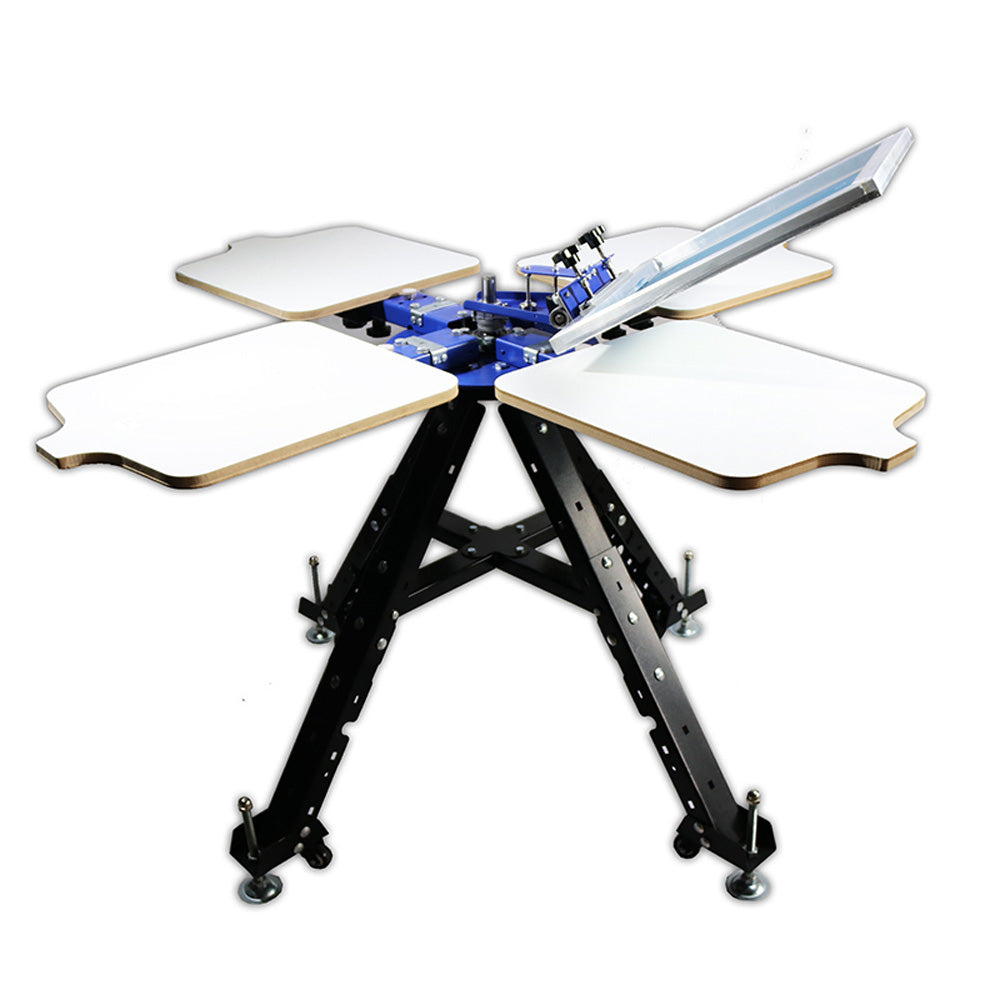

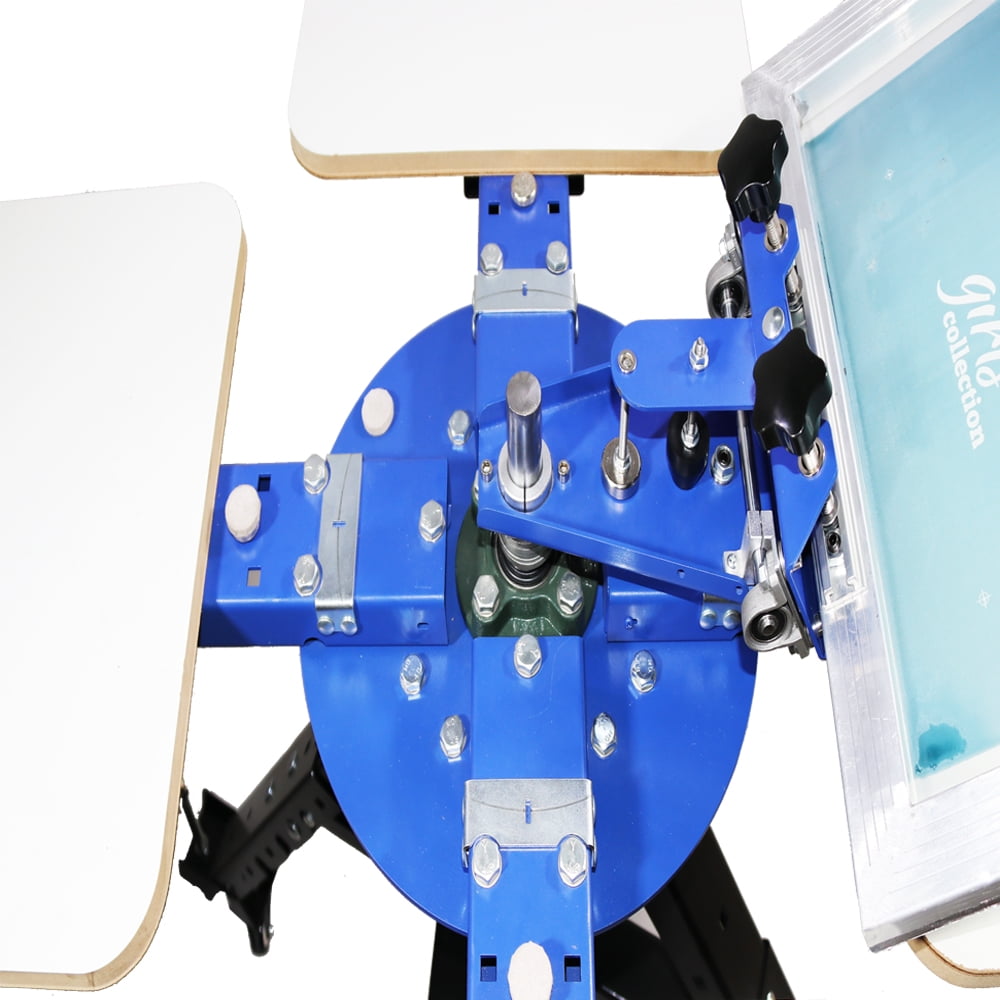

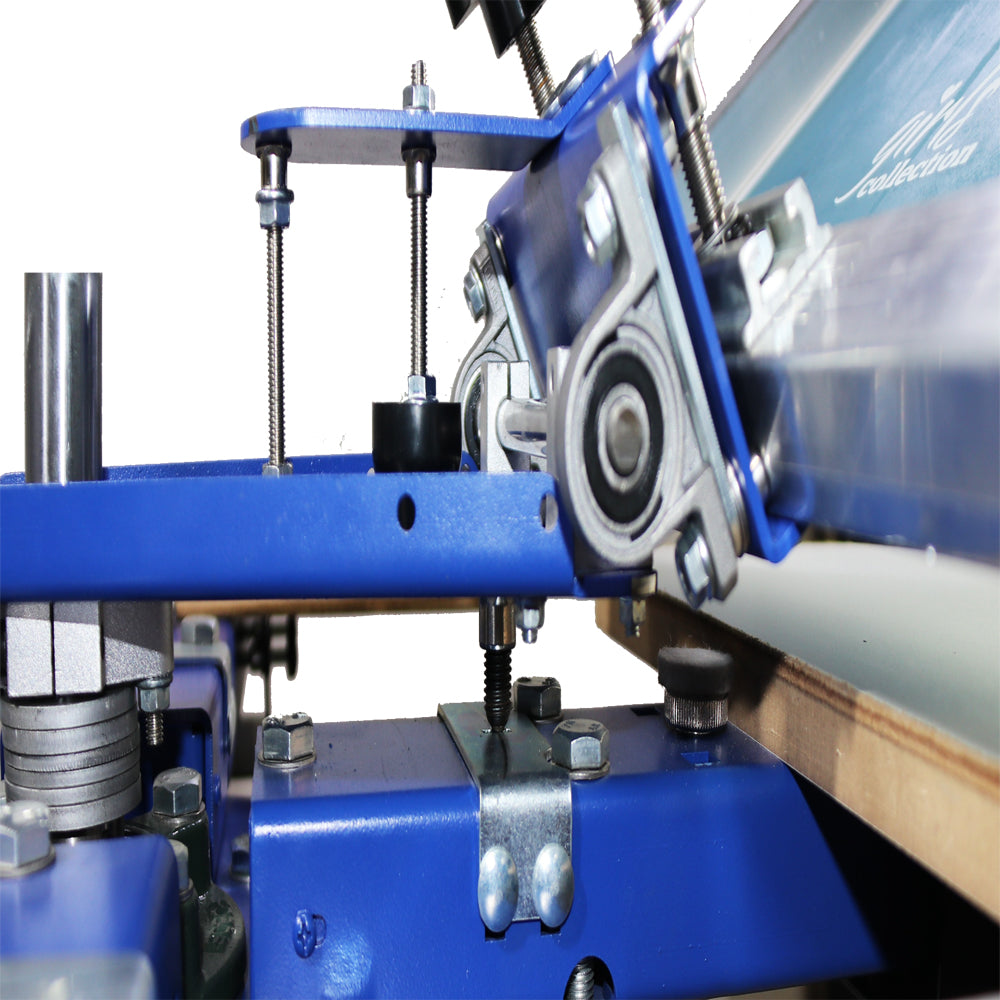

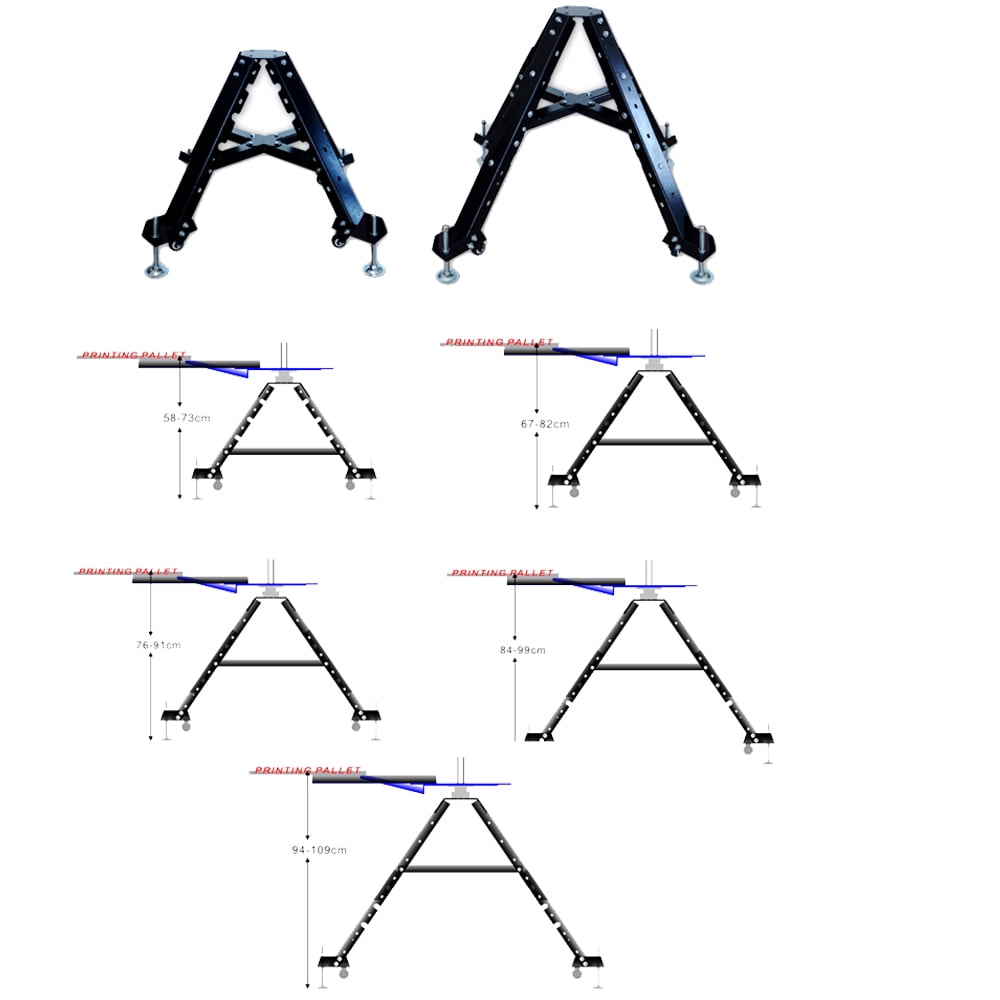

Description: This machine is used for one color T-shirt or cloth products. Equipped with four independent printing table,higher printing efficiency. The machina adopts adjustable height rack,The height of the rack can be adjusted according to the operator's heignt and working habits: The adjustment range from the ground is 58-109cm; The operator can work by standing or sitting on a chair according to the height of therack. Function Introduction 1: Four plates can be arbitrarily rotated 360 degrees:Can be printed at any station. 2: The plate rotates to the printing statton and is postioned by the wave bead. 3: Adopts magnet adsorption to the control the screen frame lifting up balance. 4: Screen frame chuck width is 240mm，height is 68mm,suitable for all kinds of frame height within 50mm. 5: This shelf can adjust five height ranges according to height requirements. 6: The diameter of the lowest adjusting height of this shelf is 95cm,and the diameter of the highest adjusting height is 135cm. 7: When this shelf wants to move,it can raise four supporting feet,so that the wheel lands,it can be pushed to move. Before the complete installation, all the screws should be not fully tightened ; When finished all parts’ installation and the overall machine is adjusted alright ,we can tighten all the screws. Specification： Type: 1 Color 4 Station Pallet size: 22×18×0.7(thickness)inch Items included(006172): 1 set of SPE-GTB14LS Height Adjusting 1 Color 4 Station Single Rotating Screen Printing Press
