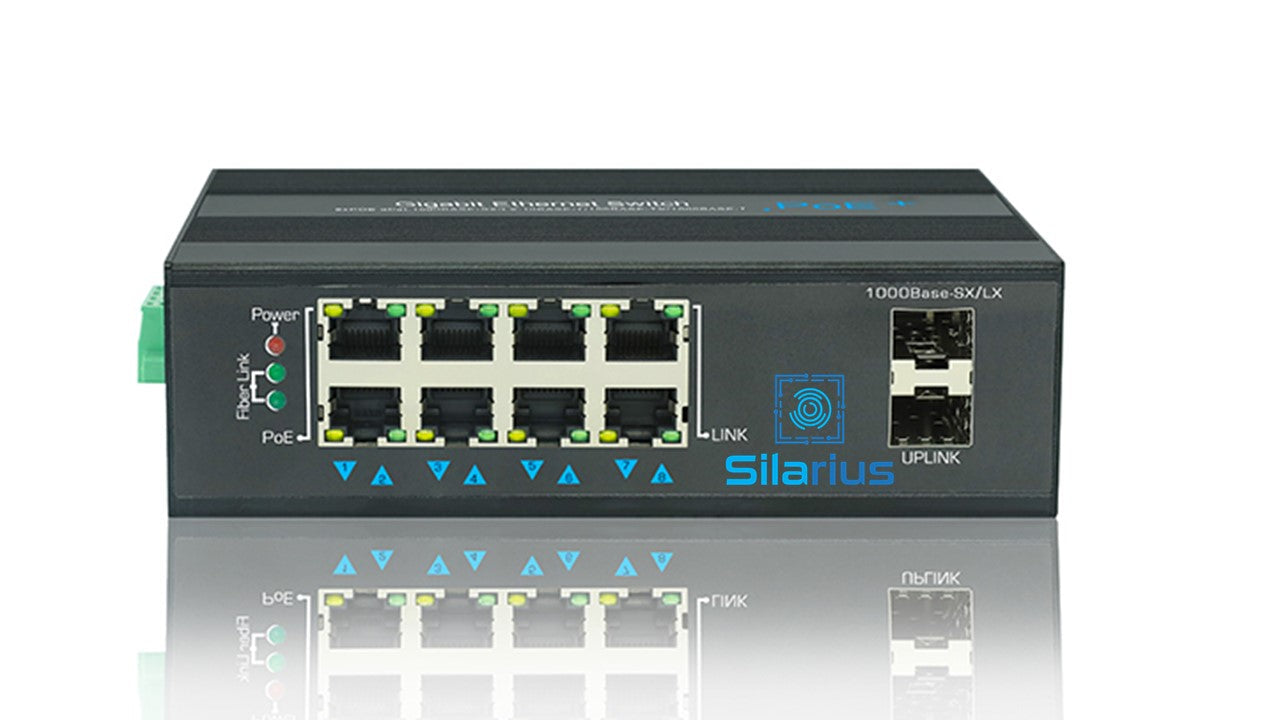

Silarius SIL-SW8POE1G Gigabit Industrial 8 Port POE Switch Gigabit 2 Fiber Port

Unlock the power of your network with Silarius SIL-SW8POE1G Gigabit Industrial 8 Port POE Switch Gigabit 2 Fiber Port
The Silarius SIL-SW8POE1G Gigabit Industrial 8 Port POE Switch Gigabit 2 Fiber Port is a revolutionary device that can help your business take its operations to the next level. With eight gigabit ports and two fiber ports, this switch provides lightning fast speeds when transferring data between computers, servers and other devices. It also includes Power over Ethernet functionality, so you don't have to worry about extra power cords cluttering up your work space. The Silarius SIL-SW8POE1G is the perfect tool for any business looking to increase efficiency and productivity!

● Model number: SIL-SW8POE1G
● 8 x 1000Mbps downlink PoE Ethernet port, data transmission up to 100m
● Uplink port: 2 x Gigabit Fiber Ports,Data transmission: depends on the optical module
● Backplane Bandwidth: 20Gbps
● Power Adapter Voltage: DC 48V-57VDC (adapter included)
● Maximum 30 watts power for each PoE port
● IEEE 802.3af,IEEE 802.3at PoE Standard Compliant
● Total Power: 120W



The SIL-SW8POE1G is suitable for industrial, outdoor and other harsh environments, effectively avoiding the effects of high temperatures and extremely low temperatures. Redundant power supply design, support for hot backup of power supply, ensuring power supply requirements for connected devices, and standard DC port and green terminal port, support power adapter with different connectors and power. Provide 2 x Gigabit Fiber Ports, data transmission depends on the optical module you are using.





 | Item | Description
 | Power | Power Adapter Voltage | 48-57V DC
 | Consumption | <6W
 | Network Connector | Network Port | Combo port, SFP optical port: 1000Mbps Other optical port: 10/100/1000Mbps
 | Transmission Distance | Ethernet port:100m; SFP optical port: depend on the optical moduletransmission performance
 | Transmission Medium | Cat5e/6 standard network cable
 | Network Switch | Network Standard Switching Capacity | IEEE802.3,IEEE802.3u,IEEE802.3ab, IEEE802.3z
 | 20Gbps
 | Packet Forwarding Rate | 14.88Mpps
 | MAC Table | 8K
 | Power Over Ethernet | PoE Standard | IEEE 802.3af/at
 | PoE Power Supply Type | End-Span(1/2+;3/6-) / 4 pairs wire
 | PoE Power Consumption |  Single Port<30W/Single Port<60W
 | LED Status Indicator | PoE Ethernet LED Indicator | Power: 1 red light indicates that the power normal work;
 | POE: 8 yellow lights indicate POE is power on
 | Ethernet: 8 Green lights indicate network status;
 | Fiber:2 Green lights indicate fiber working status
 | Environmental | Working temperature | -40℃~75℃
 | Relative Humidity | -40℃-85℃
 | Storage temperature | 5-95%
 | Mechanical | Dimension (L×W× H) | 163mm*110mm*46.5mm
 | Color | Black

 | Weight | 750g
 | Stability | MTBF | >30000h









DOWNLOAD SPEC SHEET HERE
