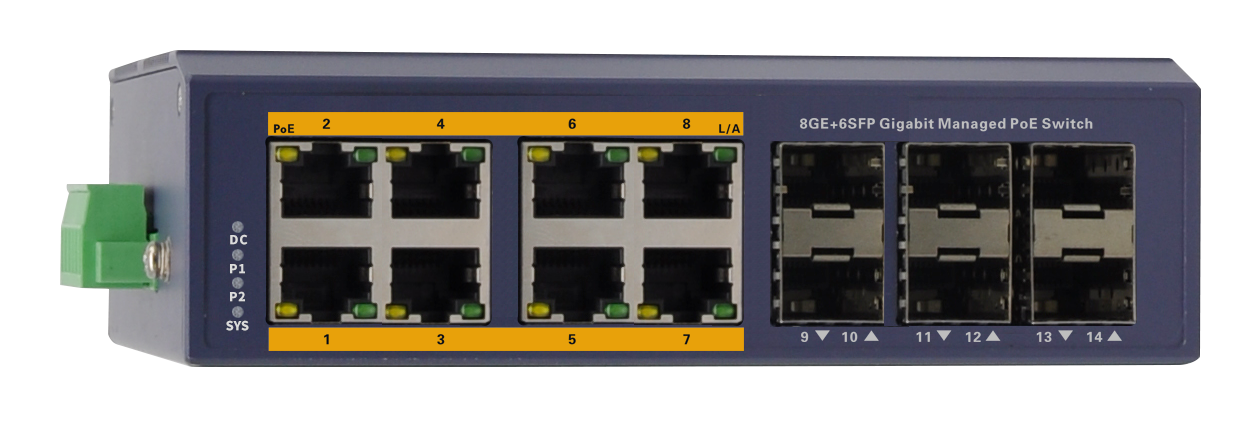

Silarius SIL-INDSW8P1G6SFP 14 Ports Gigabit managed industrial PoE switch - 8 Gigabit RJ45 ports and 6 Gigabit SFP slots

                SIL-INDSW8P1G6SFP

● Input voltage: DC: 48-56V

● Working temperature: -40℃ ~ +75℃

● Shell: IP40 protection level, fanless design

● Static electricity: 8KV-15KV

● MTBF: 100000 hours

Model

SIL-INDSW8P1G6SFP

Port description

8 x electrical port (RJ45) 1000BASE-T

6 x optical port (SFP) 1000BASE-X

Optical

port characteristics

Interface type: SFP

Speed: 1000Mbps

Wavelength: Single-mode fiber: 1310nm/1550nm

       Multimode fiber: 850nm

Core standard: single mode 8.3μm, 8.7μm, 9μm, 10μm

           Multimode 50μm, 62.5μm, 100μm

Electrical

port characteristics

Interface type: RJ45

Rate: 10/100/1000Mbps adaptive

Duplex mode: full/half duplex

Connection mode: MDI/MDIX automatic flip

Protocol standard

IEEE802.3i 10 BASE-T，

IEEE802.3u 100 BASE-TX

IEEE802.3ab 1000 BASE-T

IEEE802.3z 1000 BASE-LX

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

IEEE802.3x Flow Control IEEE802.3az EEE

Exchange performance

Backplane bandwidth: 28Gbps

Packet forwarding rate: 20.83Mpps

MAC address: 8K

Packet buffer: 2Mbit

Forwarding mode: store and forward

power supply

Input power: DC 48~56V (6PIN Phoenix terminal), 1*DC interface

Power consumption: full load <6W (not including PoE)

Dual power supply: support

Redundant protection: support

Reverse connection protection: support

Mechanical structure

Shell material: metal

Protection level: IP40

Size: 153*130*44mm (Excluding connector protruding part and DIN rail assembly size)

Weight: 0.85Kg

Installation method: DIN rail installation

surroundings

Working temperature: -40℃~75℃

Storage temperature: -40℃~85℃

Relative humidity: 5%~95% RH (non-condensing)

Industry Standard

EMI: CE/FCC

EMS: IEC61000-4-2 (ESD-static)

IEC61000-4-3 (RS-radiation anti-interference)

IEC61000-4-4 (EFT-fast burst)

IEC61000-4-5 (Surge-lightning protection)

IEC61000-4-6 (CS-conducted anti-interference)

Machinery: IEC60068-2-6 (vibration)

IEC60068-2-27 (Shock)

IEC60068-2-32 (free fall)

Industry: IEC61000-6-2

Railway: EN50155, EN50121-4

Transportation: NEMA TS-2

Warranty

Warranty period: 3 years (can be extended)

Hardware watchdog

stand by

PoE management

Support PoE total power settings

Support single port PoE power settings

Support port PoE power supply priority design

Support custom PoE power supply time

Loop protection

Support ERPS ring protection

Support 50MS loop since healing

Support BPDU protection, root protection and loopback protection

Link aggregation

Support link aggregation (LACP)

Support static polymerization, dynamic aggregation

Support for maximum support for 8 aggregation groups

Support for source port, source MAC, destination MAC, source IP, destination IP, source IP port, destination IP port

Summing tree (STP)

Support STP (IEEE 802.1D),

Support RSTP (IEEE 802.1W)

Support edge port

Support spanning tree BPDU packet statistics

Support root bridge protection, TC protection, BPDU protection, BPDU filtering

DHCP

Support DHCP server

Support DHCP Snooping

Support Option82;

VLAN

Support 802.1q VLAN

Maximum support 4094

Support QinQ

Support Mac VLAN

Support GVRP protocol

Support GMRP protocol

Support 1: 1 and N: 1 VLAN mapping function

Support three port modes: Access, Trunk, and Hybrid, Translation, QinQ

Including the foundation in Qinq and flexible in QinQ

Security feature

Based on user grading management and password protection

Support for port numbers, IP addresses, MAC addresses limit users access

Support HTTPS, SSH V1 / V2, SSL V1 / V2

Support IP-Mac-Port-VLAN binding

Support ARP protection, IP source protection, DOS protection

Support DHCP Snooping, DHCP Attack Protection

Support 802.1x certification,

Support port security, port isolation

Support port alarm

Access Control (ACL)

Supports L2 (Layer 2) ~ L4 (Layer 4) package filter function

Support port mirror, port redirection, flow rate, QoS heavy mark

Support Mac ACL

Support IP ACL

Service quality (QoS)

Support 8 port queues

Support port priority, 802.1p priority, DSCP priority

Support SP, WRR, WFQ priority scheduling algorithm

Multicast

Support fast leaving mechanism

Support static multicast group, dynamic multicast group

Support IGMP Snooping

Support multicast filtering, packet statistics, unknown multicast discard

Management

and maintenance

Support Web network management (HTTP, HTTPS, SSL V3, TLS V1)

Support CLI (Telnet, SSH V1 / V2, local serial port)

Support SNMP V1 / V2 / V3, compatible public MIBS

Support LLDP, RMON

Support SNTP

Support CPU monitoring, memory monitoring

Support system log, hierarchical warning, support remote log server

Support port alarm

Support HTTP software upgrade, configuring backup import

Support TFTP upgrade

SIL-INDSW8P1G6SFP

8*10/100/1000M auto-negotiation RJ45 ports + 6*1000M SFP fiber slots
