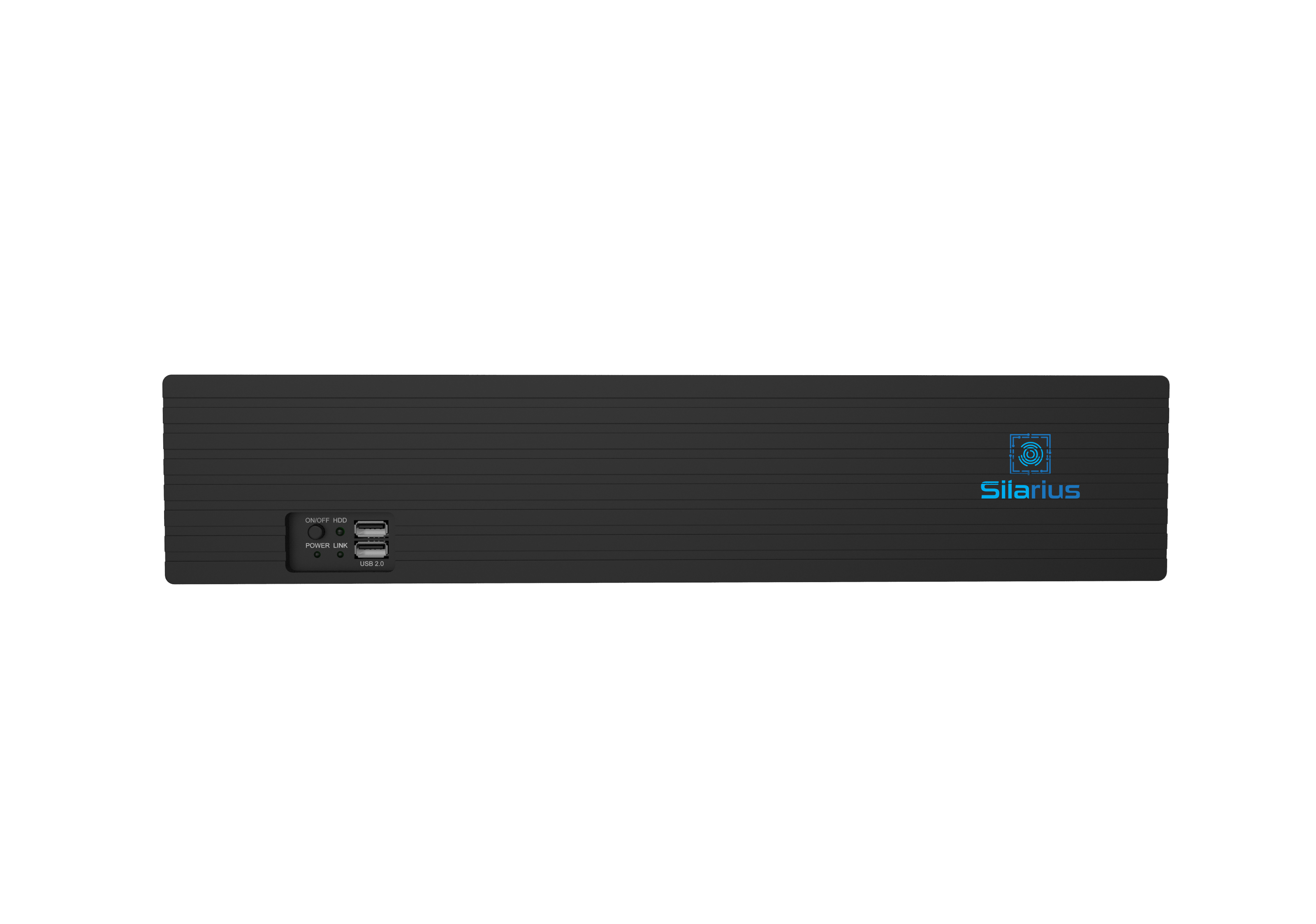

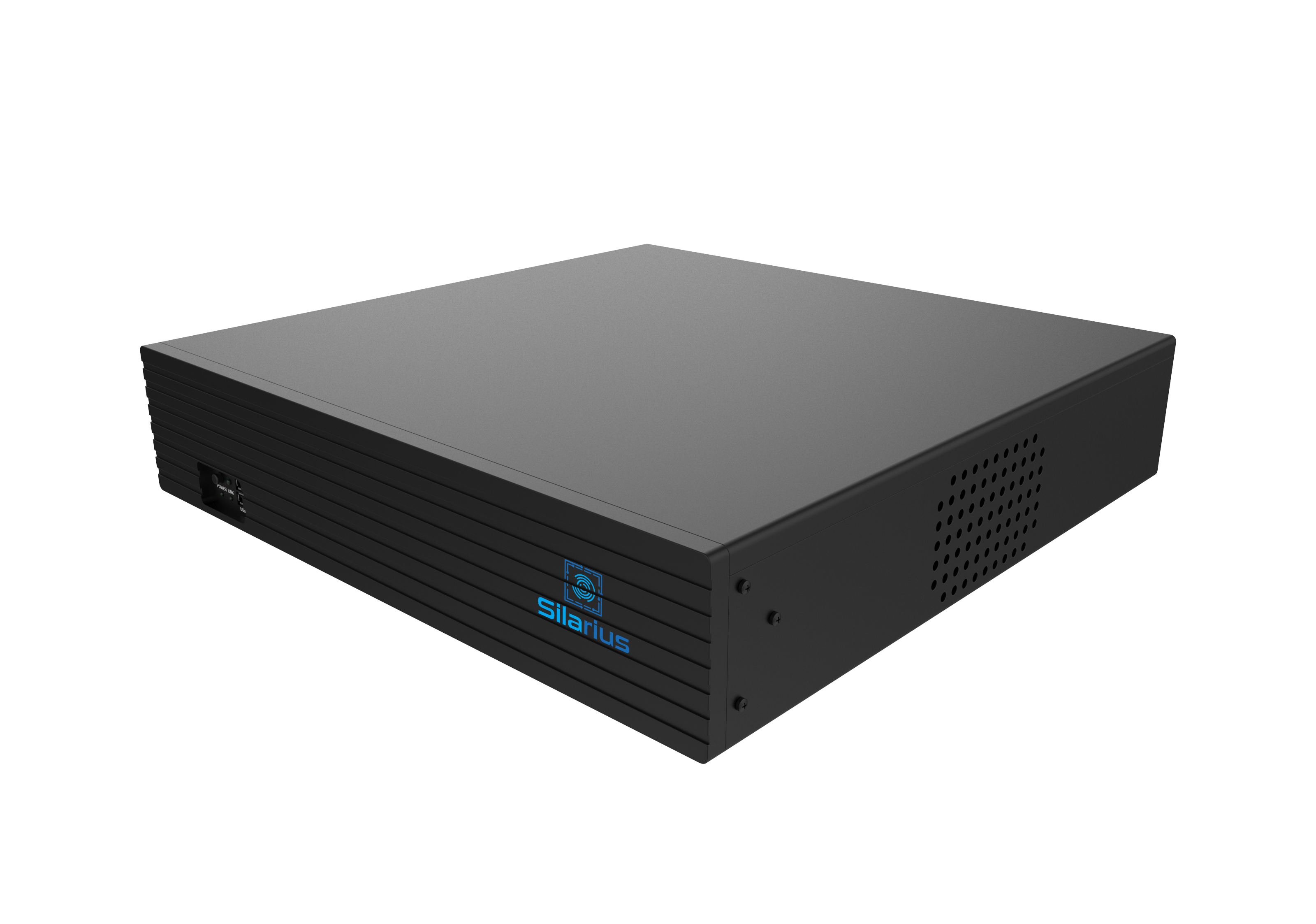

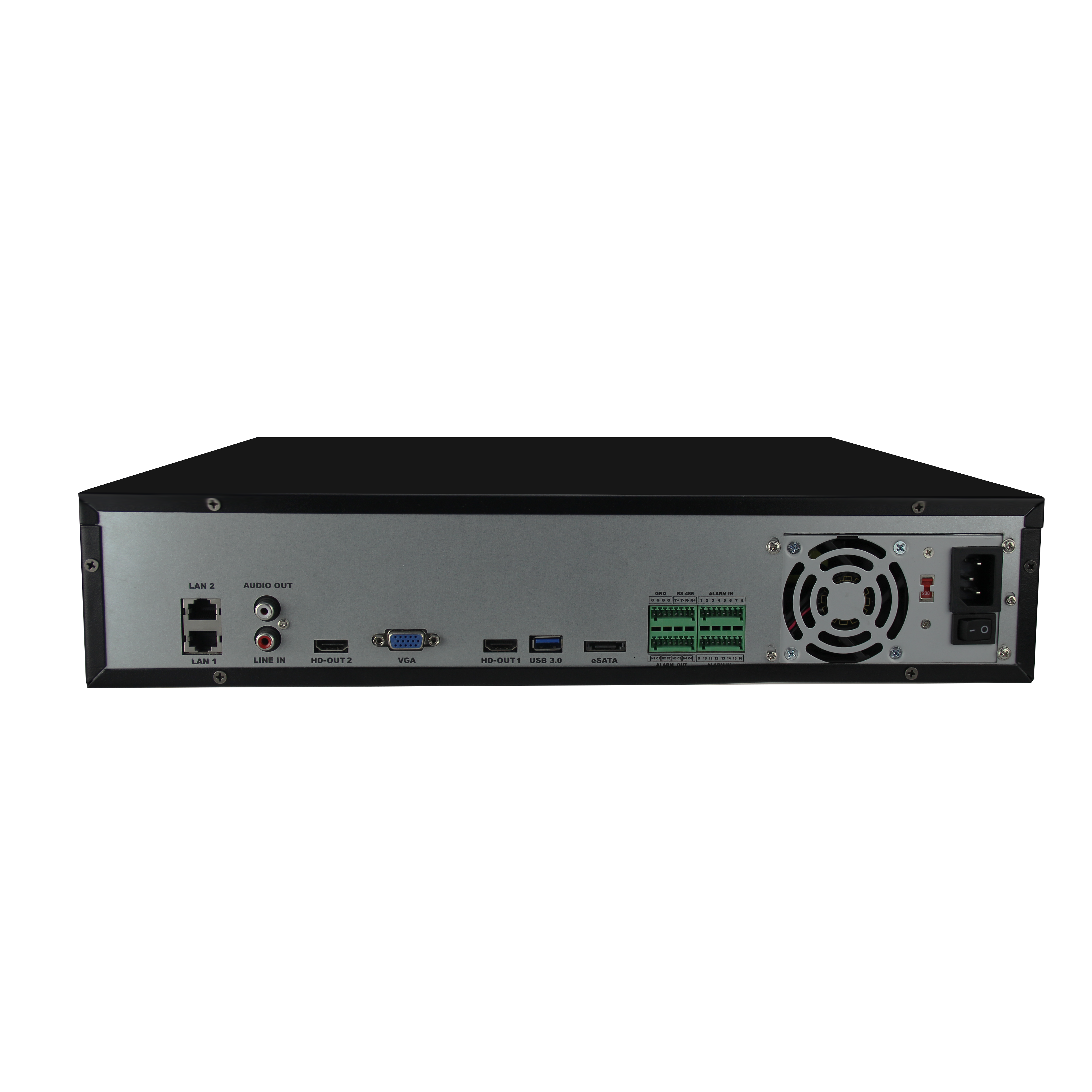

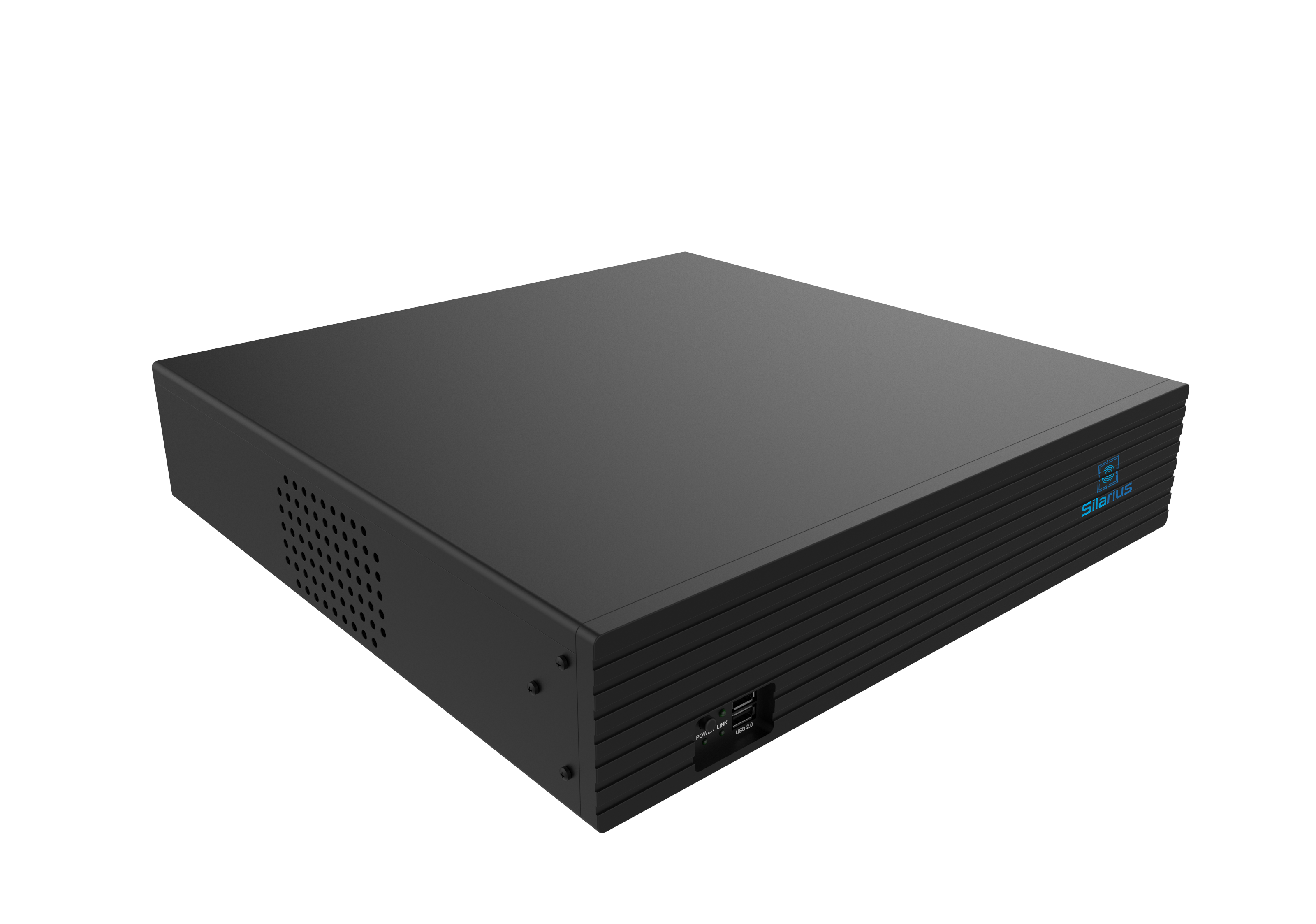

Silarius Pro Series SIL‐NVR64CH8 64CH 4K NVR Gigabit, 8TB HDD

System
Main Processor: ARM Cortex A17 Quad-core Processor
Operating System: Embedded LINUX

Video
Input: 64CH(4000×3000, 3840×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output: 1 VGA, 2 HD

Audio
Input: 1 Port RCA
Output: 1 Port RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Audio Compression: AAC,G711u, G711a, ADPCM_DVI4

Intercom : support (two-way)

Alarm
Sensor Input: 16
Output: 4
Motion Detection: 64 Channel, MD Zones: 396 (22 × 18)
Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

Display
HD Output1: 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HD Output2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Display Split: 64CHxD1/36CHxD1/25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k/1CHx12MP
Digital Zoom: YES
OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording
Video Compression: H265/H264/H265+/H264+
Resolution:
12MP(4000×3000),4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),
3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record Rate: PAL:12MP@29×25fp,4k@35×25fp,5MP@58×25fp,4MP@64x25fp,3MP@64×25fp,1080P@64×25fp, 960P@64×25fp,720P@64×25fp,
D1@64×25fp
NTSC:12MP@29×30fp,4k@35×30fp,5MP@58×30fp,4MP@64×30fp,3MP@64×30fp,1080P@64×30fp, 960P@64×30fp, 720P@64×30fp,
D1@64×30fp
Record Mode: Manual\Timer\Motion Detection\Smart Event

Playback & Backup
Local Sync Playback: 3CH 12MP@15fps, 4CH 4K@30fps, 6CH 5MP@30fps, 8CH 4MP@30fps, 10CH 3M@30fps,
16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps,16CH D1@30fps
Decode Capability: 4CH 4K(3840×2160)@30fps
Remote Sync Playback: YES
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip
Backup Mode: USB Device/Network

Network
Interface: 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
Incoming Bandwidth: 300MB
Network Functions:TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif Version: onvif S,onvif T
Web Browser: Edge,IE8-11, Google Chrome , Firefox ,Safari
CMS Software Support Windows 7/ Windows 8/Windows 10/MAC OS
Cloud Support(P2P) Yes
Smart Phone: iPhone, iPad, Android, Android Pad
POE: /
WIFI /

Storage
Interface Type: 8 SATA Hard Disk Interface (3.5" SATA)
Capacity: Up to 48TB capacity
eSATA: 1 eSATA interface

General
Language: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese,Janpanese
USB Interface: 2 USB 2.0 Interfaces ,1 USB 3.0 Interface
RS485: 2 Port
Power Supply: AC 115V to 230V,3A
Working Environment: -10~55℃/10~90%
Dimension(W×D×H): 2U, 440mm×450mm×95mm
Weight: 9.8Kg（without HDD）
