Silarius Pro Series SIL-NVR4K16 4K NVR 16CH ,8CH POE, No HDD

System
Main Processor: ARM Cortex A7 Processor
Operating System: Embedded LINUX

Video
Input :16CH (4096×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output: 1 VGA, 1 HD

Audio
Input: 1 Port RCA
Output: 1 Port RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Audio Compression: standard G711u, G711a, ADPCM_DVI4

Alarm
Sensor Input: 4
Output: 1
Motion Detection: 16 Channel, MD Zones: 396 (22 × 18)
Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips

Display
HD Output1: Resolution:4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HD Output2: /
VGA: Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split:16CHxD1/9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital Zoom: YES
OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording
Video Compression: H265/H264/H265+/H264+
Resolution: 4k(4096×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),
1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record Rate: PAL :4k@10×25fp,5MP@14×25fp,4MP@16x25fp,3MP@16×25fp,1080P@16×25fp, 960P@16×25fp,720P@16×25fp, D1@16×25fp
NTSC: 4k@10×30fp,5MP@14×30fp,4MP@16×30fp,3MP@16×30fp,1080P@16×30fp, 960P@16×30fp, 720P@16×30fp, D1@16×30fp
Record Mode: Manual\Timer\Motion Detection\Smart Alarm

Playback & Backup
Local Sync Playback: 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
Decode Capability: 1CH 4K(3840×2160)@30fps
Remote Sync Playback: YES
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm
Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom
Backup Mode: USB Device/Network

Network
Interface: 8 x RJ45 (10M/100M Adaptive Ethernet Interface)+1xRJ45 10M/100M/1000M Adaptive Ethernet Interface
Incoming Bandwidth: 100MB
Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
Onvif Version: Support Onvif 2.8
Web Browser: IE8‐11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software Support Windows 7/ Windows 8/Windows 10/MAC OS
Cloud Support(P2P): Yes
Smart Phone iPhone, iPad, Android, Android Pad

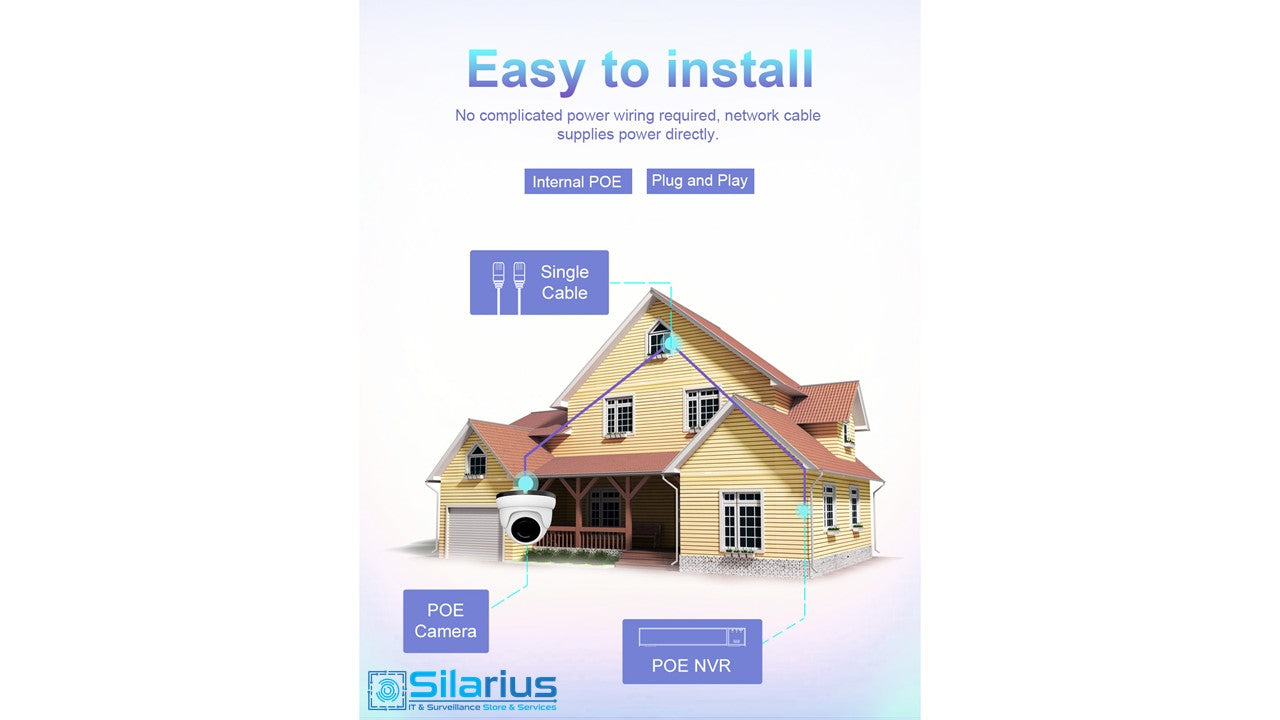

POE: 8 x Independent 100Mbps POE Network Interfaces(Output PowerAT mode 30W, AF mode 15W per Interface),
45/78 line order, Total Power Output≧100W, Support Plug and Play, Support network cable extended mode Max. 250M
WIFI :/

Storage
Interface Type: 1 SATA Hard Disk Interface (2.5"/3.5" SATA)
Capacity: Up to 8TB capacity
eSATA: /

General
Language: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese
USB Interface: 2 USB 2.0 Interfaces
RS485: /
Power Supply: DC 52V/1250mA ≤10W (Without Hard Disk and POE)
Working Environment: ‐10~55℃/10~90%
Dimension(W×D×H): 260*215*43(mm)
Weight: 2.0KG (without HDD)
