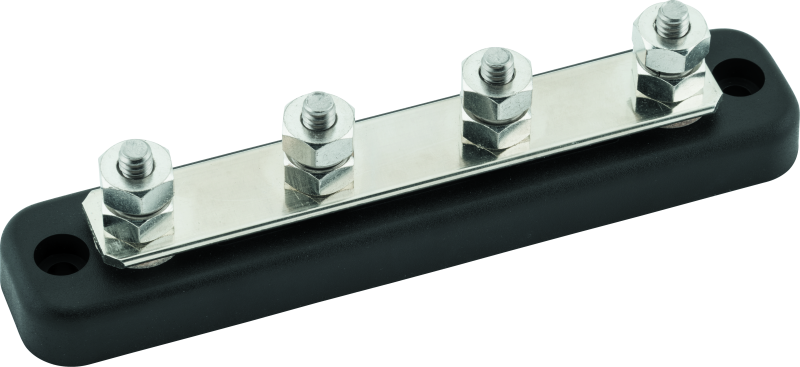

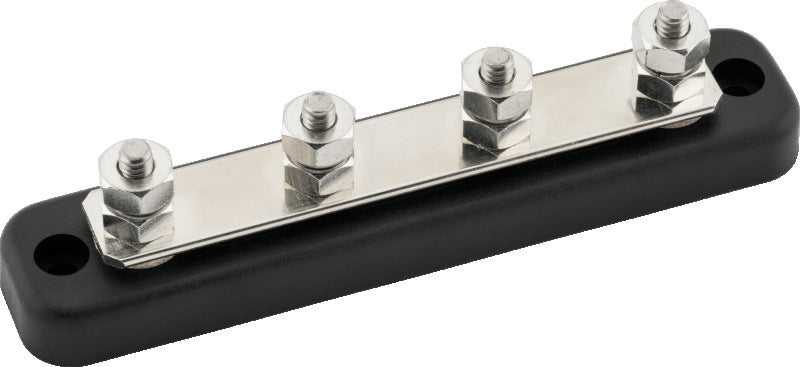

QuadBoss Bus Bar 150 Amp for Powersports Battery Connections

The QuadBoss Bus Bar Part Number 568102 is designed to simplify and secure multiple connections to your vehicle's battery terminals. Crafted from tin-plated solid copper, this bus bar ensures maximum electrical conductivity and resistance to corrosion, providing a reliable power distribution point for various accessories. Its robust construction and high-quality materials make it suitable for demanding powersports applications, offering a safe and efficient way to manage electrical connections.

This bus bar features a stud design that offers direct contact with the terminal, minimizing resistance and ensuring a solid electrical connection. The stainless steel studs enable high-torquing, which enhances contact quality and reduces potential electrical issues under load. The base is made from flame-retardant ABS plastic, adding an extra layer of safety by preventing the spread of flames in case of electrical faults. With a maximum voltage rating of 300 volts AC and 48 volts DC, along with continuous current capacity of 130 amps AC and 150 amps DC, this bus bar is well-suited for a variety of power distribution needs in powersports environments.

Measuring approximately 6 inches by 1.25 inches by 1.4 inches, the bus bar is compact yet capable, making it easy to install in tight spaces. It includes a cover for added protection against dust, moisture, and accidental contact, ensuring durability and safety during operation. Whether you're upgrading your electrical system or establishing a new power distribution point, the QuadBoss Bus Bar 150 Amp provides a dependable and efficient solution that meets the demands of modern powersports vehicles.

Features:

• Made of tin-plated solid copper for maximum conductivity and corrosion resistance

• Stud design provides direct terminal-to-bus contact for low-resistance connections

• Stainless steel studs allow high-torquing for optimal electrical contact

• Designed for electrical power distribution in powersports applications

• Base constructed from flame-retardant ABS plastic for safety

• Maximum voltage rating of 300 volts AC and 48 volts DC

• Continuous amperage capacity of 130 amps AC and 150 amps DC

• Compact size measuring approximately 6 inches by 1.25 inches by 1.4 inches

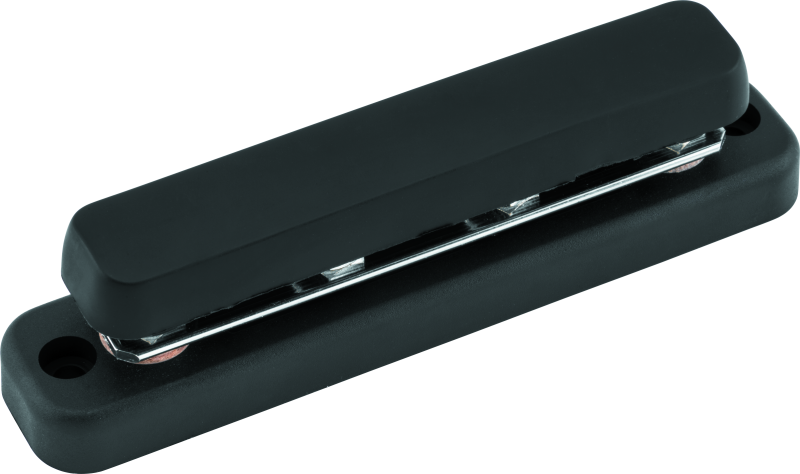

• Includes a protective cover for enhanced durability and safety

ATTRIBUTES: false, false, false, Unknown, powersports, N/A, false, t

BRAND: QuadBoss

MPN: 568102
