PS Shallow-Mount Water Resistant 10" Subwoofer | 500W RMS Single Voice Coil 4-Ohm

DS18 PSW10.4S 10" Water Resistant Shallow Subwoofer 1000 Watts 4 Ohm SVC

There’s always space for bass with the PSW10.4S!

The PSW10.4S mounts in depths as small as 3.5” and can be utilized in both ported and sealed boxes for great bass in a tight area. The high-quality push terminals on the PSW series subwoofers also make connection to your speaker wire and amp extremely easy.

This sub handles 500 W RMS and 1000 W MAX Power with a 84 dB sensitivity: high sensitivity for a shallow mount sub allowing this light subwoofer to reproduce heavy clear bass!

The PPI Molding on the cone used by the PSW10.4S is also water resistant, making this speaker perfect for your bike, off-road or marine vehicle. The steel basket gives this speaker even stronger resistance against shock and vibration.

This sub comes in 4 Ohms Single Voice Coil configuration so if wired appropriately it’s insane power will bring all your music to life!

Highlights

• DS18's PSW shallow subwoofer series are known for producing great bass without sacrificing much space.
• Rubber surround design fortifies this subwoofer and helps it push out cleaner and clearer bass
• Shallow mount size allows this sub to fit in compact places and requires less box space than other subs.
• High 9.5mm Xmax which produces full and deep bass with the correct box spec.

Great For

• Car Audio
• Bike Audio
• Marine Audio
• Off-Road Audio
• Powersports Audio

Technical Details

              Download PSW10.4S Product Manual

SPECIFICATIONS
Nominal Diameter	10” / 254 mm
Nominal Impedance	4 Ohms
RMS Power Handling	500 W
MAX Power Handling	1000 W
Sensitivity (1w/1m)	84 dB
Frequency Response	20 - 800 Hz
Recommended Lo Pass Crossover	90 Hz
MOTOR
Voice Coil Diameter	2.5" / 63.5 mm
Voice Coil Former Material	Aluminum
Winding Material	Copper
Cone Material	Water Resistant PPI
Surround Material	Rubber
Basket Material	Steel
Basket Color/Finish	Matt Black
Magnet Material	Ferrite
Magnet Weight	58 Oz
Displacement Volume	0.8L / 0.028ft3
RECOMMENDED ENCLOSURES
Sealed Internal Volume	14.2L / 0.5ft3
Sealed Box Output Response	44 Hz

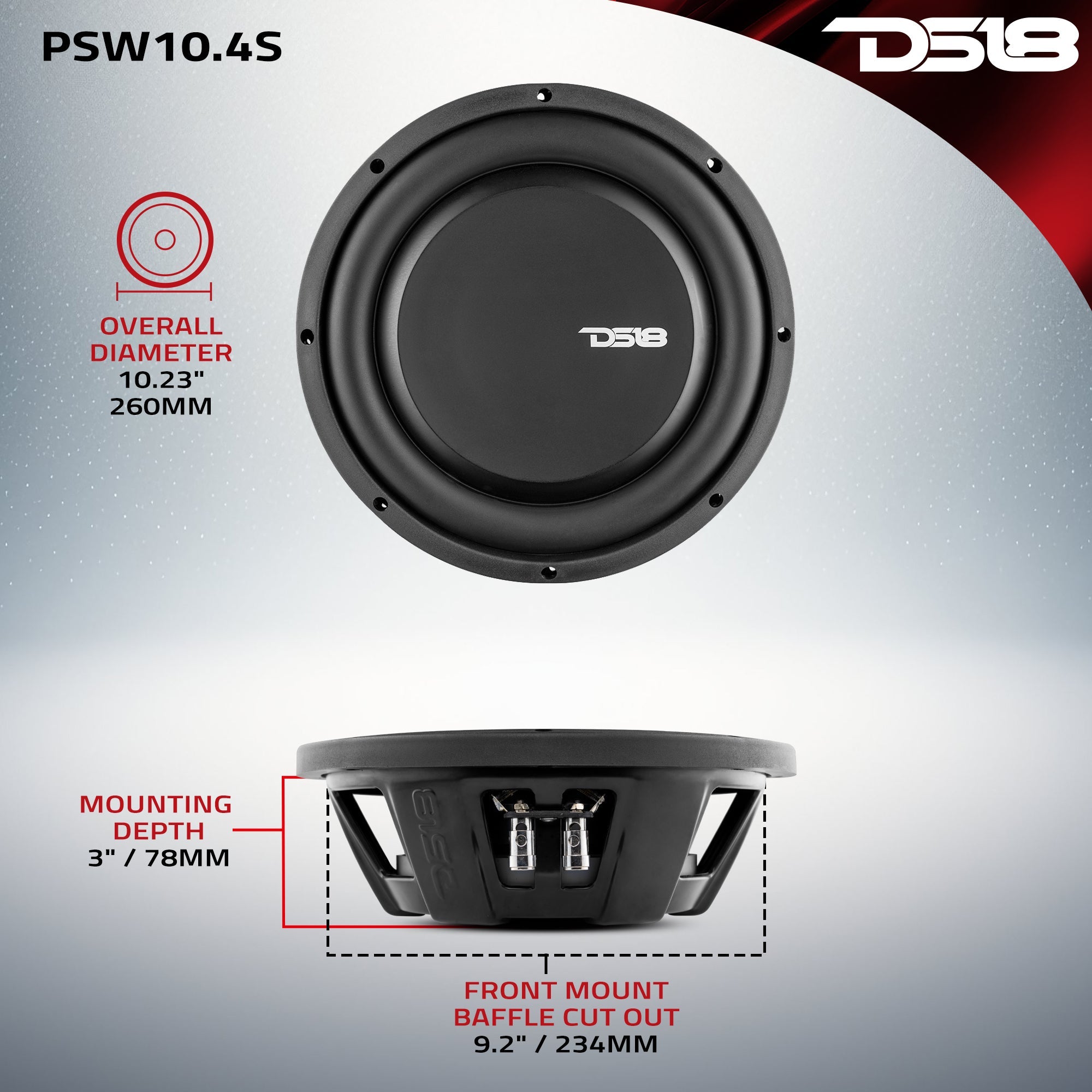

MEASUREMENT
Overall Diameter	10.23" / 260 mm
Overall Depth	3.6" / 92 mm
Front Mount Baffle Cutout	9.2" / 234 mm
Mounting Depth	3" / 78 mm
Motor Diameter	6.5" / 165 mm
