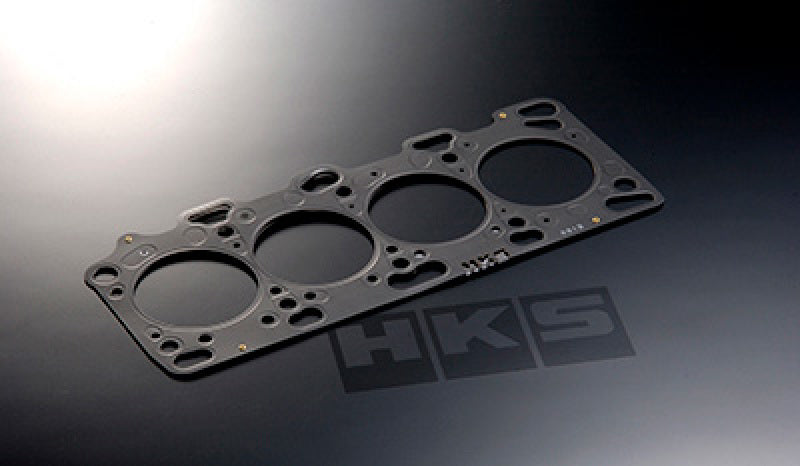

HKS Metal Head Gaskets are engineered to resist severe levels of heat that is often generated from high horsepower motors. Turbo charged motors running high boost are amoung the hottest.
All HKS metal head gaskets are constricted with multiple steel layers and is coated with a special fluorine rubber to provide optimal sealing bettwen the top and bottom end of the motor. HKS offers different thickness and sizes to accommodate standard and certain oversized cylinder bores.
Specifications
| Engine | 4A-G(Z)E |
| Thickness (mm) | 1.6 |
| Compression Ratio | ?=9.0 |
| Bore | ?82 |
NOTE: COMPRESSION RATIO'S LISTED ARE FOR COMPARISON PURPOSES ONLY, ACTUAL RATIO ACHIEVED MAY VARY DEPENDING ON APPLICATION.
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1983 - 1991 | Toyota | Corolla | DLX, Base, SR5 |
| 1987 - 1988 | Toyota | Corolla | FX, FX16 GTS, FX16 |
| 1988 - 1991 | Toyota | Corolla | GTS, DLX All Trac |
| 1984 - 1991 | Toyota | Corolla | LE |
| 1985 - 1986 | Toyota | Corolla | LE Limited |
| 1985 - 1987 | Toyota | Corolla | Sport GTS |
| 1984 - 1987 | Toyota | Corolla | Sport SR5, Sport DLX |
| 1988 - 1990 | Toyota | Corolla | SR5 All Trac |
| 1988 - 1989 | Toyota | MR2 | Super Charged, GT |
