HKS S-Type Oil Cooler Kit FR-S BRZ

• Core: 15 Row
• Hose Size: #10
• Dimensions: 200x200x32mm

New type of HKS Oil Cooler Kit for 86/BRZ is released. This new kit is able to install to the inner side of the fender!! Recommended for vehicles tuned with GT Superchargers or upgrade turbines, and circuit use that requires precise oil temperature maintenance.

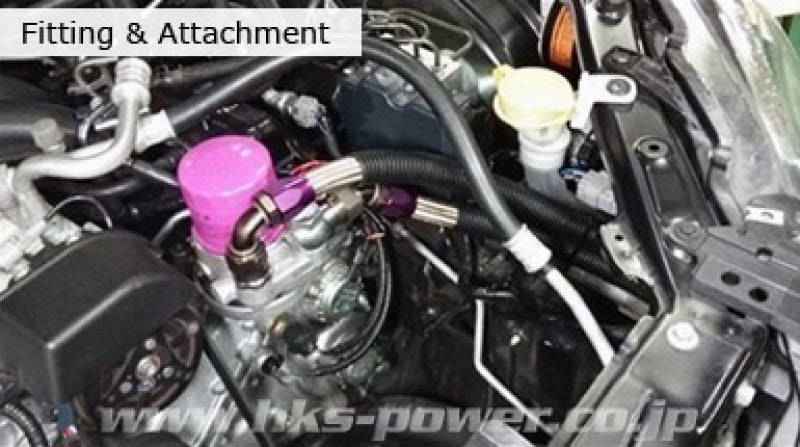

• Newly designed single tube type fitting. Engine dyno tests and experience from D1 racing found that the oil pressure of the FA20 engine is extremely high compared to most conventional mass-produced engines. (Max oil pressure: over 12kgf/cm2) New single tube fitting withstanding the high oil pressure was designed and included in this kit.

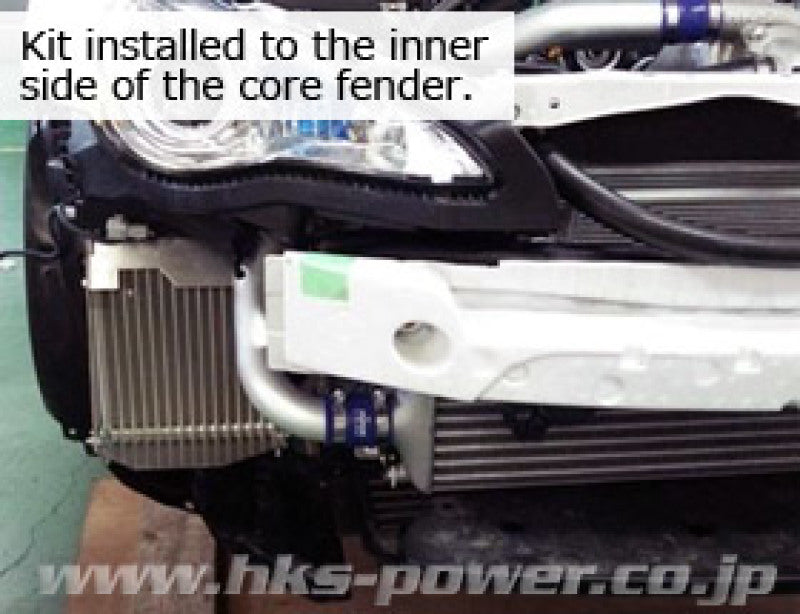

• Installing the core to the inner side of the fender enables a vehicle tuned with GT Supercharger to install a front mount type intercooler kit. Also, a special air guide is included to provide higher cooling performance; this kit is also recommended for NA vehicles who enjoy circuit driving.
• Special spacer and center bolt are included so the kit parts do not come in contact with the brim on the oil filter installation position when installing the oil cooler attachment.
