DS18 ZR112LD-PKG Bass Package 12" Subwoofer In a Ported Box With Amplifier and Amplifier Installation Kit - ZR112LD + ZR1000.1D Amp + AMPKIT4

DS18 ZR112LD-PKG Bass Package 12" Subwoofer In a Ported Box With Amplifier and AMPKIT - ZR112LD + ZR1000.1D Amp + AMPKIT4

Looking for that perfect bass box, subwoofer, and amp package but are overwhelmed by all the options? We have made it easy with our loaded subwoofer package, the ZR112LD, combined with our ZR1000.1D and easy to use 4 gauge installation kit!

This is a prefabricated box that comes with one of our best selling subwoofers. Included is a beautiful carpeted box with DS18 designs tuned to 29 HZ. The box is constructed of thick 3/4 MDF for great sound and acoustical resonance. The subwoofer included is the very popular ZR12.2D that is a dual voice coil 2 ohm subwoofer wired in parallel for a final nominal impedance of 1 ohm that will require 800 W RMS and 1600 W MAX .

This loaded box is a great solution to hard hitting heavy bass for all to enjoy. To power this package, we use the ZR1000.1D amplifier that pushes out 1000 watts RMS in this configuration maximizing your box and subwoofers full potential.

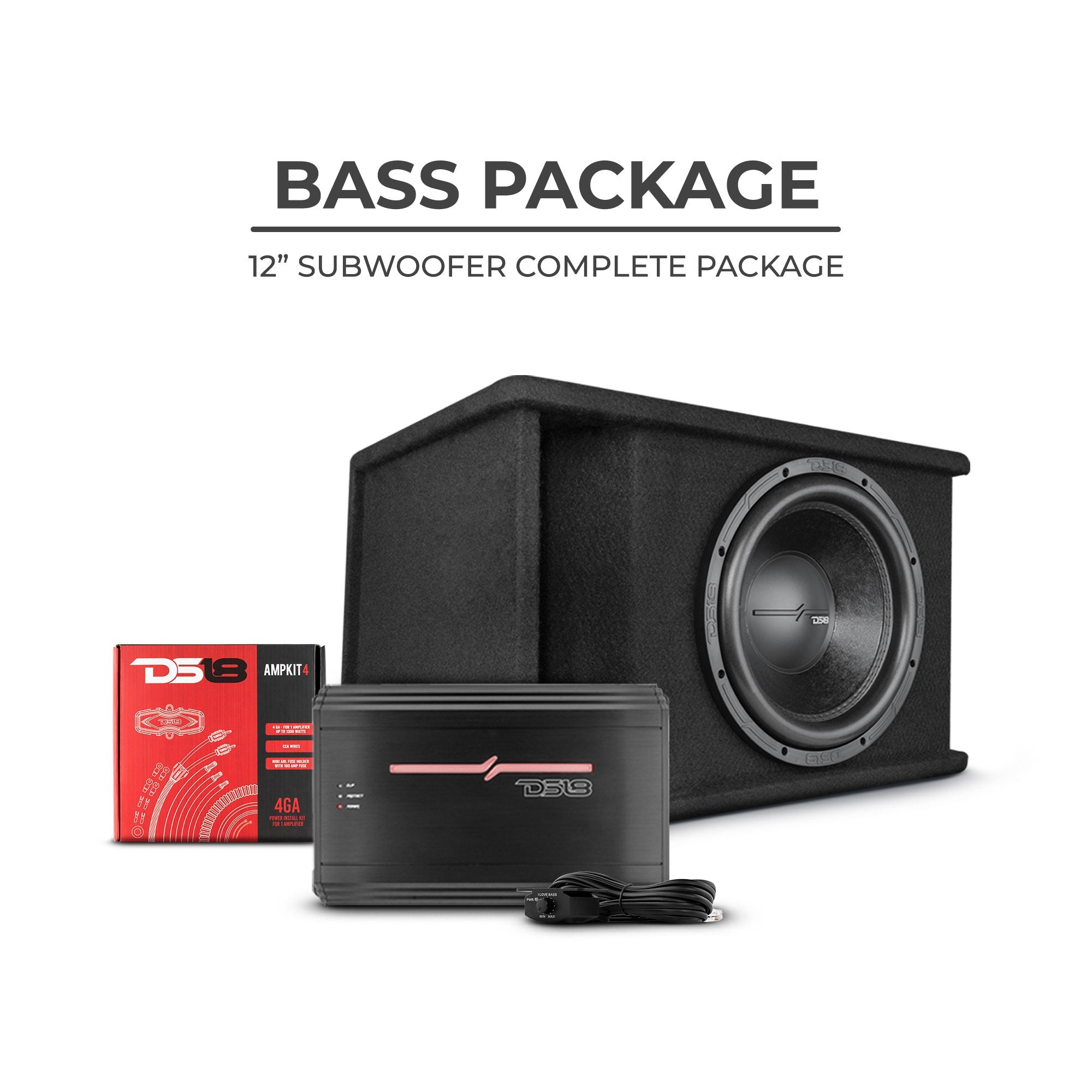

Package Includes:

1 x ZR112LD - Bass Package 1 x ZR12.2D 12" Subwoofers In a Ported Box 1600 Watts

1 x ZR1000.1D -  Class D 1-Channel Monoblock Amplifier 1000 Watts RMS

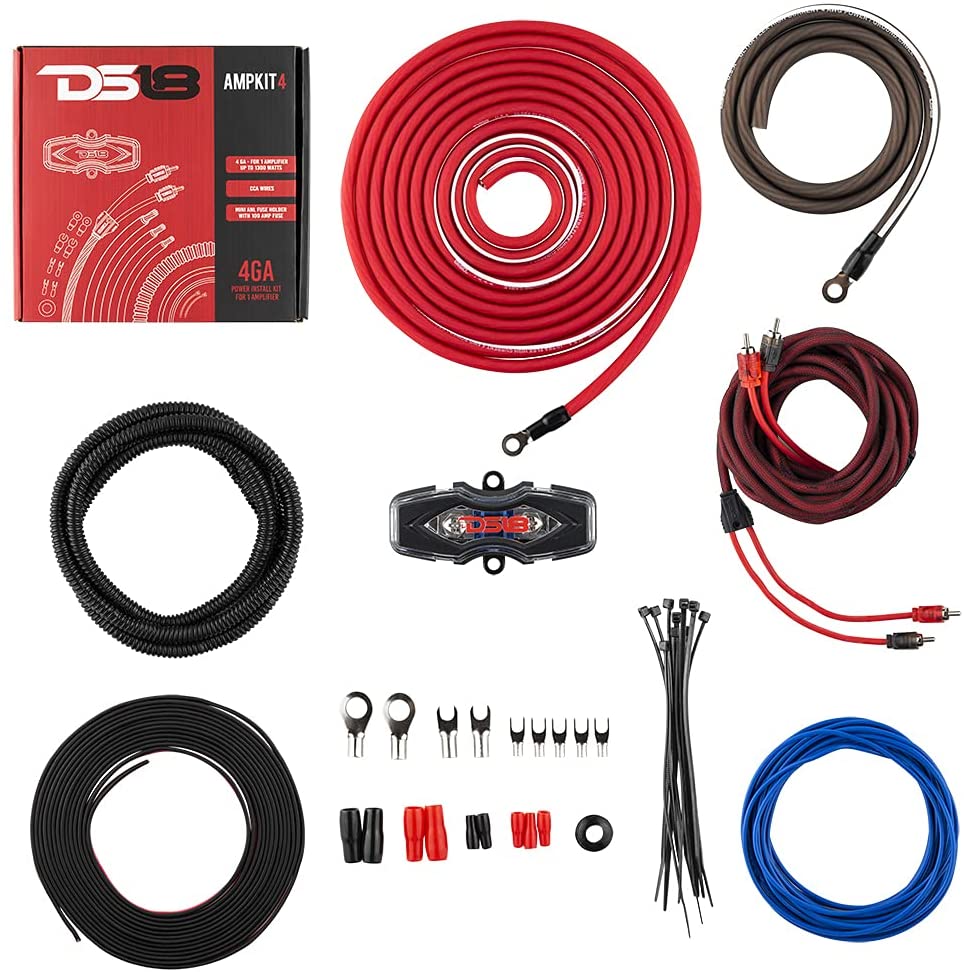

1 x AMPKIT4 - 4-GA Installation Kit For Car Amplifiers

Highlights

• The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass.
• One ZR12.2D 12 inch subwoofer that will give you the cone area to push out great sounding bass without a lot of power requirements.
• ZR1000.1D amplifier producing 1000 watts RMS that will maximize your bass output to the fullest.
• An amp installation kit to finish your build.

Good For:
Car Audio
Pro Audio
Home Solutions
Hi-Fi Installation
DIY Projects

Technical Details

                                              ZR112LD Product Manual

                                             ZR1000.1D Amp Product Manual

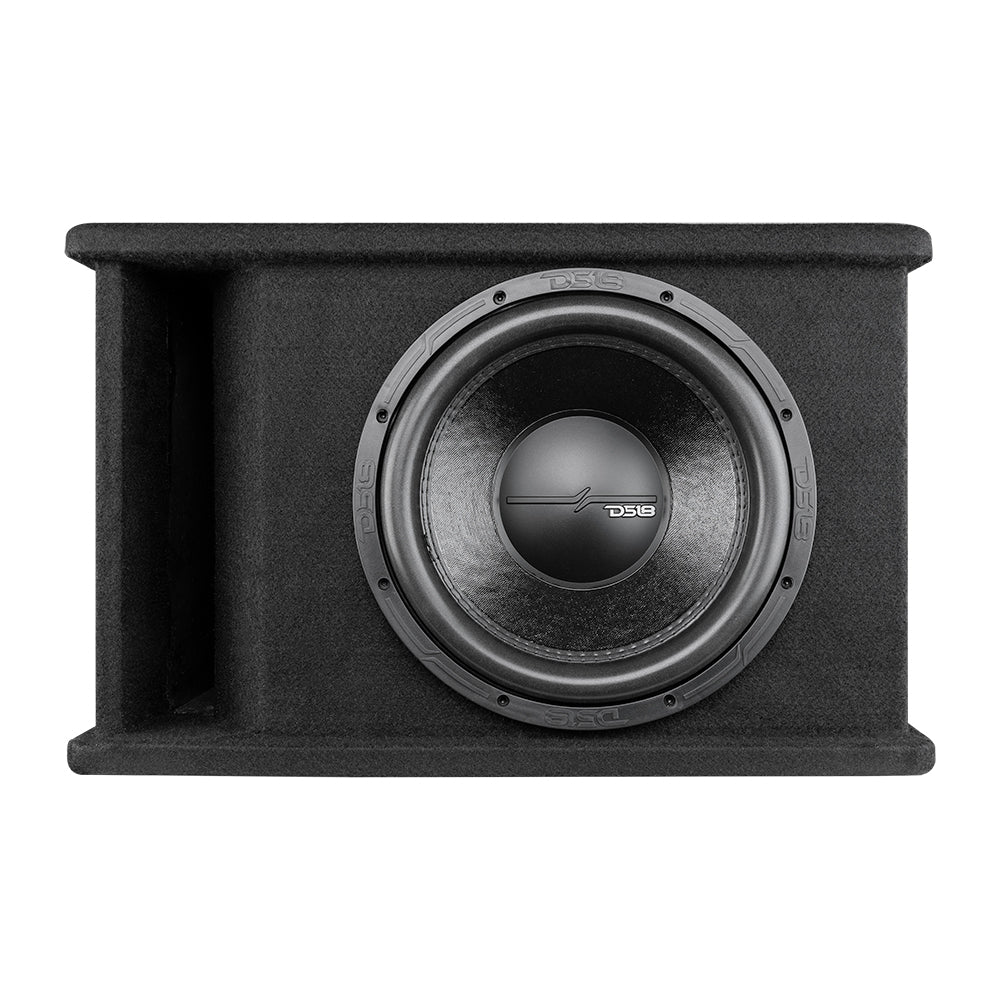

ZR112LD Subwoofer In a Ported Box

SPECIFICATIONS
Speaker Type / Size	Single 12" / 316mm
Total Impedance	1 ohm
Total RMS Power Handling	800w
Total MAX Power Handling	1600w
Sensitivity (1w/1m)	84 DB
Frequency Response	20-200 Hz
Recommended Lo Pass Crossover	70Hz
MOTOR
Voice Coil Diameter	2.5" / 61.6mm
Voice Coil Former Material	Aluminum
Winding Material	Copper
Cone Material	Non-Pressed Paper
Dust Cap Material	PPI
Surround Material	Foam
Basket Material	Steel
Magnet Material	Ferrite
Magnet Weight	100 Oz
BOX SPECIFICATIONS
Internal Volume	79.3L / 2.8 ft3
Port Tune	29 Hz
Load Configuration	Ported Box
Box Type	Single 12”
Box Material	3/4" (19mm) MDF
Finish Material	Black Carpet
Logo	Red Stitched
-3Db Dropping Point	24 Hz
MEASUREMENT
Height	14.48" / 36.8 cm
Width	23.14" / 58.8 cm
Depth 1	17.71" / 45 cm
Depth 2	19.68" / 50 cm

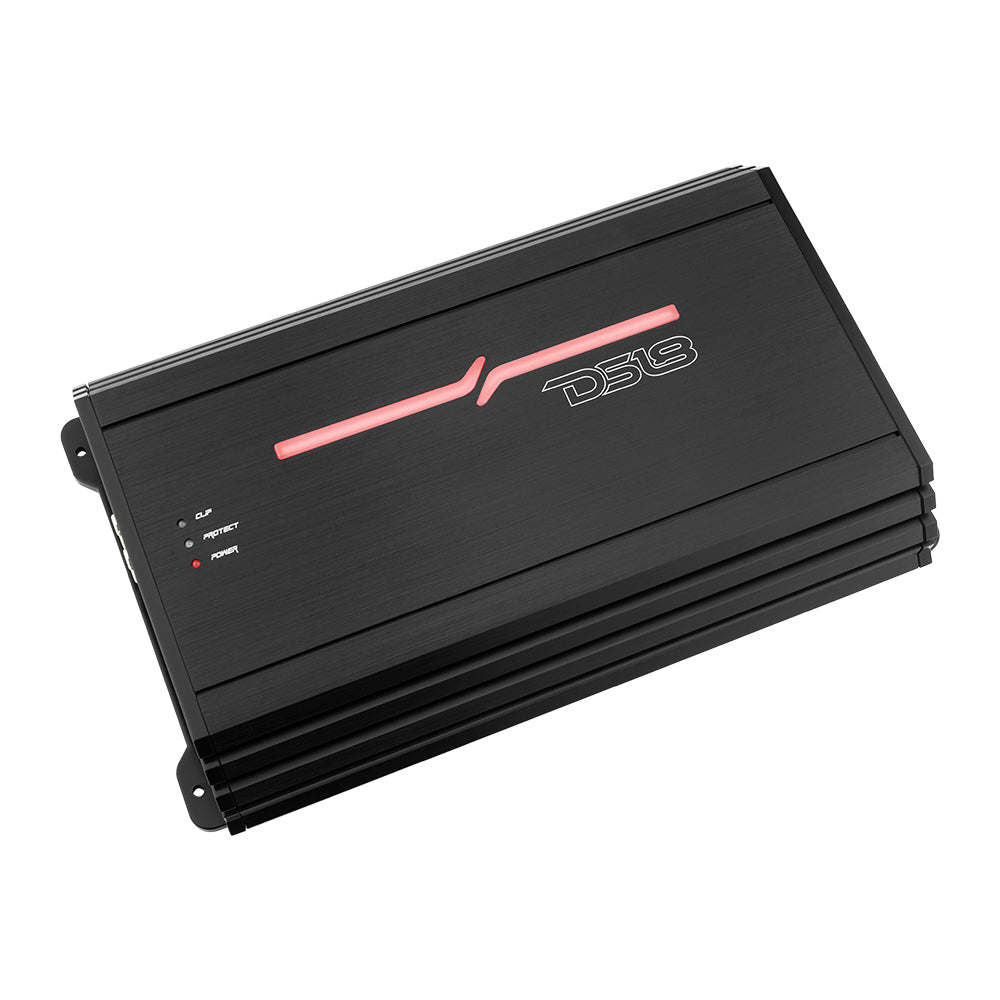

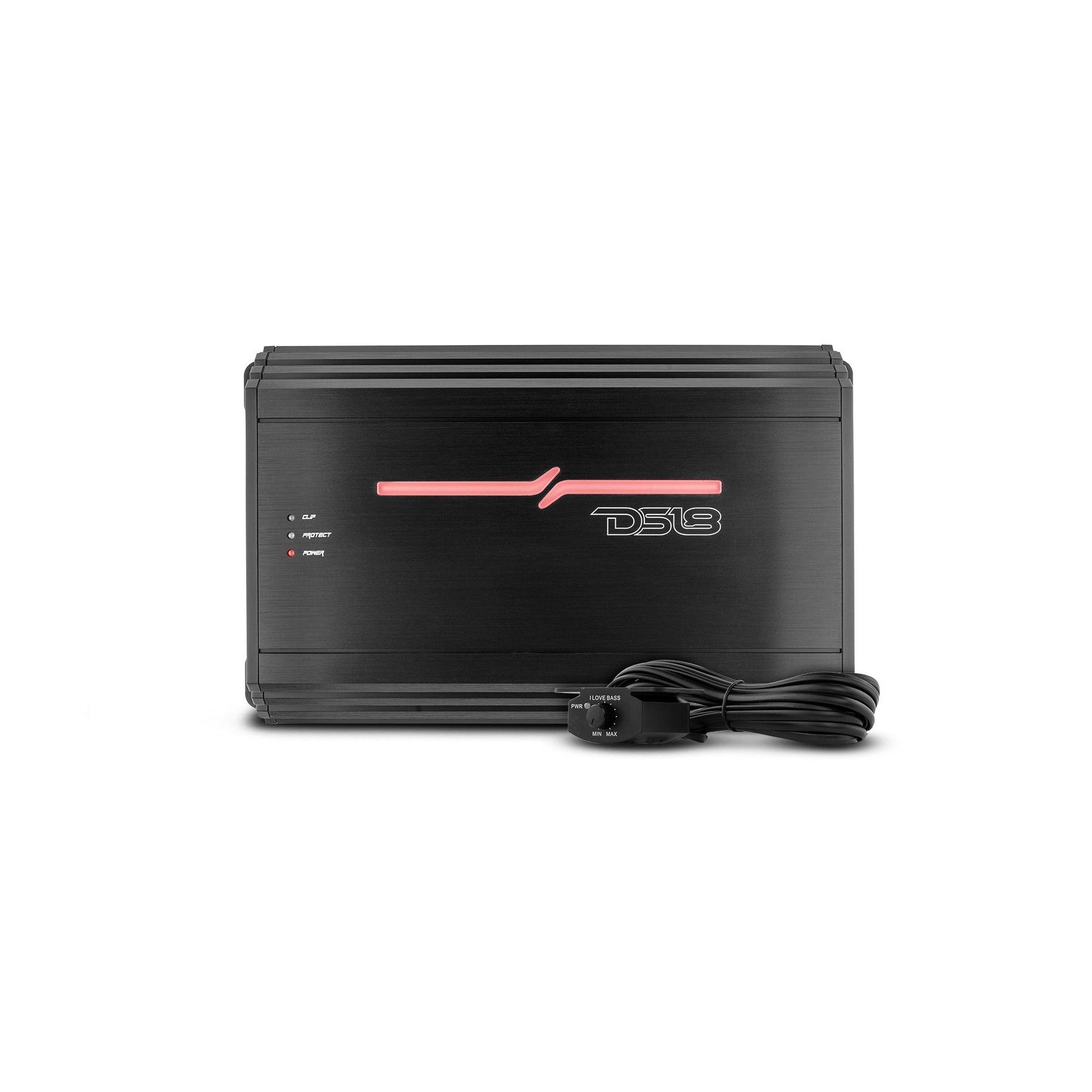

ZR1000.1D Monoblock Amplifier

POWER
Total Watts (Peak)	3000W
RMS Power @ 4 ohm	380W
RMS Power @ 2 ohm	650W
RMS Power @ 1 ohm	1000W
AUDIO
Frequency Response	10-220Hz
Signal to Noise Ratio	>95dB
Efficiency @ 4ohm	80%
Damping Factor	220
Input Impedance	20K ohm
Channel Separation	N/A
Total Harmonic Distortion (THD)	0.01%
Low Level Input Range	0.2-6V
High Level Input	No
Selectable X-Over	LPF Fixed
X-Over Filter Range	40-180Hz
Bass Boost Range	0-12db
Bass Boost Frequency	30-80hz
Infrasonic Filter	10-50hz
Phase Selector	No
FEATURES
Amplifier Class	Digital
Amplifier Type	Monoblock Subwoofer
Number of Channels	1
Minimum Impedance	1 ohm
Led Indicator	clipping/protect/power
Power Input Terminal Size	4ga
Fuse Size	100A
Remote Level Control	Yes / Dash Mount
Cooling Fan	No
Voltmeter	No
Thermal Protection	Yes
Over-Load Protection	Yes
DC Output Protection	Yes
Short Circuit Output Protection	Yes
Voltage Input Protection	Yes <9 / >16 Volts
Clipping Protection	Yes
Body Color / Finish	Black Aluminum Brush
MEASUREMENT
Overall Length	11.8" / 301mm
Overall Wide	7.24" / 184mm
Overall Height	2" / 53mm
Heatsink Length	10.47" / 266mm
Gross Single Unit Weight	5.8Lb
