CP-Carrillo Automotive Piston, Each, Cyl: 1, Material ID: 3267 0DFEF
Regular price
$143.75
Regular price
$166.00
Sale price
$143.75
Couldn't load pickup availability
Details
SKU:0DFEF
Availability:Out stock
Description

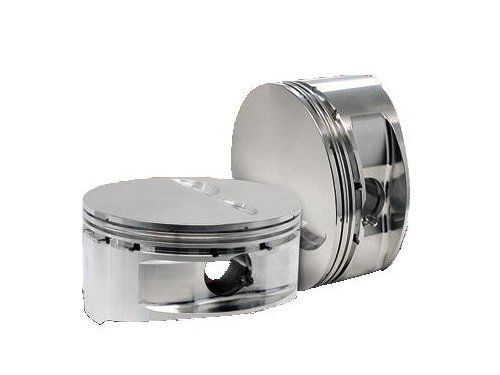

Small Block Chevy LS1 Piston
SBC LS1 Flat Top & Dish
Designed on X-style forging to clear reluctor wheel
Fit LS1, LS2 and LS6 heads
Designed for shorter wrist pins
Pinfitting included at no cost
Chamfered pins and wire locks included
Accumulator and anti-detonation grooves included
Designed for back-cut rings
Double pin oilers, force fed from oil ring
Pick lock grooves for easy lock removal
Custom skirt cam and barrel shapes
Supplied with Wire Locks and 927×2.250 Pin (106g)
CP Pistons are priced and sold per piston. 8 Cylinder engines will require Quantity 8 of each part #.
Individual CP Piston Domed Fits 18Degree Dart Big Chief & Brodix Big Duke Heads Supplied With Double Spiral Locks Supplied with .180 Wall .990 x 2.750 pin (142g)
or optional 165g
2nd Ring: 0.043
Bore: 4.600
Comp Height: 1.270
Dome VR CC: .245 Dome +19cc
Gas Ports: Yes
Oil Ring: 3.0
Rod: 6.385
Stroke: 4.250
Top Ring: 0.043
Weight: 615w/ 18Degree Dart Big Chief or BRODIX Big Duke Heads
