AUTOOL BT10 Electronic Handbrake Emergency Release Tool Dual-Circuit Control Brake Release For Electronic Braking System, BT10

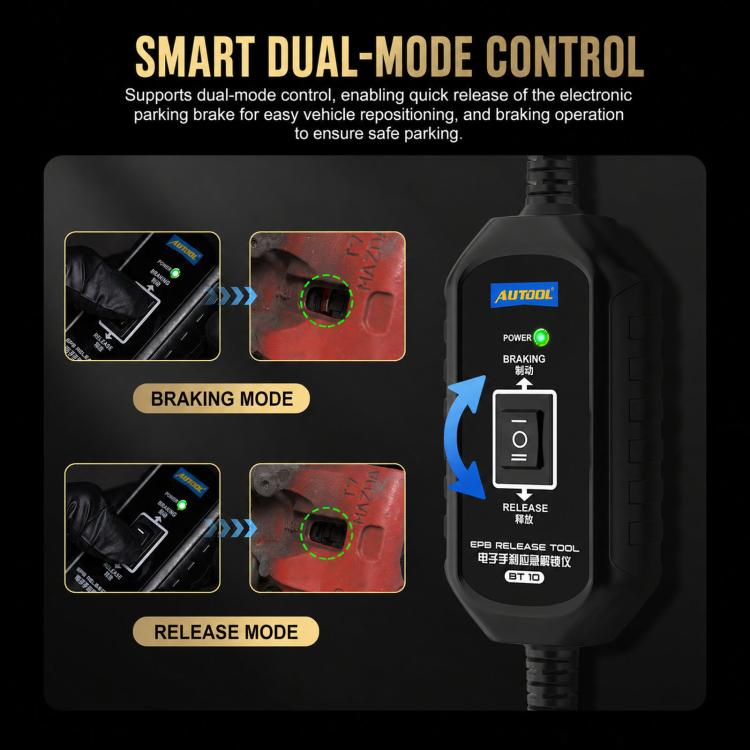

1. Release mode: controls the electronic handbrake pump motor to retract, quickly unlocking the parking brake, allowing the vehicle to move freely. Suitable for replacing brake pads during maintenance and when towing vehicles for relocation
2. Braking mode: controls the pump motor to extend and lock the wheels, restoring the parking brake, ensuring parking safety. The operation is intuitive; by simply switching the lever, the rear-wheel electronic handbrake motor can be extended or retracted, without the need for the vehicle to be powered on or for diagnostic computer access

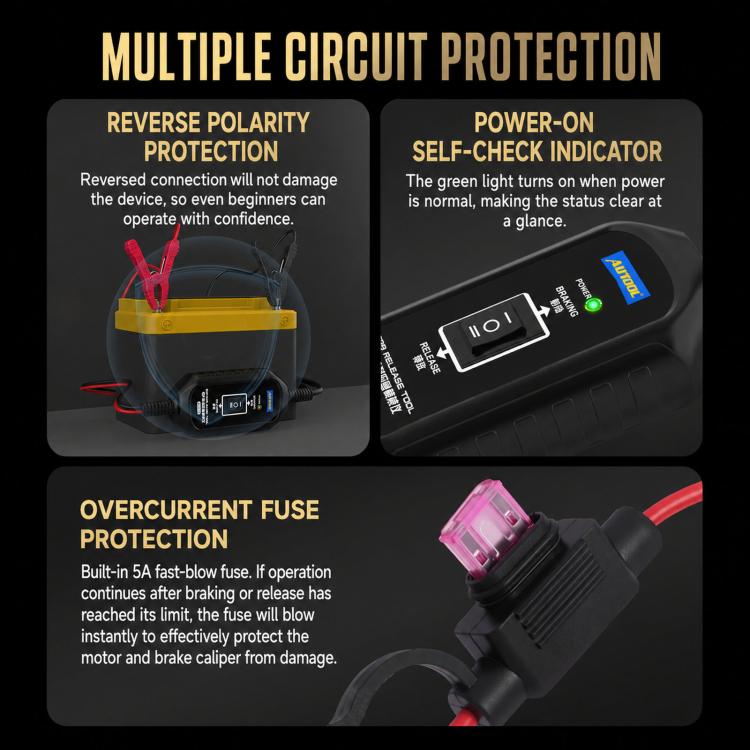

3. Reverse polarity protection: even if the positive and negative battery terminals are connected in reverse, the main unit will not be damaged. There is no need to worry about wiring errors that could damage the equipment or the vehicles circuitry
4. Power-on self-check with a green light indication. After the equipment is connected to a normal power supply, the POWER indicator light remains constantly green, providing a clear way to determine the power status. Faults and power failures are immediately apparent.
5. 5A overcurrent fuse. The main line is equipped with a replaceable quick-fusing insurance. If the brake/release is completed and the switch is continuously pressed, the overload current will instantly fuse, protecting the handbrake pump motor and the brake pump from being damaged
6. Widely applicable, suitable for vehicle maintenance and repair, fault relocation in repair shops/4S stores, road emergency rescue towing, and troubleshooting of electronic handbrake systems

Parameters
1. Working voltage: DC 10V - 14V
2. Working current: less than 15A
3. Wire length: main line of the battery clamp 1 meter, short line of the motor output 0.5 meters
4. Component structure: red and black positive and negative battery clamps, 5A overload fuse, power indicator light, three-section control switch, dedicated terminal interface for electronic handbrake motor
5. Compatibility: fuel passenger cars with rear-wheel electronic handbrake pump (EPB)
