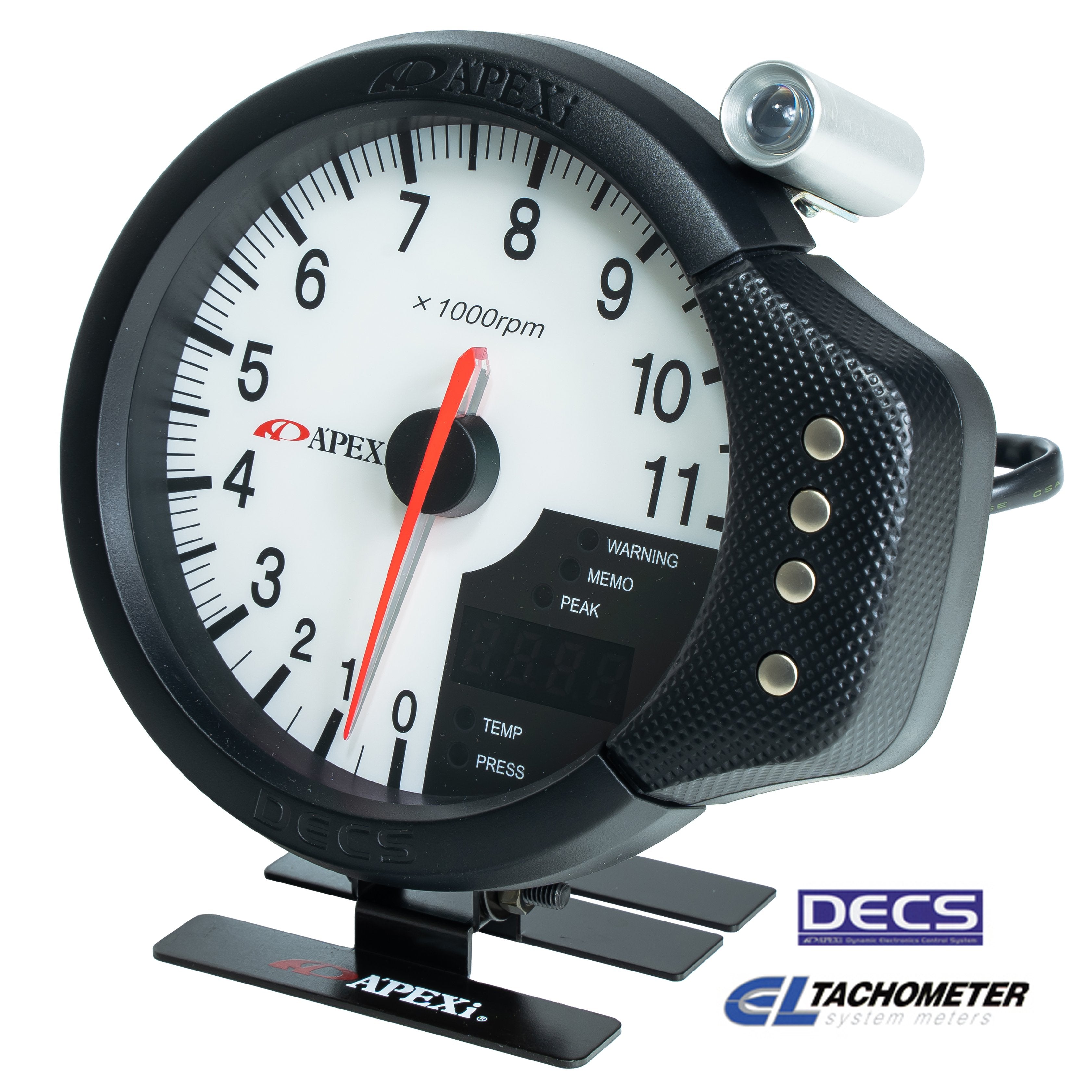

APEXi EL System DECS Tachometer - ** FINAL RUN **

• Brightness adjustable electro luminescent (EL) display
  - A brightness adjustable EL Display is used for uniform panel illumination. panel brightness is easily adjusted.
• Standard equipped with gear shift light
  - High illumination indicators indicate gear shift points in daylight and night.
• Equipped with digital temperature/pressure display function
  - Can display oil or water temperatures and oil pressure by using optional sensors (sold separately). Highly legible light-emitting diodes used for display.
• Easy to read high R.P.M. zone
  - The reduced scale in the low R.P.M. zone (0 to 300 r.p.m.) contracts with the magnified high R.P.M. zone (3000 to 11000 r.p.m.) for excellent legibility.
• Warning memory function
  - The LED indication has two warning modes: Constant and flashing
• Playback function
  - This function records the movement of the tachometer for the about 30seconds and plays it back on the meter when requested
• Peak memory function
  - This function shoes the maximum r.p.m., temperature (TEMP) and oil pressure (PRESS)

* Temperature Range Display: 32°F ~ 302

°F / 0

°C ~ 150

°C
* Pressure range displayed: 0KPa ~ 999KPa
