35-Amp 3-Phase Bridge Rectifier

Regular price
$9.99
Regular price
Sale price
$9.99
Details
  • SKU: BR-35-1
  • Availability: In Stock
Description

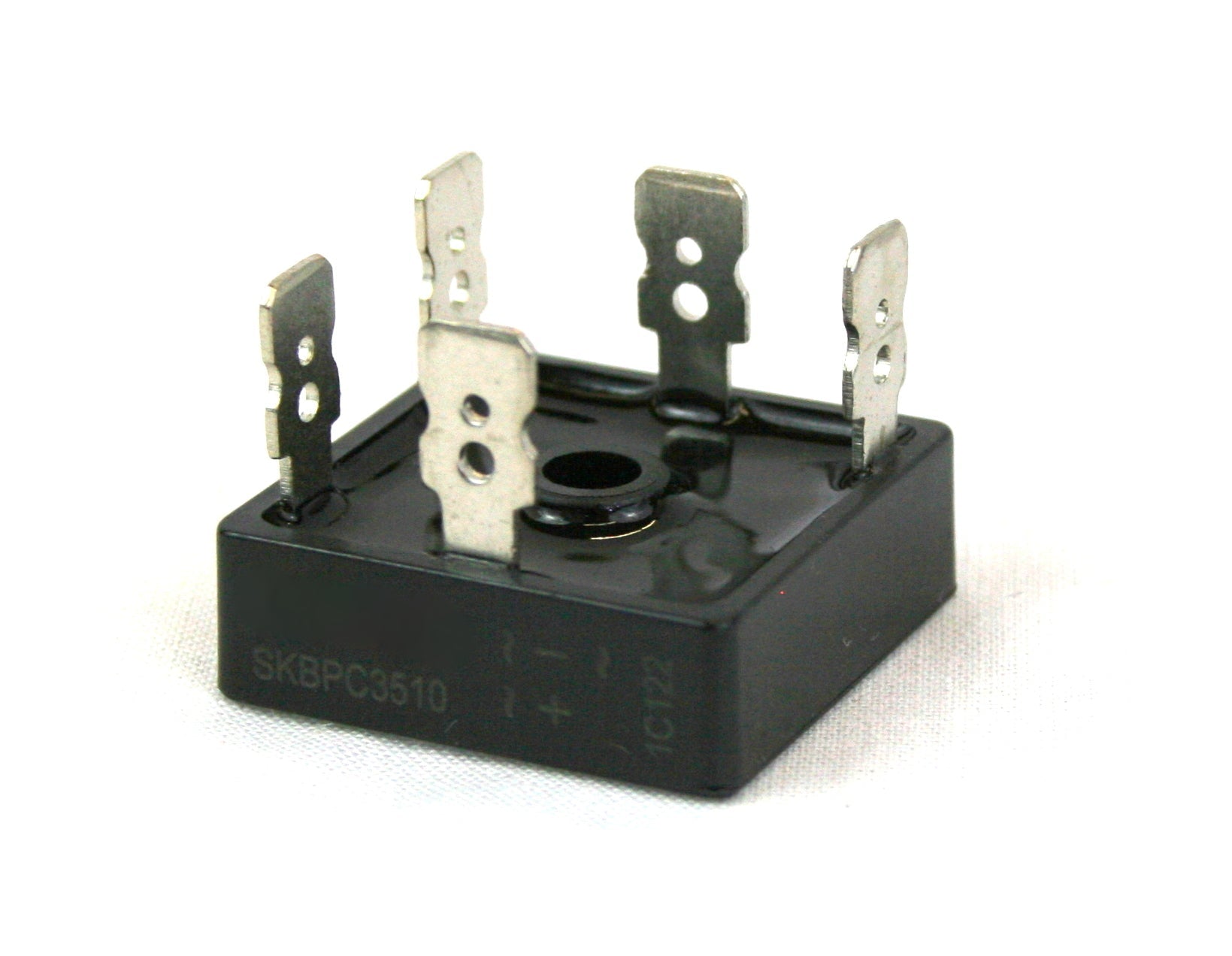

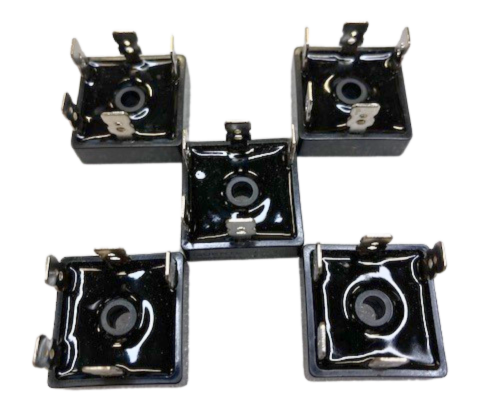

This is a 35-Amp 3-Phase bridge rectifier that converts three-phase AC voltage to DC voltage. This unit is perfect for smaller generators that put out 35 Amps or less. This includes 3-Phase AC motors which are often used to make wind generators!

  • Will work on all battery banks
  • The operating range is 0 to 1,000-Volts
  • Will work on AC generators that produce 35-Amps or less
  • Spade terminals for easily attaching the input and output wires

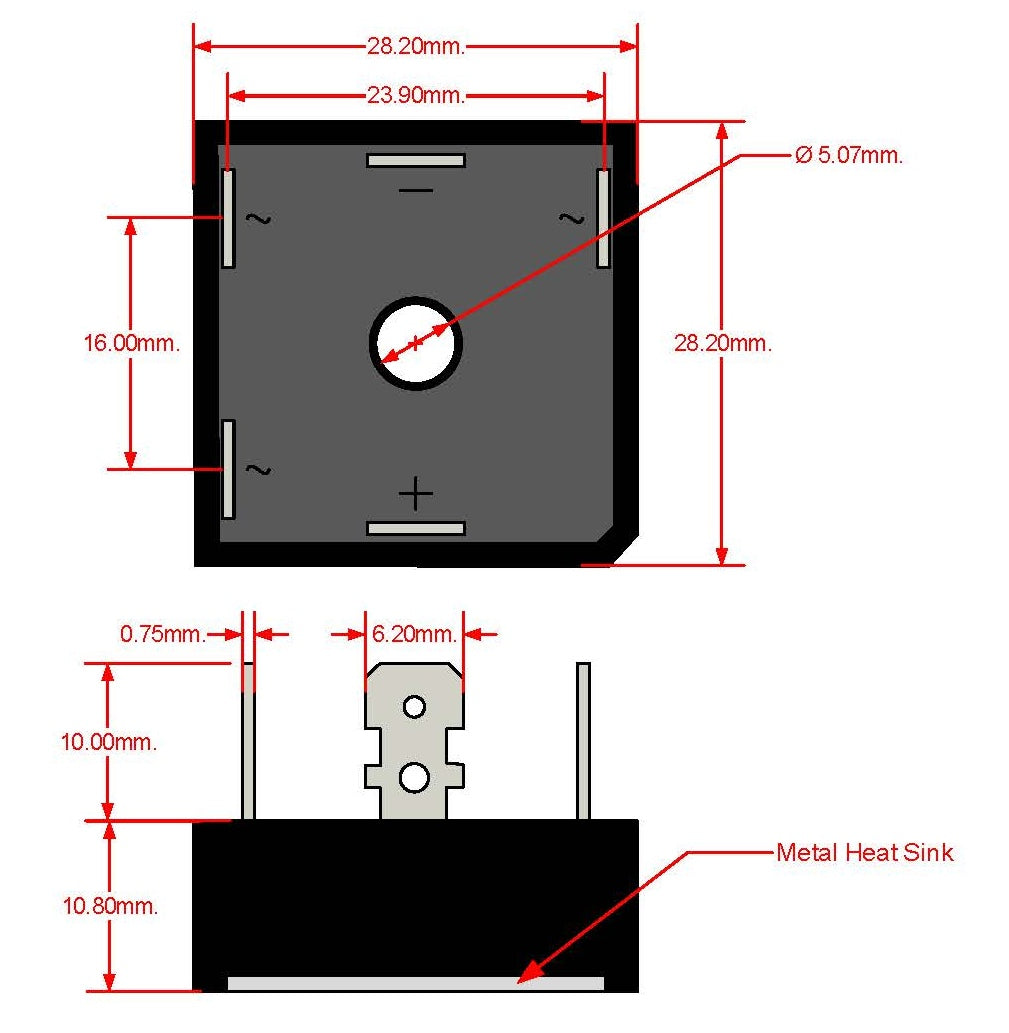

  • One center mounting hole for easily securing to your heatsink and electrical box

SPECIFICATIONS:

  • Repetitive Peak Reverse Voltage (VRRM): 1000 Volts
  • Average Rectified Output Current (IO): 35 Amps
  • Surge Forward Current (IFSM): 400 Amps
  • Peak Forward Voltage (VFM): 1.2 Volts
  • Peak Reverse Current (IRRM): 10 uAmps
  • Storage Temperature: -40 to +150C
  • Junction Temperature (Tj): -40 to +150C
