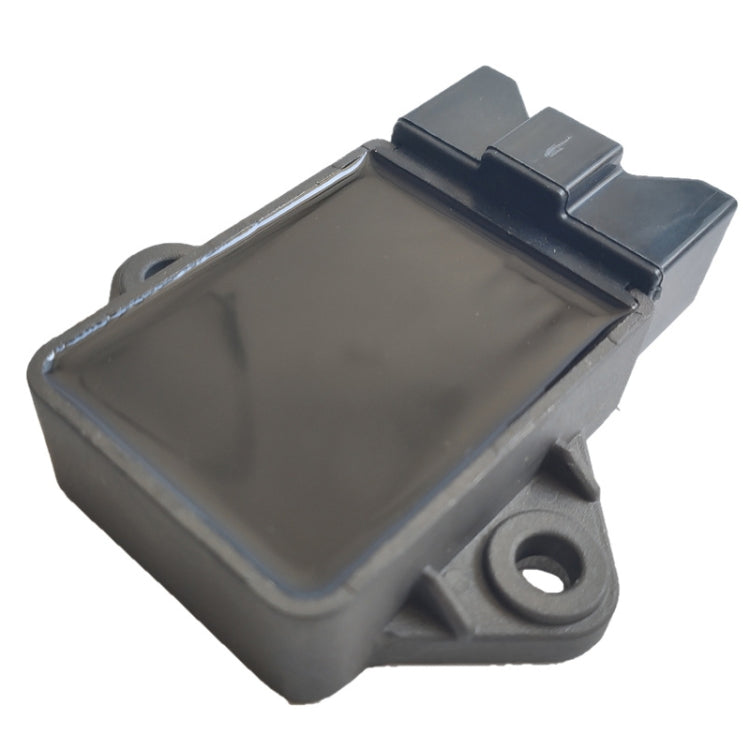

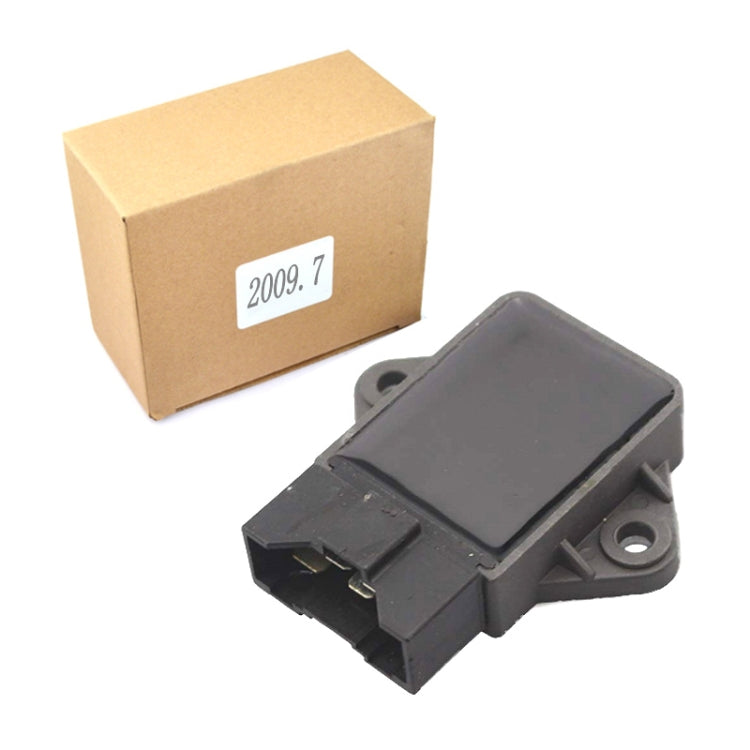

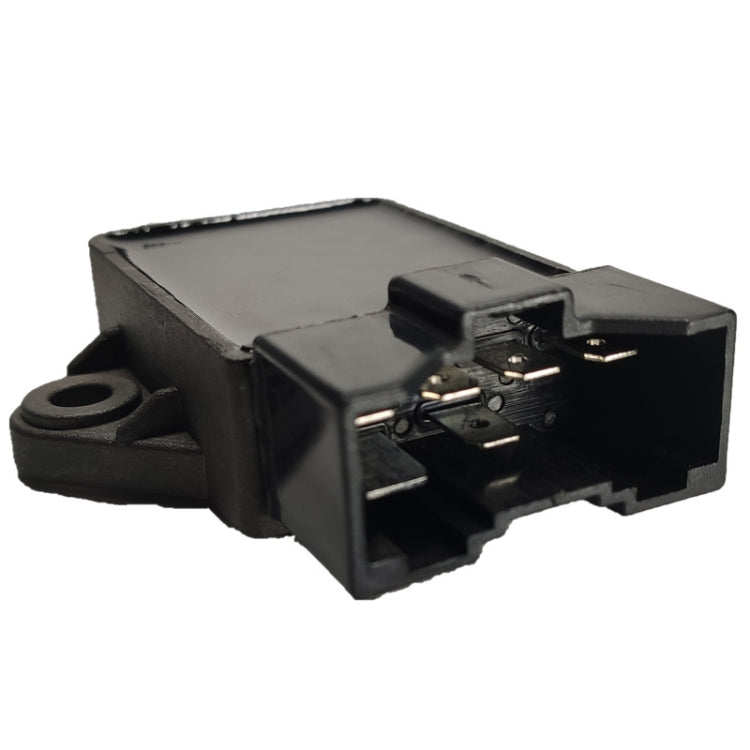

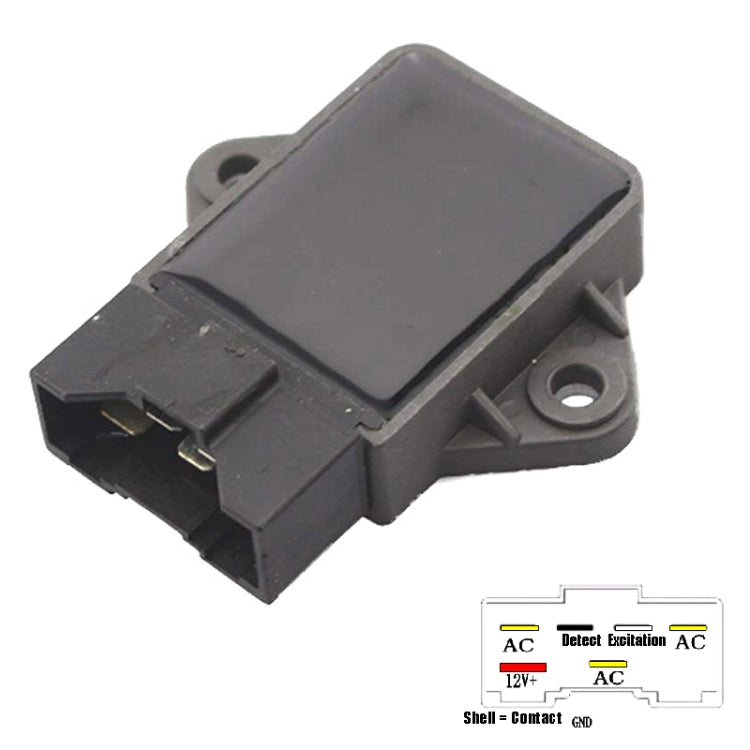

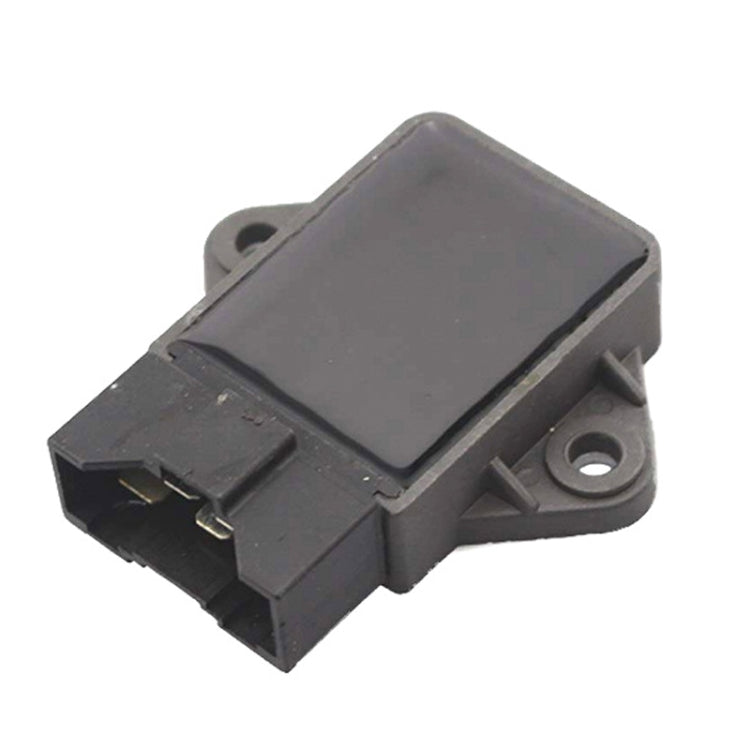

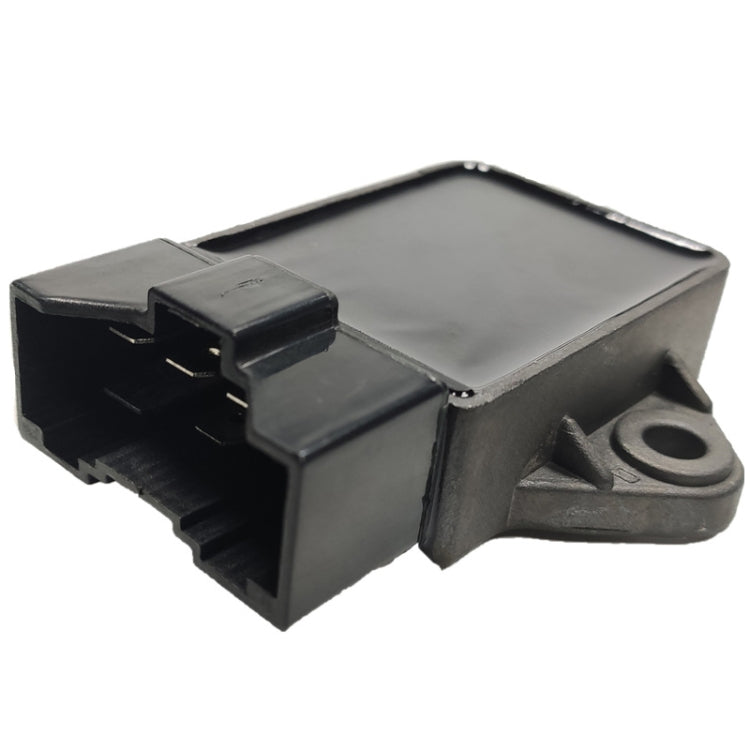

2009.7 Motorcycle Excitation Type Rectifier For Honda CB750F CBR1000F 31600-MS2-601, 2009.7

1. Weight: 142G
2. Output voltage: 14.5V
3. Heat dissipation material: aluminum heat dissipation shell

Applicable models:
Suitable for Honda Street Bike
Suitable for Sh261-12 31600-MS2-601
Suitable for Honda CBR1000F Hurricane 1990-1991
Suitable for Honda CBR1000F Hurricane 1993-1996

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative outputs are not connected, start the locomotive, measure the positive and negative output voltages, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier Check whether the voltage at the end is within a reasonable range. If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the overvoltage from burning out other electrical devices when the rectifier is damaged.
