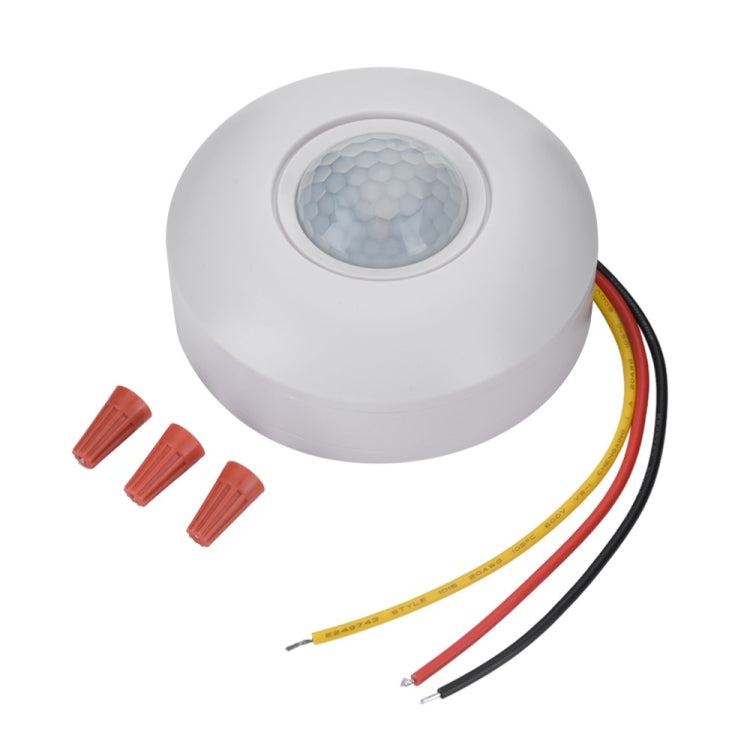

12V Infrared PIR Motion Sensor Switch With Delay 360 Degree Detection Sensor for LED Ceiling Light

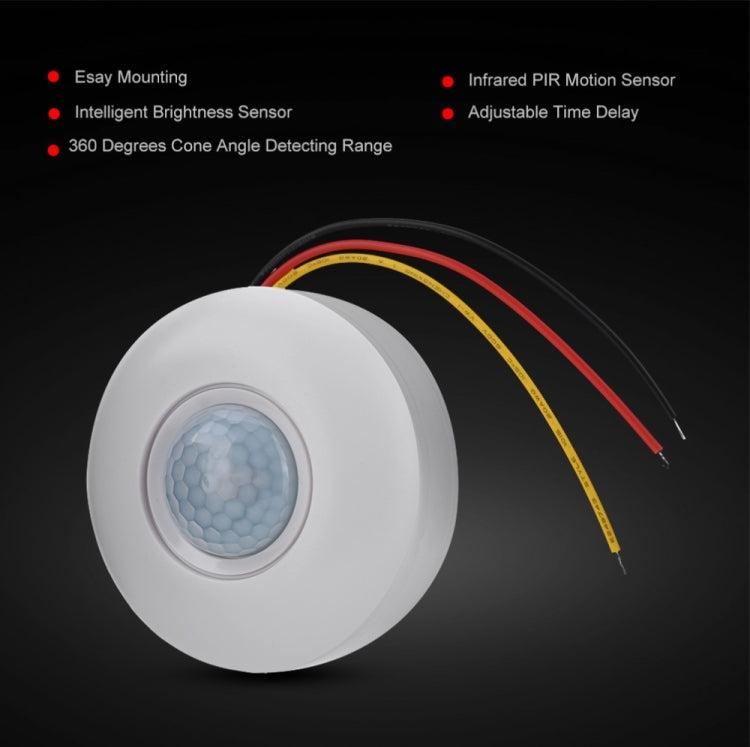

Features:
1.Infrared PIR Motion Sensor: It can detect human movement by detecting infrared ray emitted by human body.
2.Intelligent Brightness Sensor: It adopts photosensitive control, it will not turn on the light during the daytime or strong light environment, or you can choose to turn on the light during the any light environment.
3.360 Degrees Cone Angle Detecting Range: High and stable sensitivity, effectively save energy and improve efficiency.
4.Adjustable Time Delay: intelligent sensing, it will automatically close after a delay after the person leaves. After it is turned on within the delay period, if there is no human activity, there is a time for delaying the work for a certain period of time and adjusting the delay time within the appropriate range.

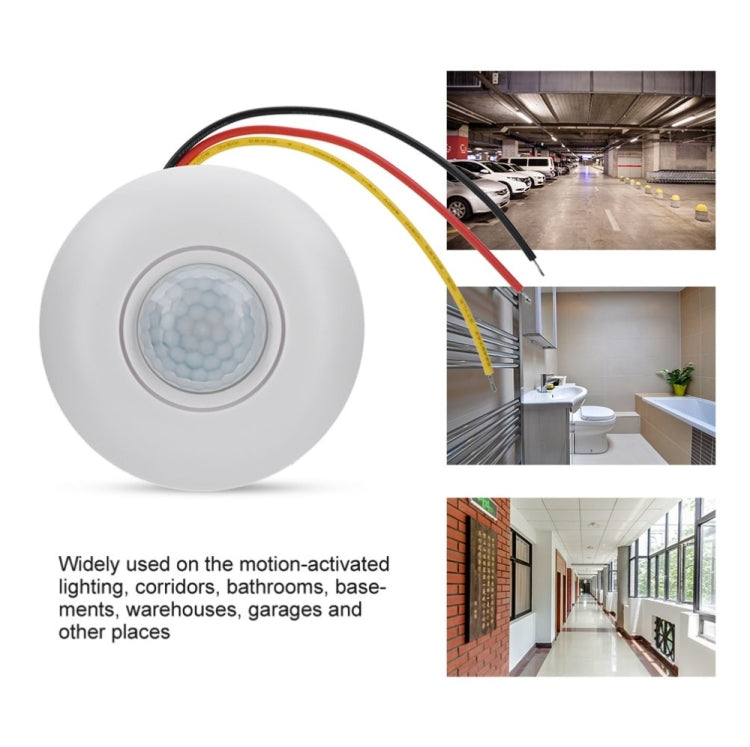

5.Wide Applications: Widely used on the motion-activated lighting, corridors, bathrooms, basements, warehouses, garages and other places, automatic exhaust ventilation fan and other electrical appliances and other functions.
6.Temperature Compensation: Built-in temperature compensation chip, reducing the impact sensing distance by the temperature.
Specifications:
1.Functional Description : Relay Control Load
2.Operating voltage: 12V
3.Working temperature: -20 °C ~ +50 °C
4.Static power consumption: 0.05W
5.Load power: 120W
6.Load capacity: all kinds of lamps, all kinds of electrical appliances
7.Output Mode: Inductive Output

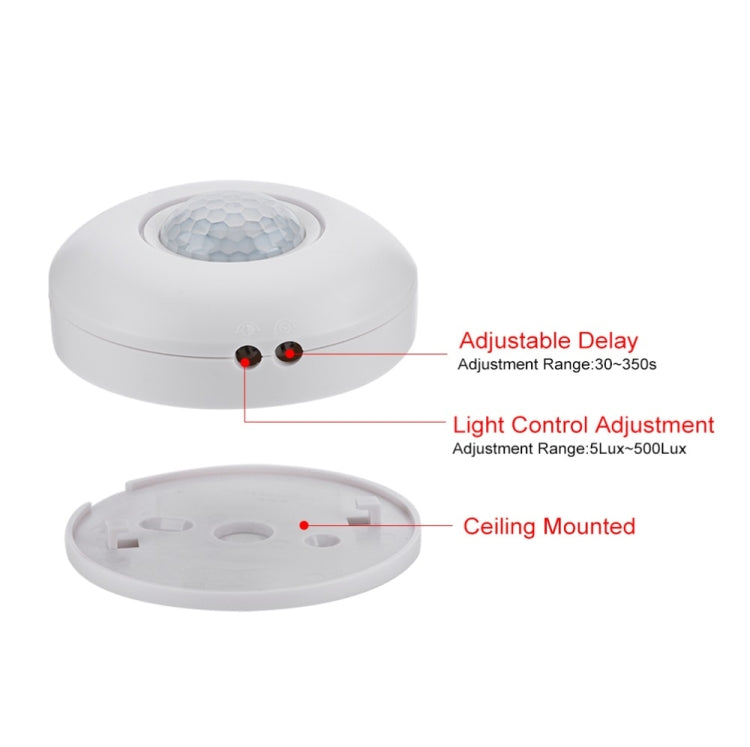

8.Light control range: 5 Lux ~ 500Lux ± 20% (adjustable sensitivity)
9.Delay range: 30~350s, ± 30% (adjustable delay)
10.Induction mode: passive
11.Sensing angle: 360 degree cone angle
12.Sensing distance: 5-7 m

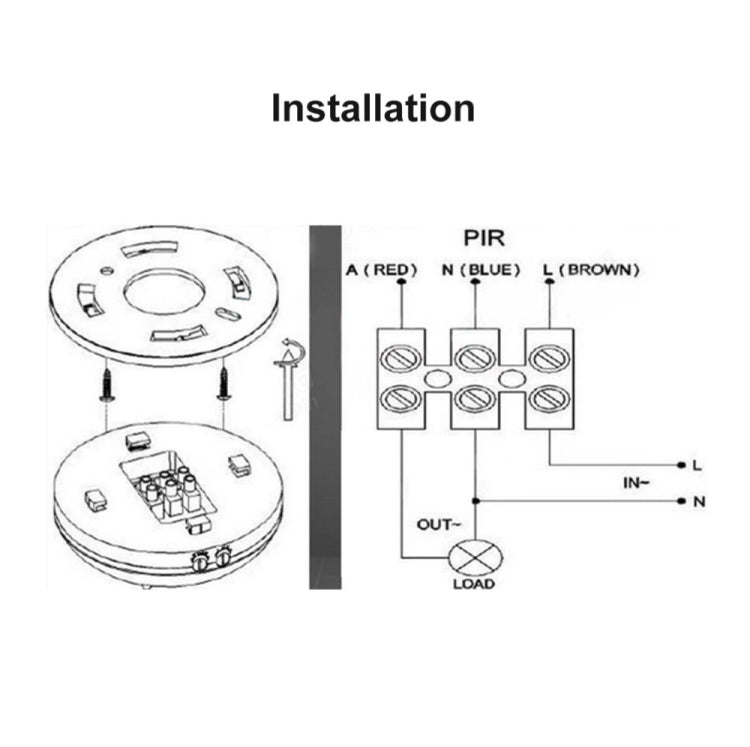

13.Installation method: suction point installation/ Ceiling installation
