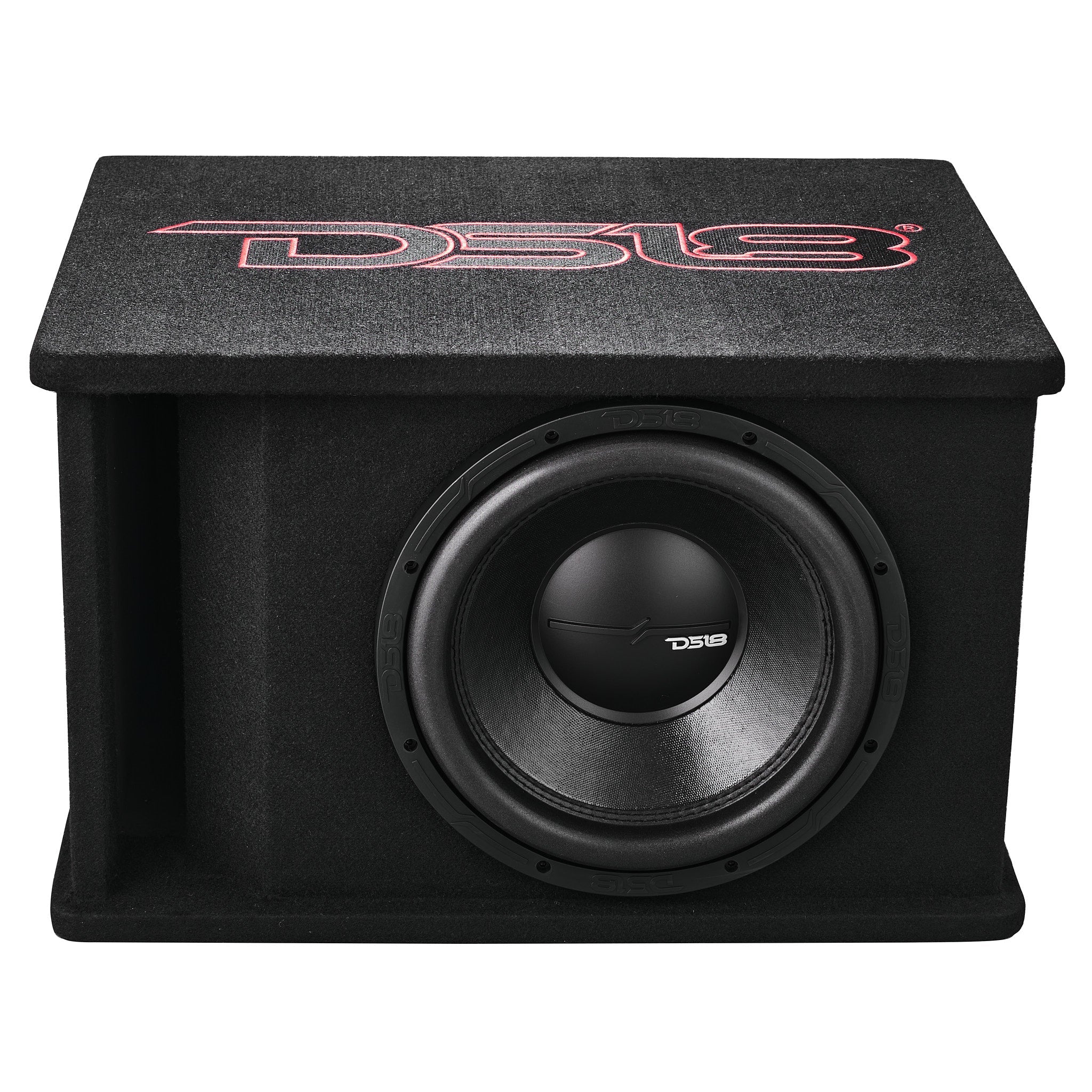

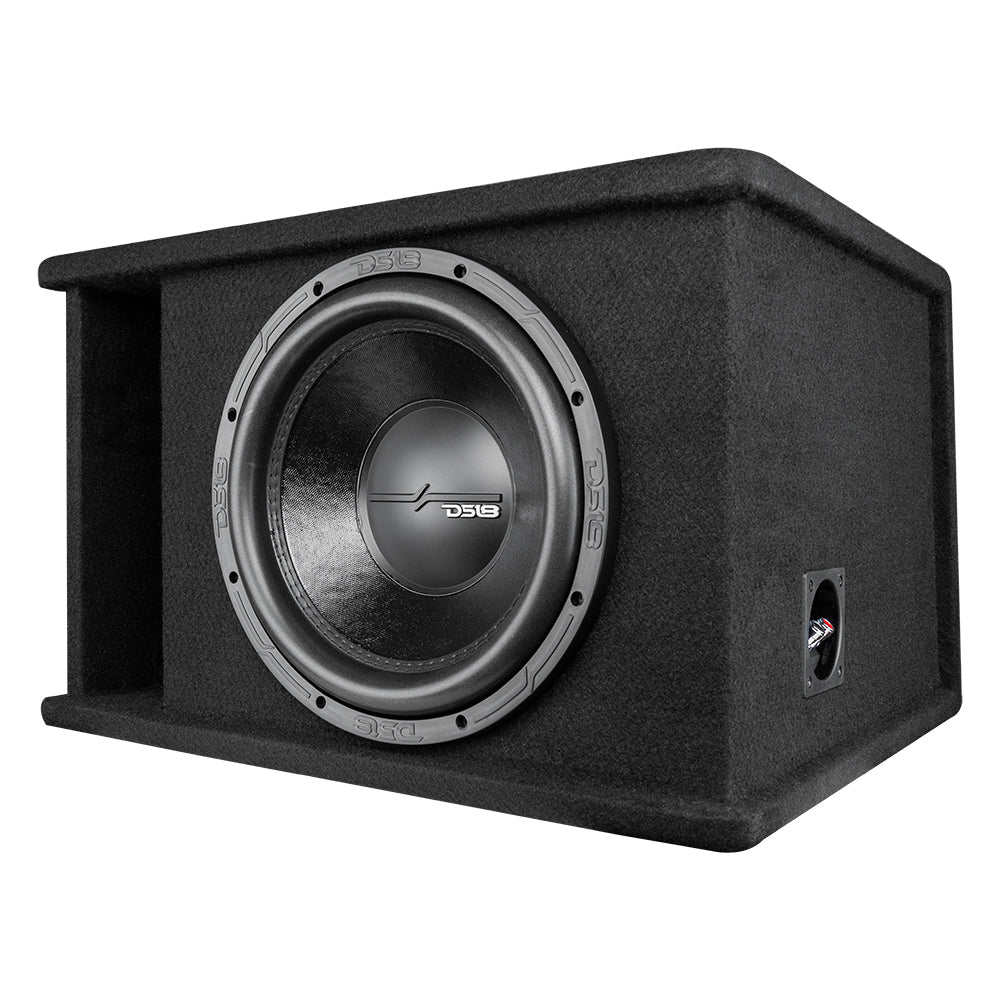

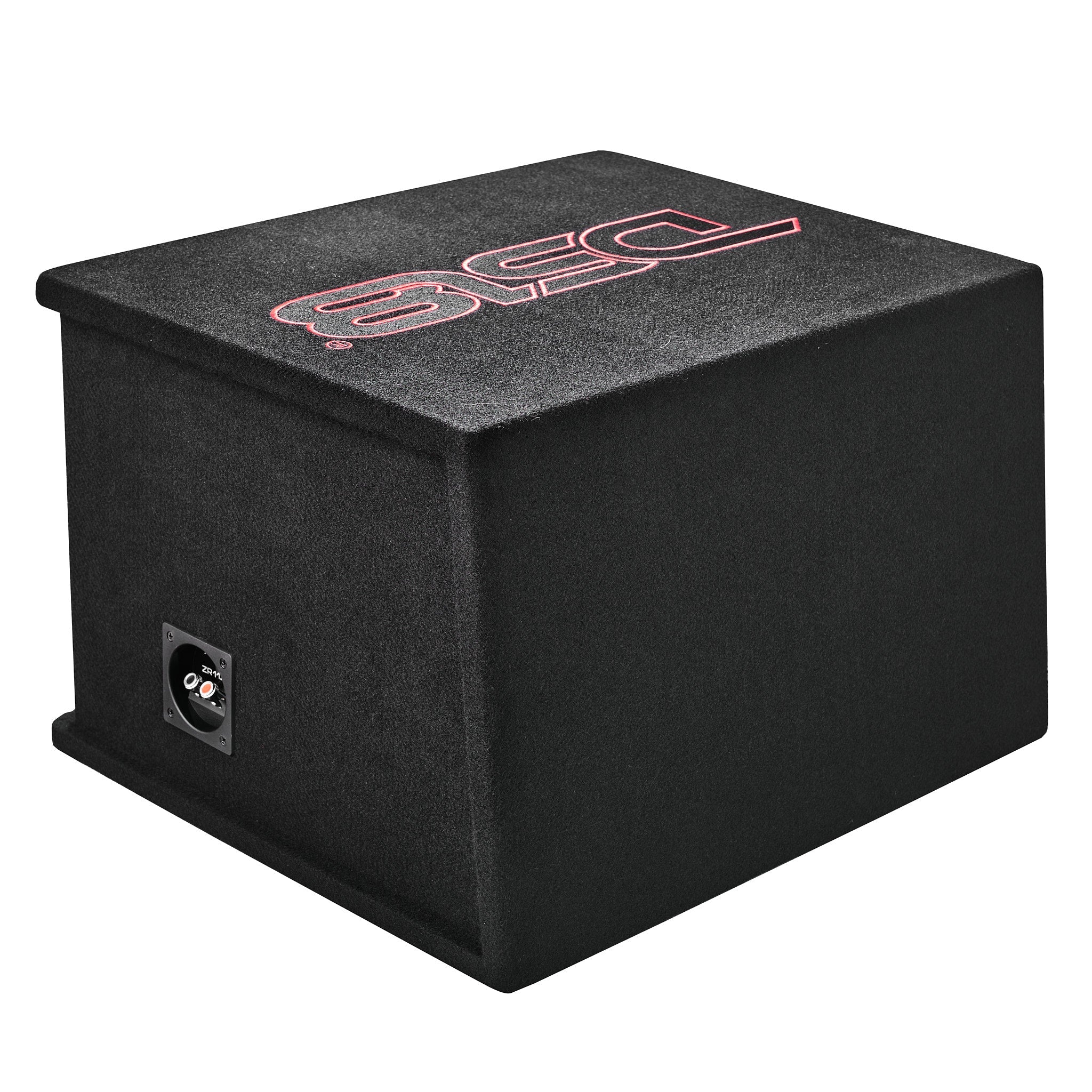

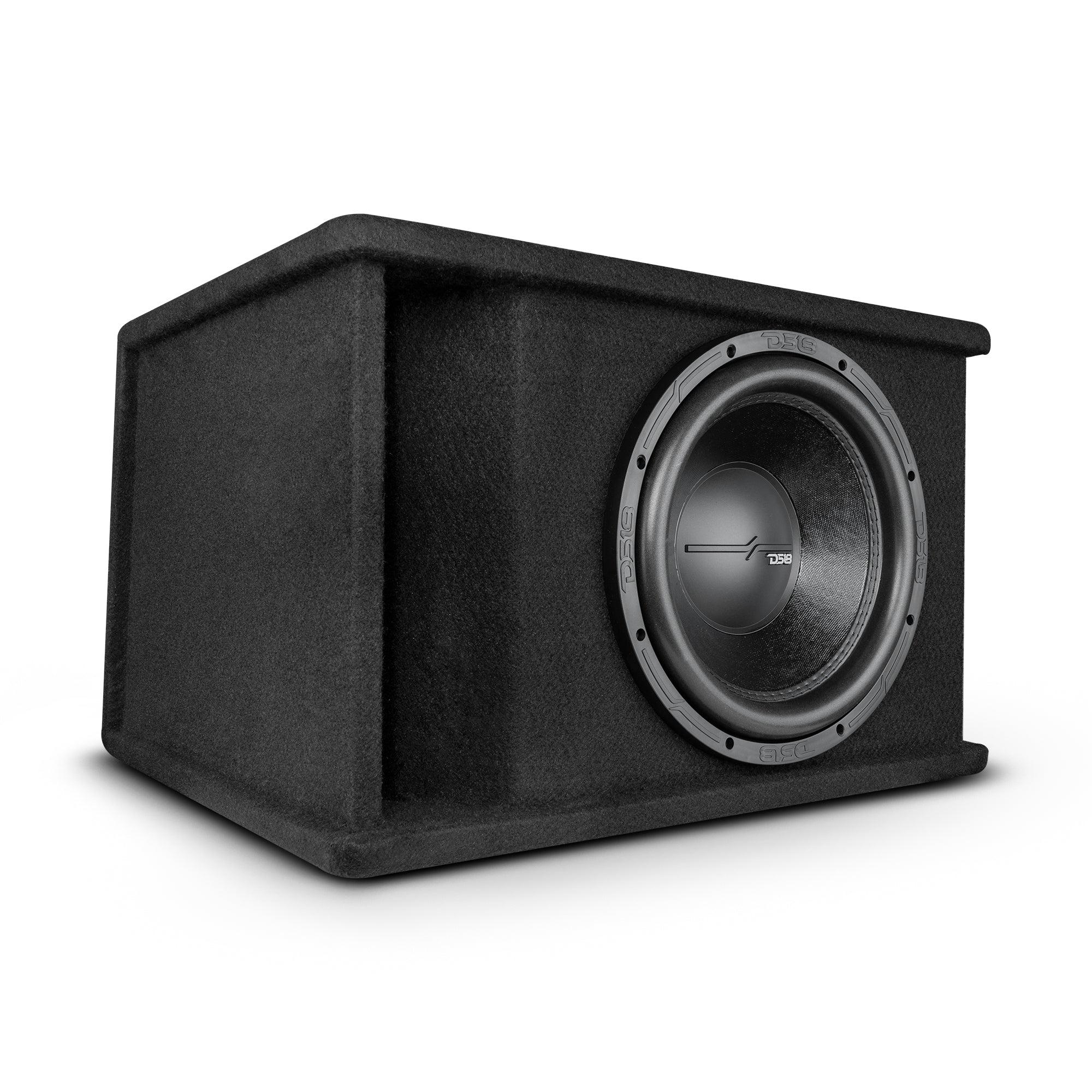

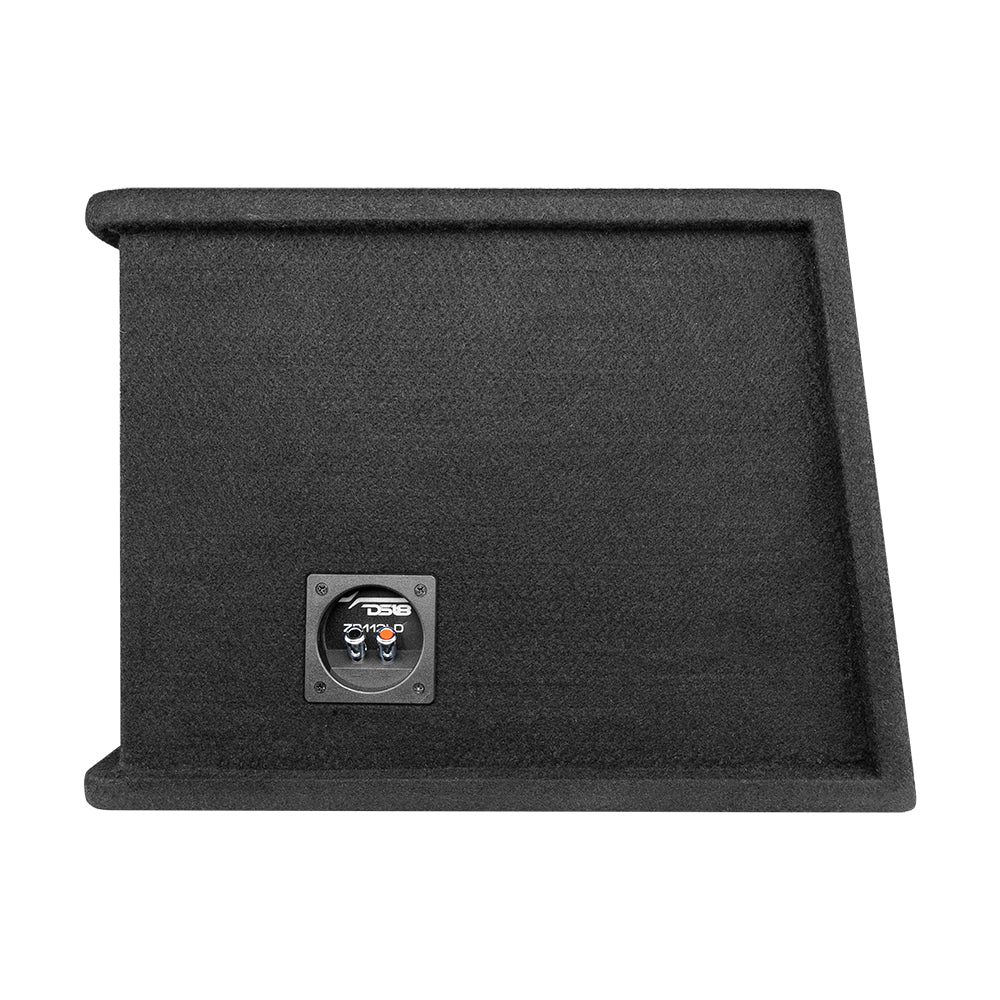

12" Loaded Subwoofer Ported Enclosure With ZR12.2D 800 Watts Rms

DS18 ZR112LD Bass Package 1 x ZR12.2D 12" Subwoofer In a Ported Box 1600 Watts

This is a prefabricated box that comes with one of our best selling subwoofers, the ZR12.2D. Included is a beautiful carpeted box with DS18 designs tuned to 29 HZ.

The box is constructed of thick 3/4 MDF for great sound and acoustical resonance. The subwoofer included is the very popular ZR12.2D that is a dual voice coil 2 ohm subwoofer wired in parallel for a final nominal impedance of 1 ohm that will require 800w RMS and 1600 W MAX.

This loaded box is a great solution to get hard hitting heavy bass for all to enjoy. To power this combo, we recommend a 1000w RMS amplifier like the ZR1000.1D to power this setup to its maximum potential.

Highlights

• The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass.
• One ZR12.2D 12 inch subwoofer that will give you the cone area to push out great sounding bass without a lot of power requirements.

Key Features

• 12 inch  subwoofer
• Max Power Handling: 1600 watts
• RMS Power Handling: 800 watts
• Frequency Response: 25hz-200hz
• Voice Coil Diameter: 2.5"
• Voice Coil Material: Copper
• Impedance: Dual Voice Coil 2-Ohm
• Sensitivity: 82 DB
• Magnet Weight: 100 OZ
• Magnet Material: Ferrite
• Mounting Depth: 6.6"
• X max: 25mm one way

Box:

• Box Material: 3/4 inch MDF
• Box Covering: Carpet
• Box Tuning: 29hz
• Box Type: Ported
• Internal Volume: 2.8 ft3

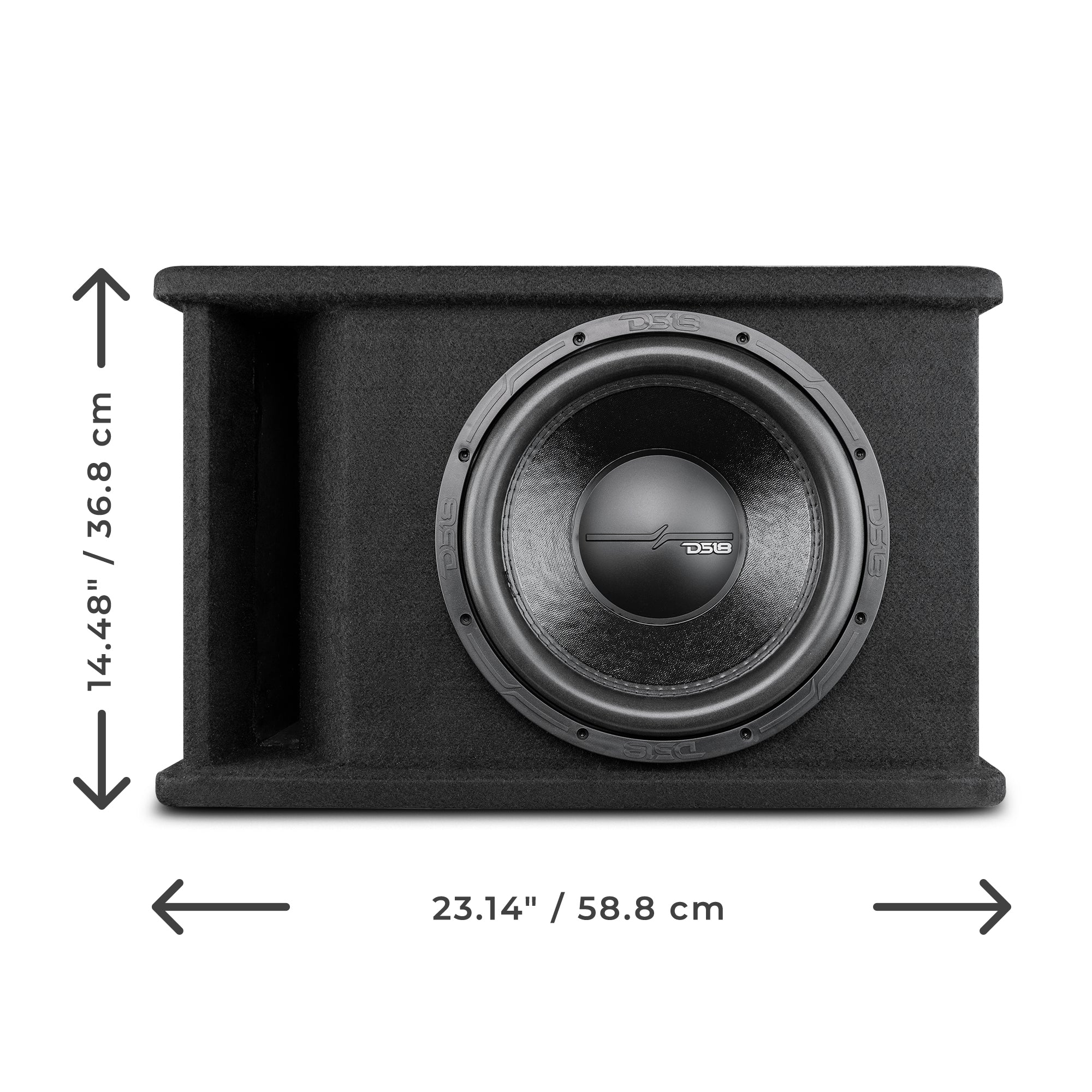

Dimensions:

• Height: 14.48"
• Width: 23.14"
• Depth 1: 17.71"
• Depth 2: 19.68"

Great For:

• Car Audio
• Pro Audio
• Home Solutions
• Hi-Fi Installation
• DIY Projects

" width="100%">

Technical Details

                                                    ZR112LD Product Manual
