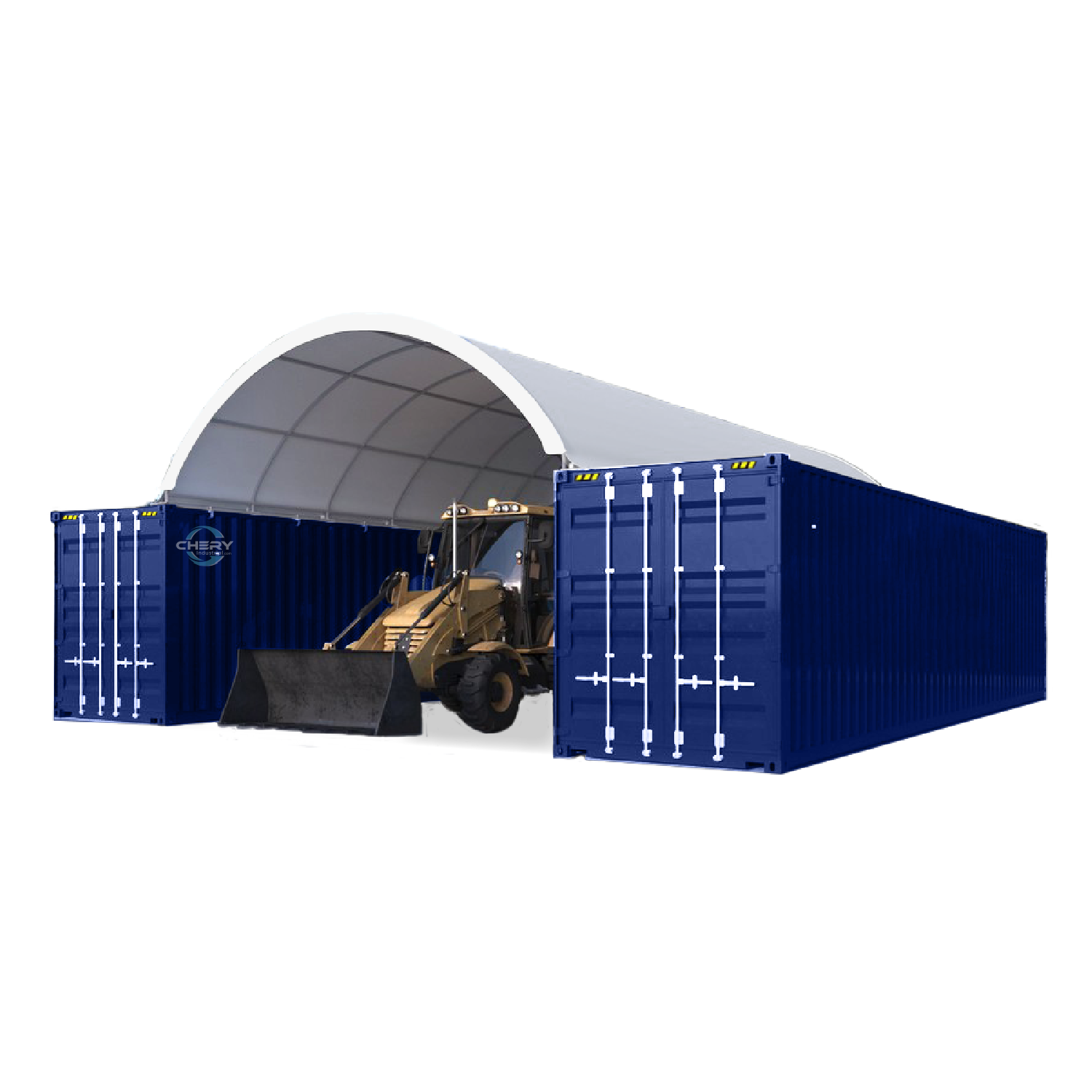

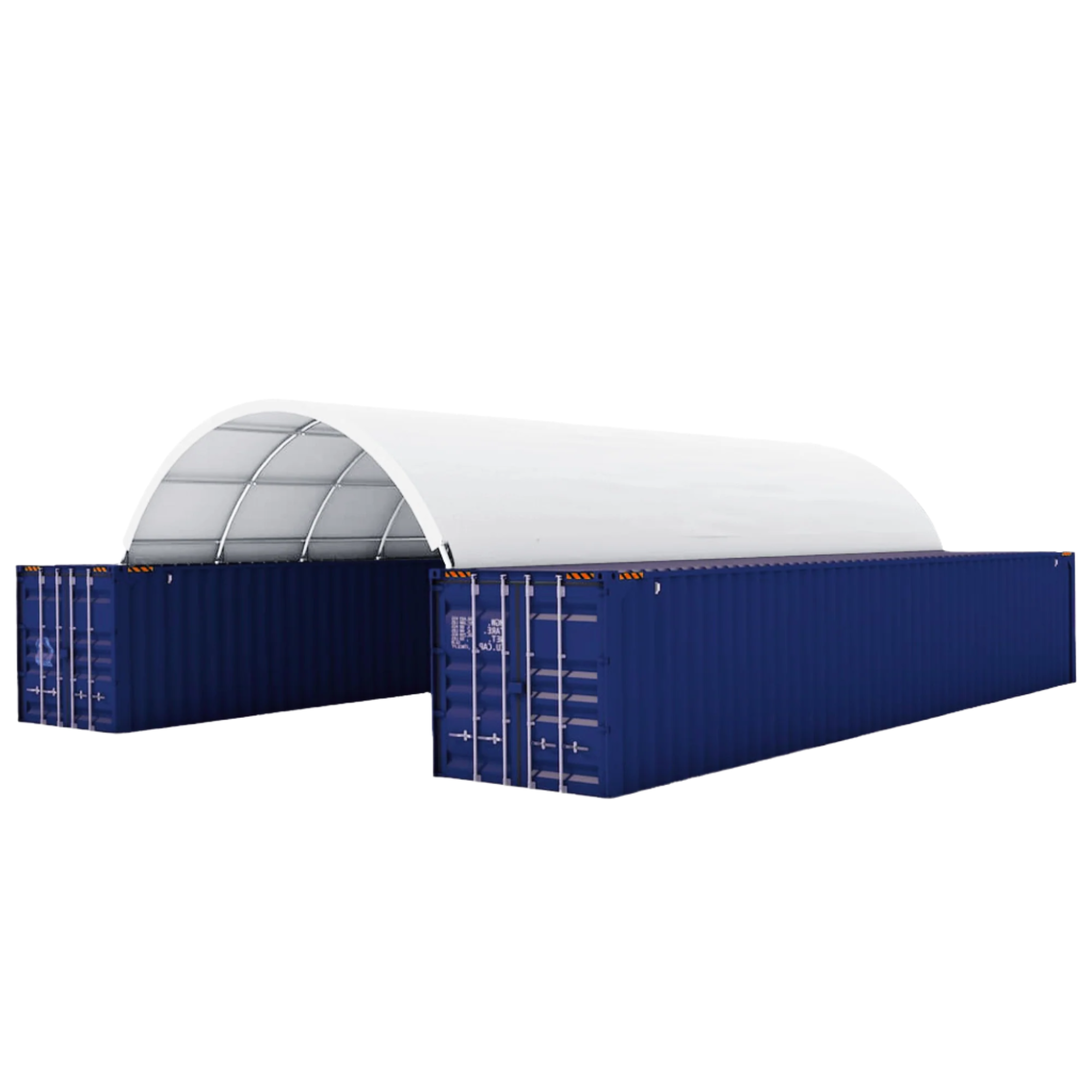

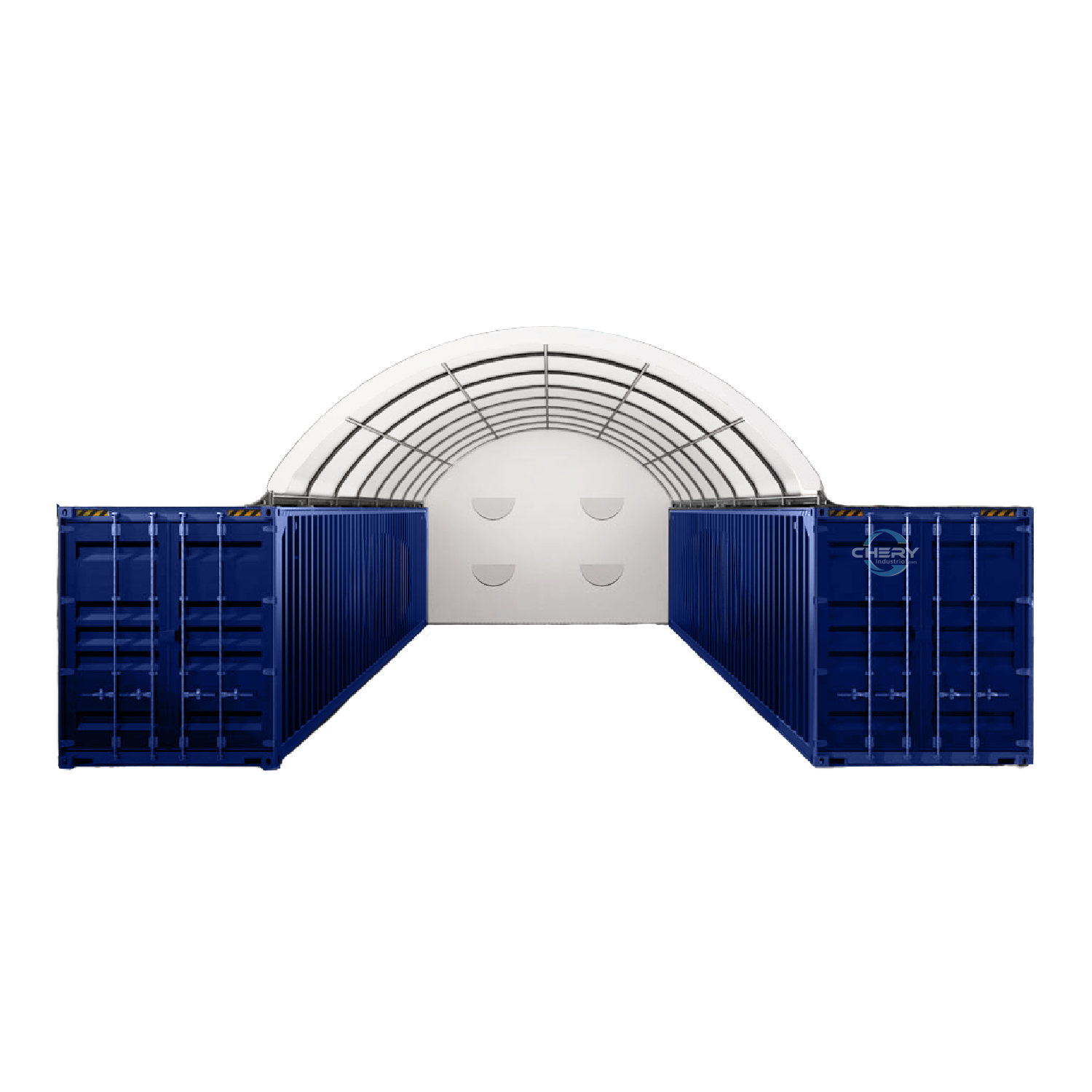

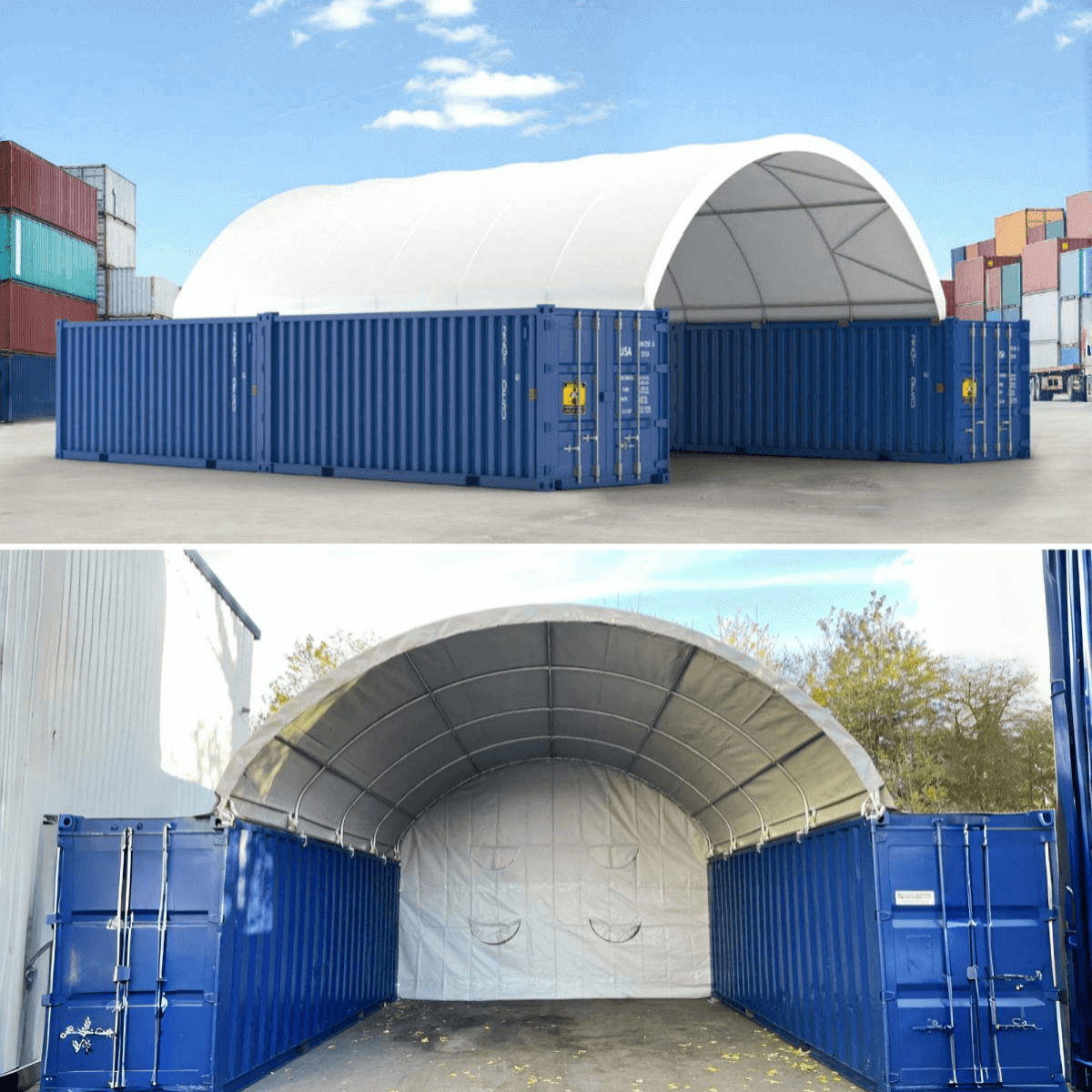

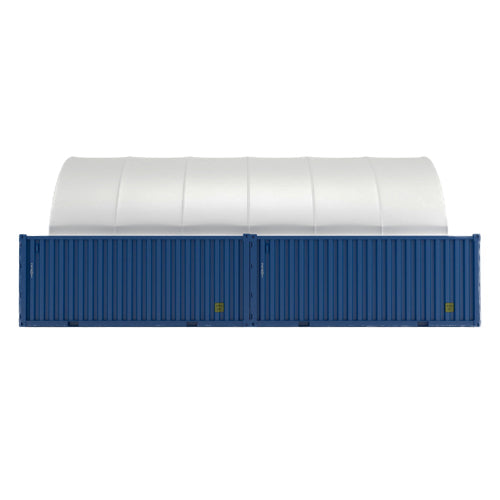

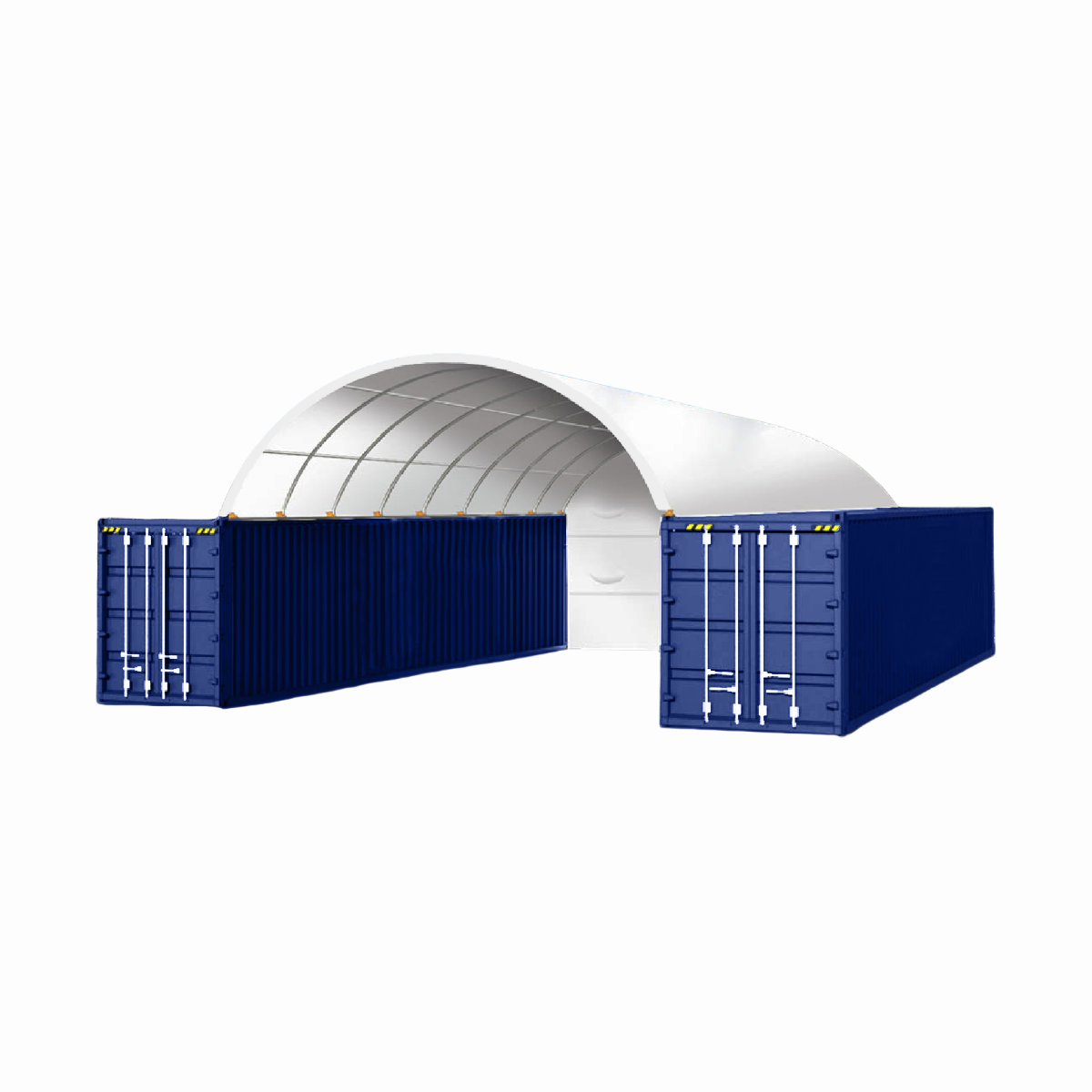

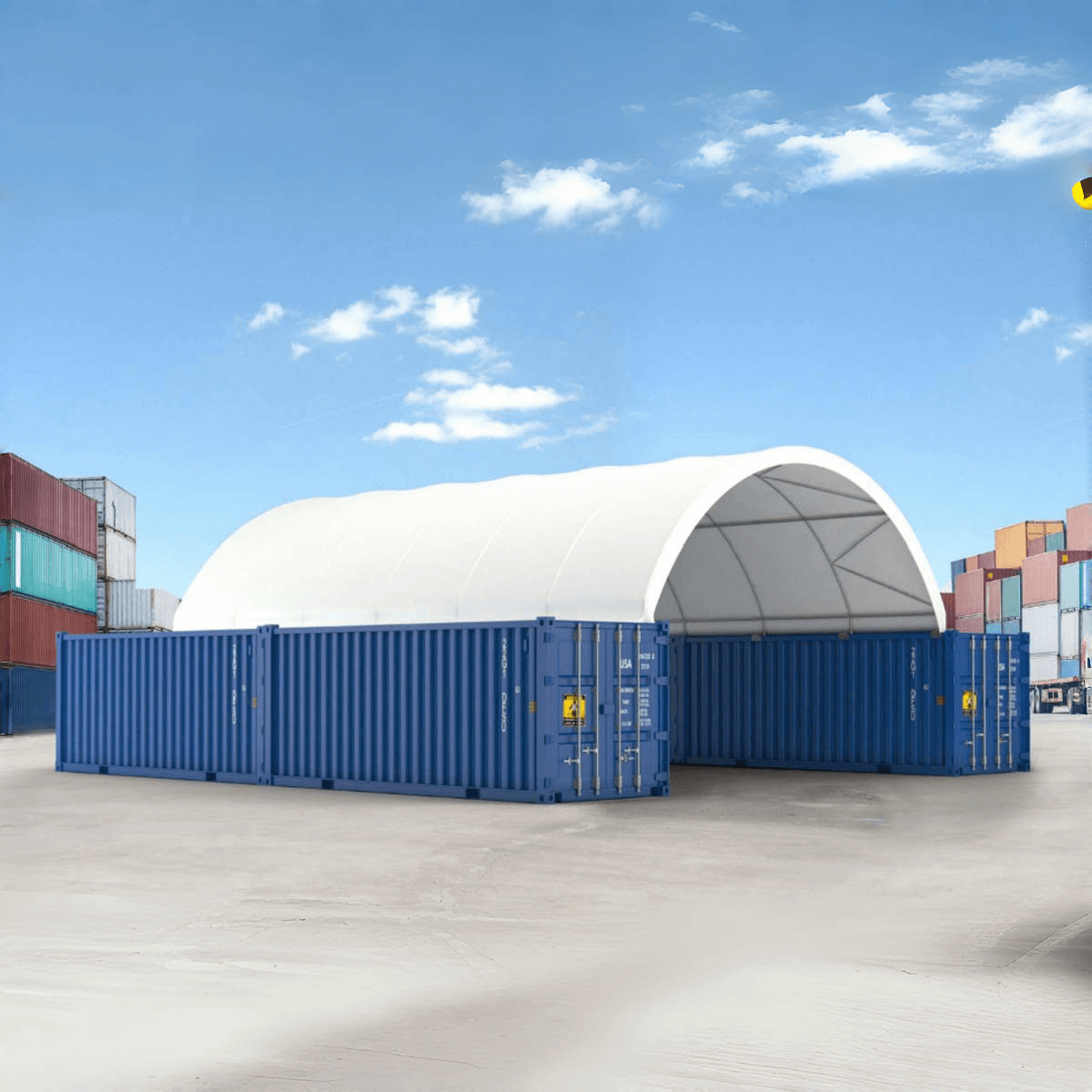

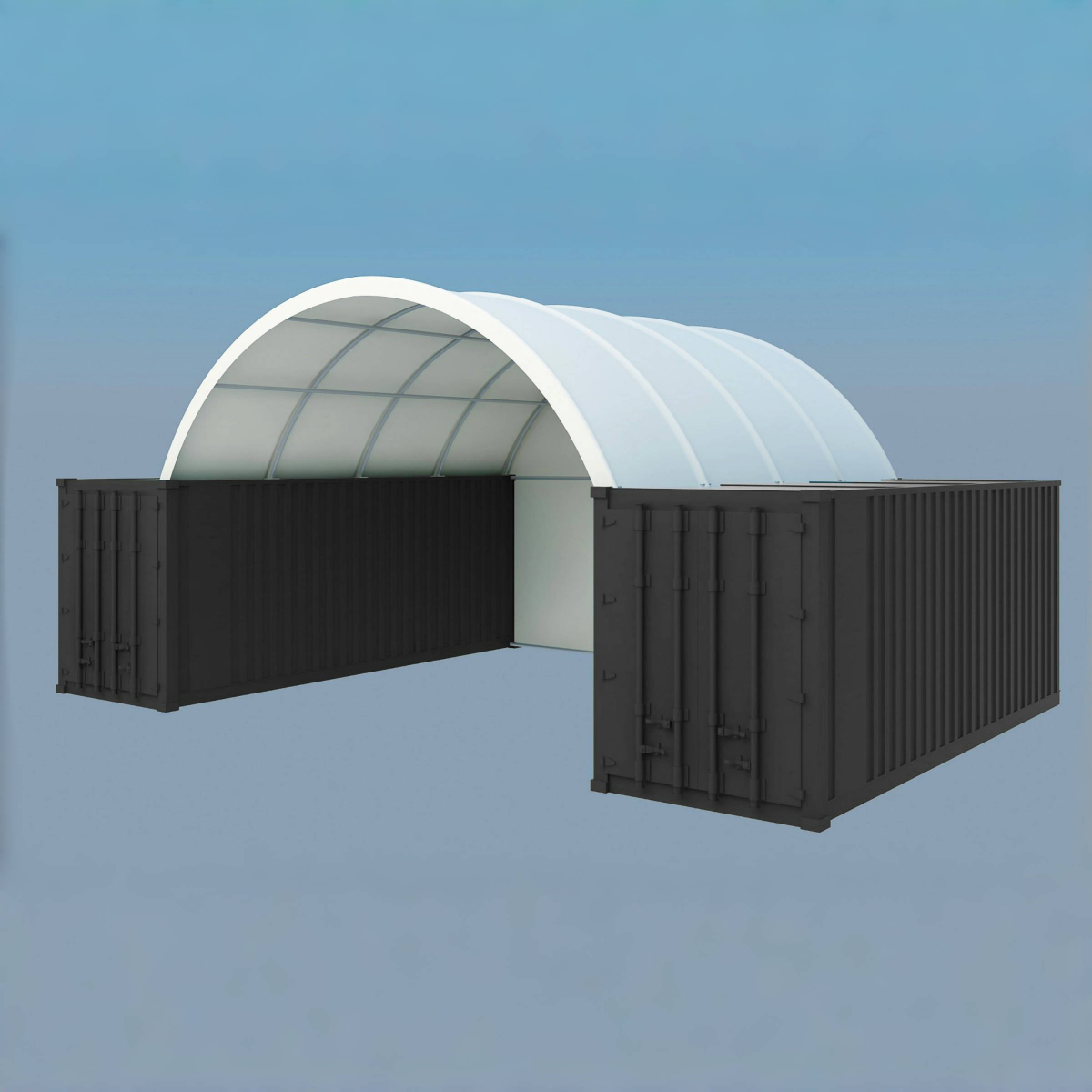

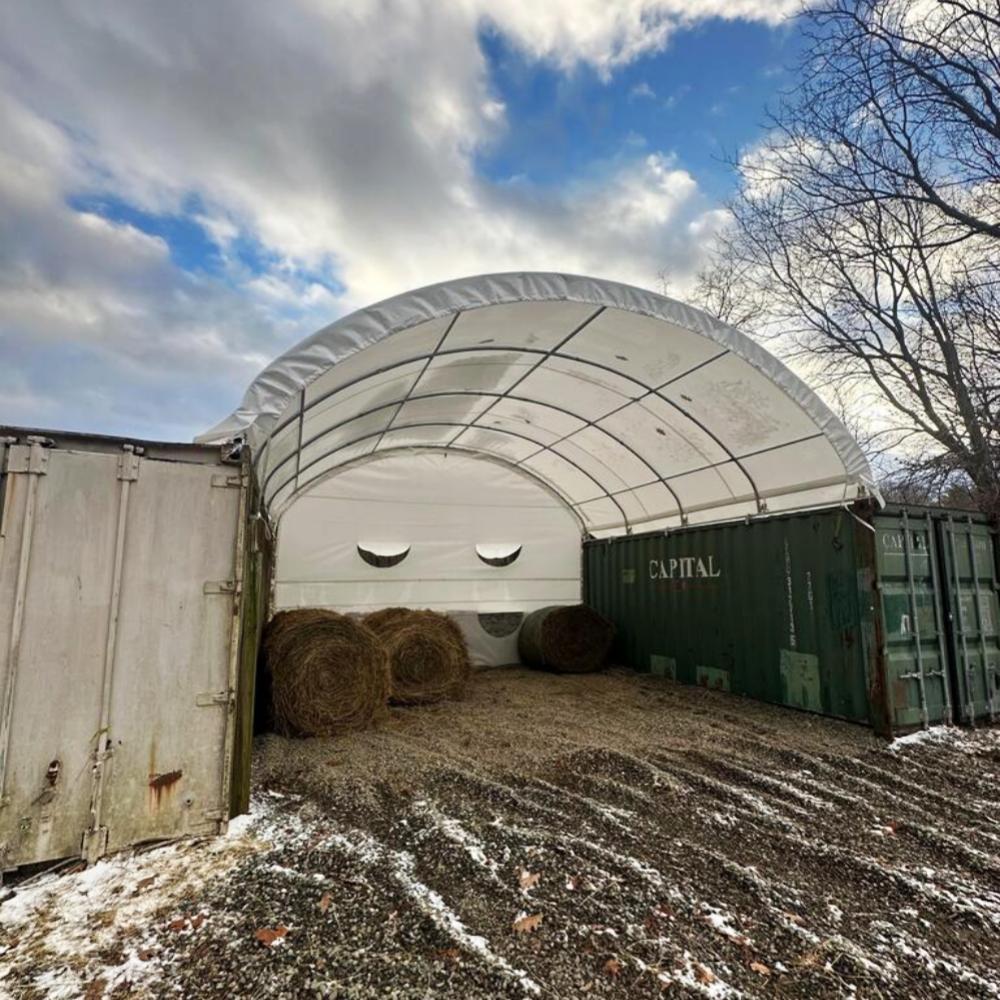

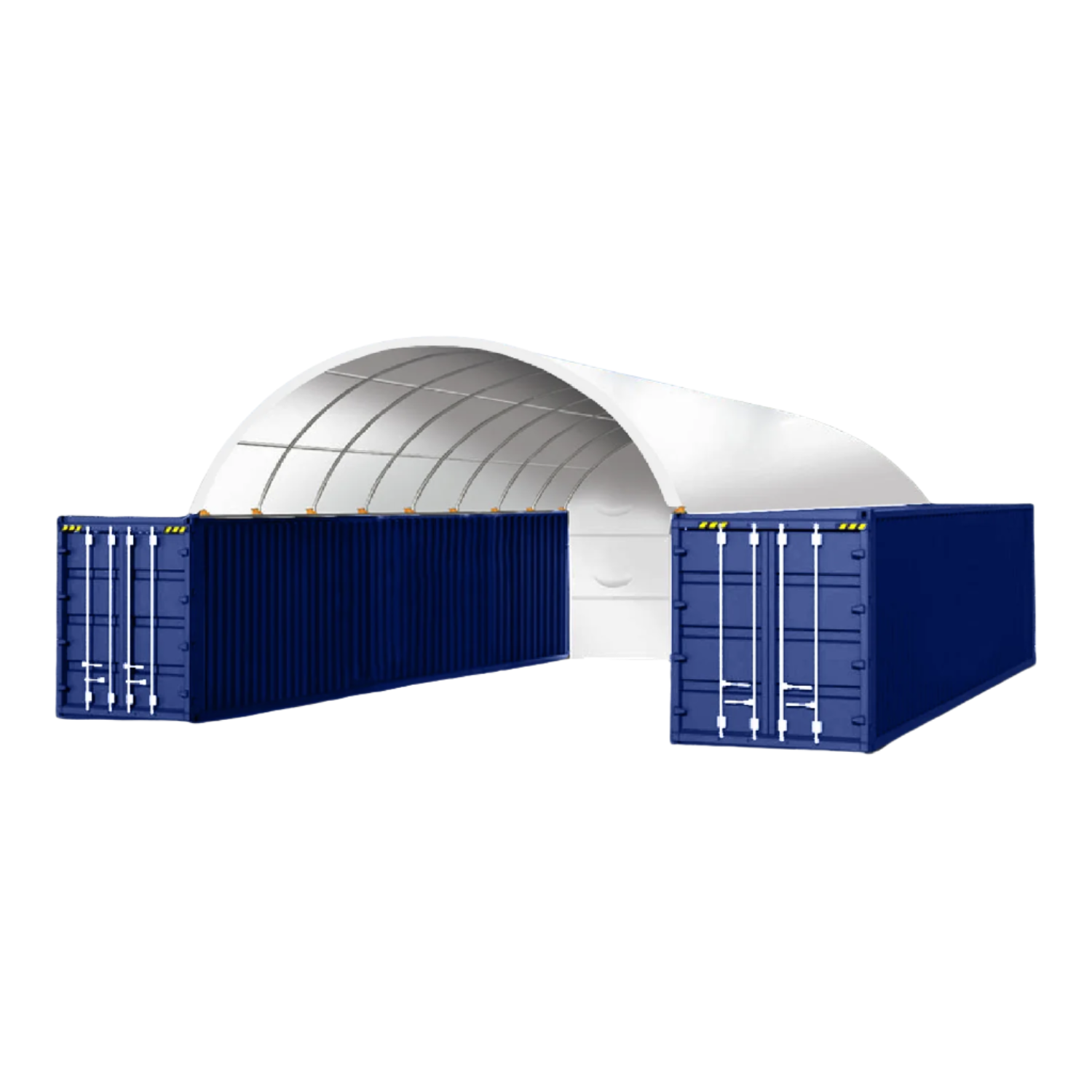

The 20x40 ft Container Shelter with Closed Back Panel boasts versatile tarpaulins in various materials and a robust PE back panel. This spacious, durable shelter provides excellent protection, making it ideal for diverse applications in any environment.
How to Install the Container Shelter?

| Description | Specifications |
| Model | C2040 Dome Container Shelter |

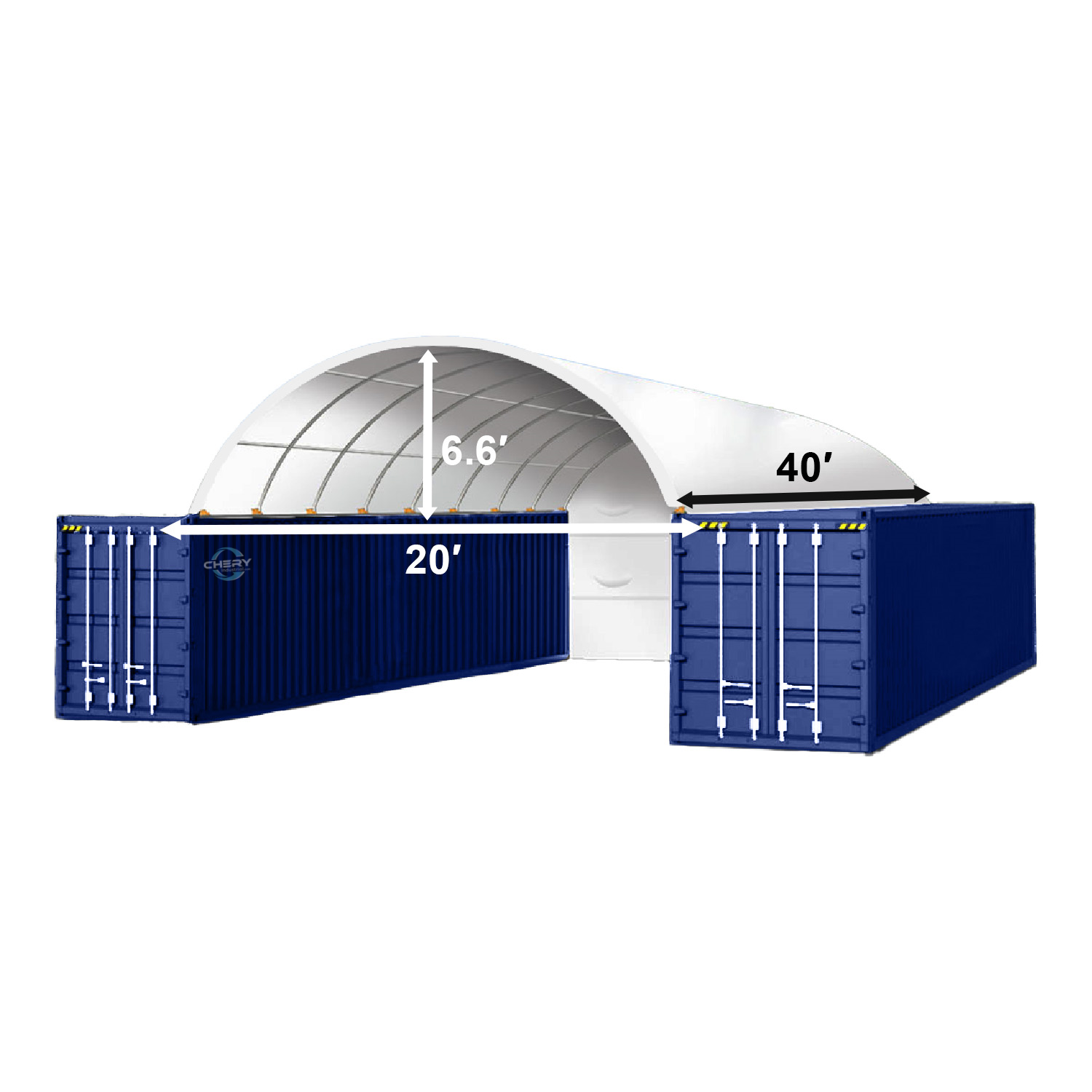

| Dimension (ft) | W20xL40xH6.6 |
| Frame | Single Truss Galvanized Tube |
| Steel Structure | High-Grade Hot Dip Galvanized Steel |
| Fabric |
|
| Fabric Feature | Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature resistance | -22 - +158 °F |
| Front/back walls (optional) | |
| Arch Interval | 5 ft |
| Arch Ø (mm) | Ø45x1.5 |
| Purlin Ø (mm) | Ø32x1.2 |
| Tension System | Pipe and Ratchet Tie-Down System |
| Easy Installation | Twist lock and clamp installation |

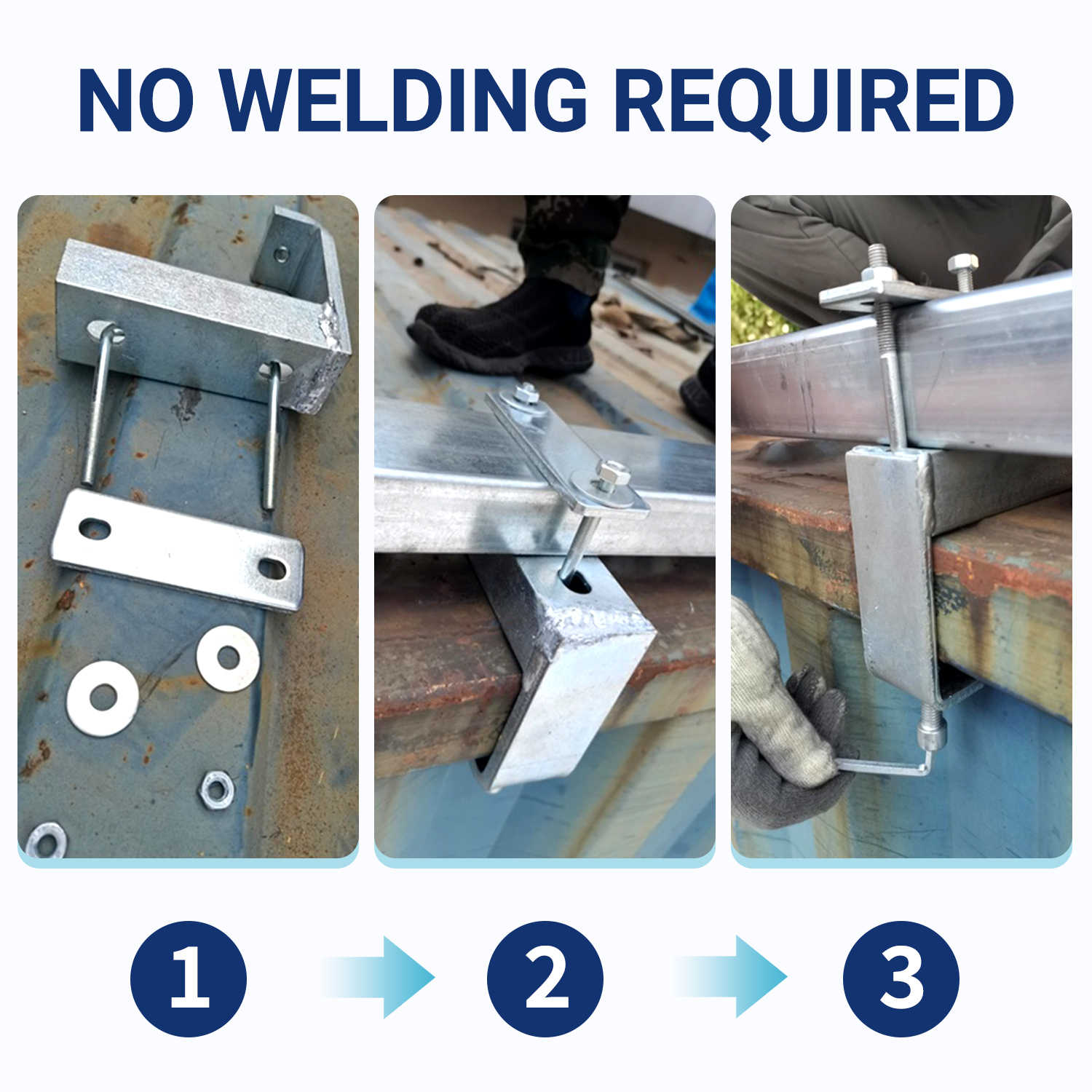

| Weld | No welding required |
| Snow Load | 48 lbs/ft² |
| Wind Load | 50 miles/h |
| Average assembly time for DIY with 4 persons | Max. 1 day |
| Safety | The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan | 15+ years |
| Warranty |
|
Box A:
Box B:
A forklift or equivalent is required for unloading.
