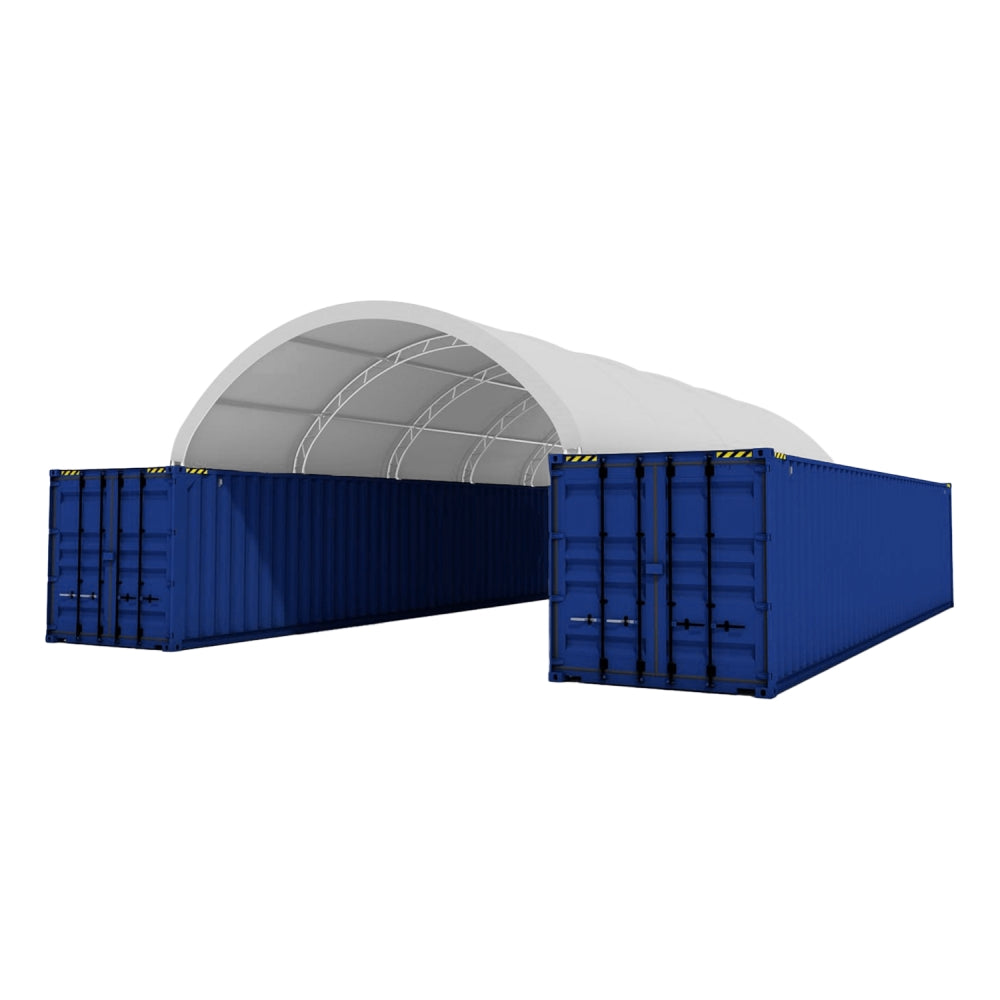

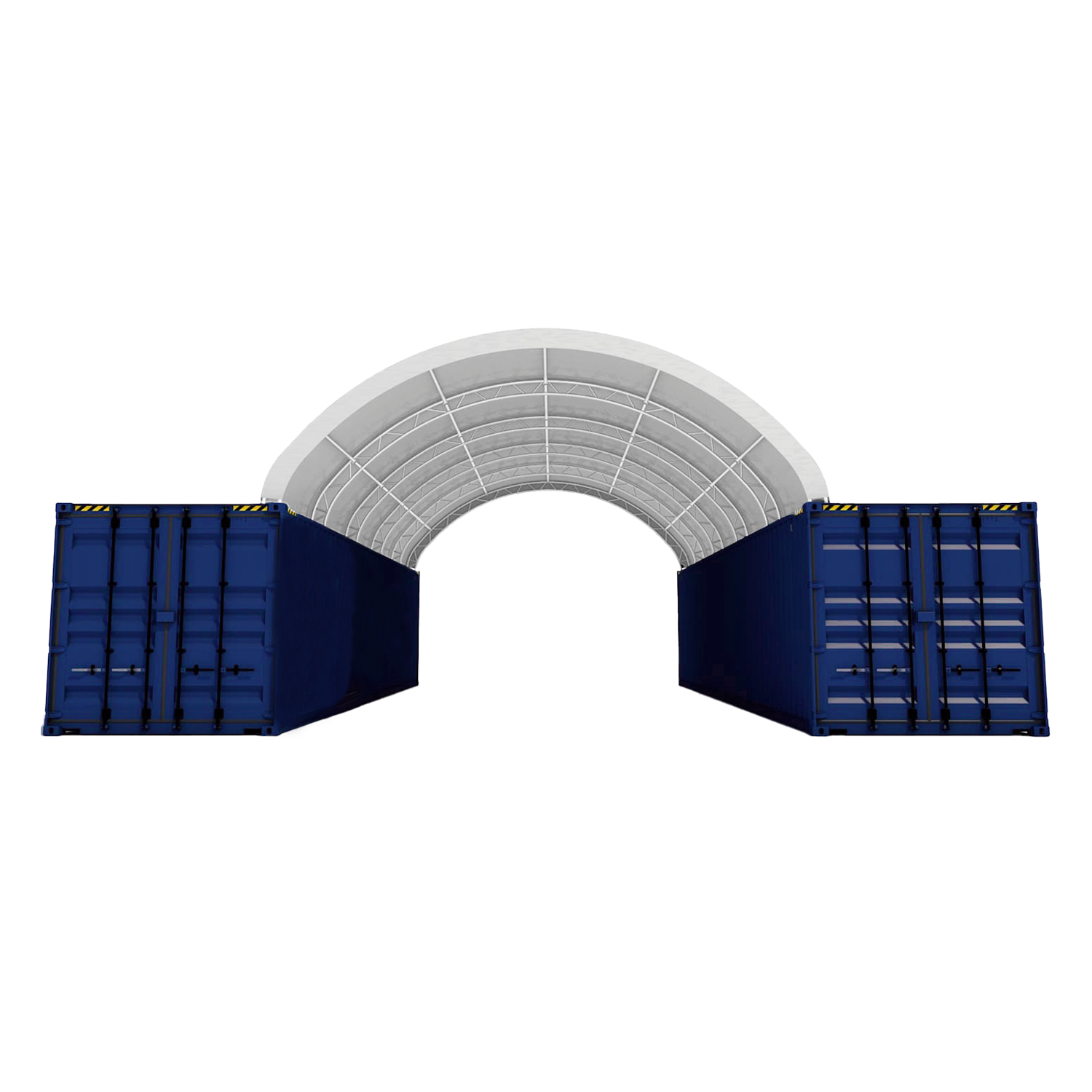

The 20'x40' Double Truss Container Shelter offers superior strength and durability for protecting equipment, vehicles, and materials. Built with a heavy-duty double truss frame, it ensures enhanced stability and weather resistance. Designed for easy installation on shipping containers, this shelter provides ample covered space, making it ideal for industrial, agricultural, and commercial applications. A reliable, long-term storage solution!
How to Install the Container Shelter?

| Description | Specifications |
| Model | C2040 Dome Container Shelter |

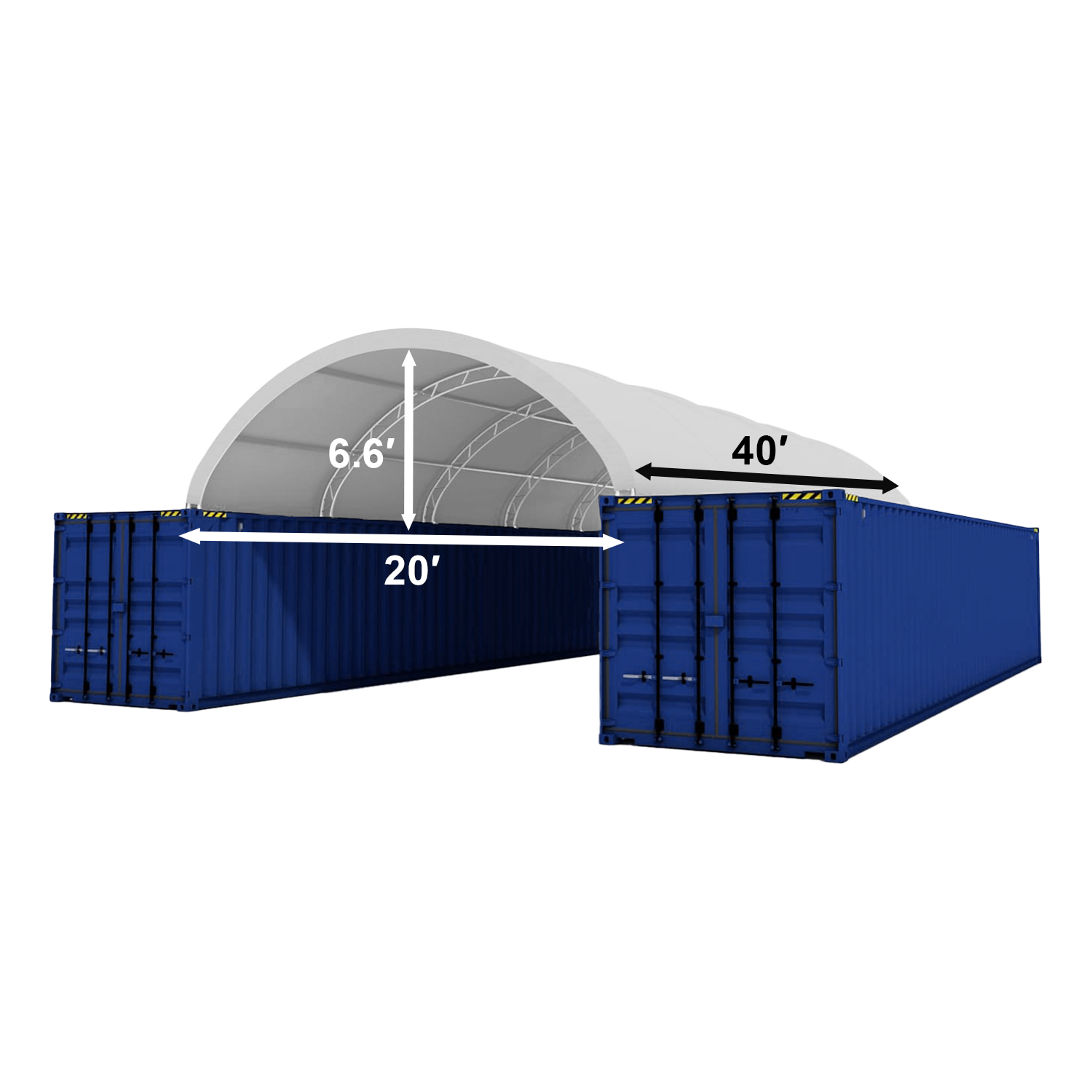

| Dimension (ft) | W20xL40xH6.6 |

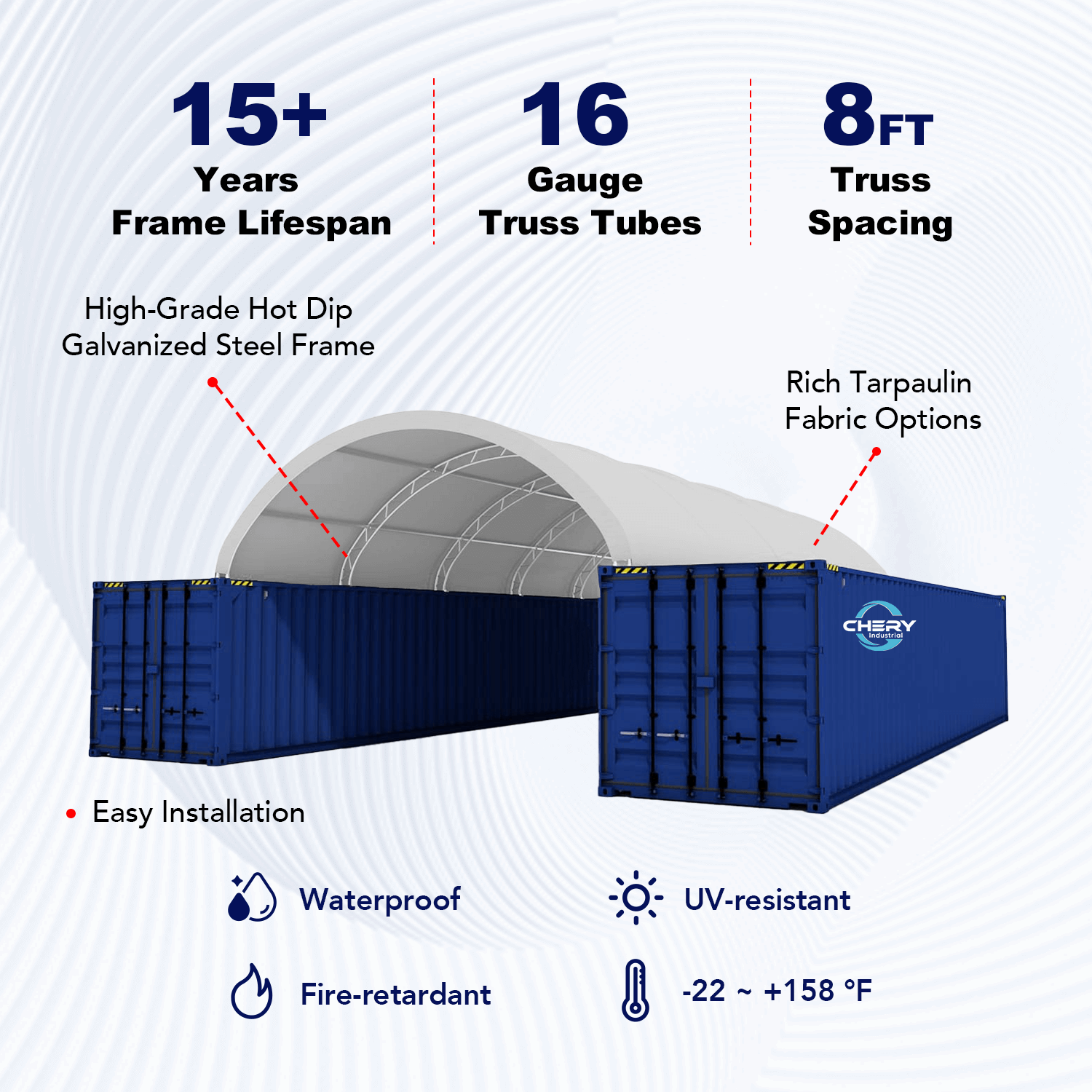

| Frame | Double Truss Galvanized Tube |
| Steel Structure | High-Grade Hot Dip Galvanized Steel |
| Fabric |
|
| Fabric Feature | Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature resistance | -22 - +158 °F |
| Front/back walls (optional) | |
| Arch Interval | 8 ft |
| Arch Ø (mm) | Ø45x1.5 |
| Purlin Ø (mm) | |
| Tension System | Pipe and Ratchet Tie-Down System |
| Easy Installation | Twist lock and clamp installation |
| Weld | |
| Average assembly time for DIY with 4 persons |
|
| Safety | The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan | 15+ years |
| Warranty |
|
(1) Keep the work area clean. Cluttered areas invite injuries.
(2) Keep children away. Be aware of personal safety.
(3) It is easy to assemble if according to our assembly manual. Improper assembly may cause unnecessary mistakes.
(4) Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during the hurricane.
(5) Clean off snow in time and do not allow snow to sit for extended periods of time.
(6) Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.
(7) This unit is supposed to be set up on the inner edge of the container, if you want to set up on the outer edge of the container, you will need extra support tubes.
C2040,20x40,20x40x6.6, shipping container storm shelter, canopy, container shelter, shipping container shelter, container canopy
