> Perc/Bifacial/HJT solar panels are available
>25 years warranty
> Highest quality with full certificates
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance.
Parallel PCB Board for Off Grid Solar Panel Off Grid Pure Sine Wave System Solar Inverter for Solar Homage
- Regular price
- $4,060.00
- Regular price
-
- Sale price
- $4,060.00
Couldn't load pickup availability
Details
- SKU: 102937363409
- Availability: In Stock
Description
Before order,Please Read Clearly!
Which solar power system is suitable for me?
Sunheed solar systems can be used in homes, offices, villas, hospitals, churches, etc.
Sunheed solar power is from 300w to 100MW,
if you don’t know which model system is suitable for you,
Sunheed solar systems can be used in homes, offices, villas, hospitals, churches, etc.
Sunheed solar power is from 300w to 100MW,
you can choose according to your own needs.
if you don’t know which model system is suitable for you,
you can Send us an inquiry.
Our 10 years experience sale manager will help you configure the system in 12hrs.
How to chose the suitable solar system?
★1.Chose solar system base on Installation area;
★2.Chose solar system base on your electricity bill;
★3.Chose solar system base on your home appliance capacity;
★4.Chose solar system base on your money/budget.
Send an inquiry, we can design a set of solar customized system that suits you best.
Our 10 years experience sale manager will help you configure the system in 12hrs.
How to chose the suitable solar system?
★1.Chose solar system base on Installation area;
★2.Chose solar system base on your electricity bill;
★3.Chose solar system base on your home appliance capacity;
★4.Chose solar system base on your money/budget.
Send an inquiry, we can design a set of solar customized system that suits you best.
Product Description
Solar Panels
Off Grid Solar Inverter
1. 120A MPPT solar charger inside, max pv input 6kw+ (27A )
2. With local wifi built inside (Requires App. Remote Wifi optional)
3. USB on-the-go function
4. Optional for parallel operation up to 9
2. With local wifi built inside (Requires App. Remote Wifi optional)
3. USB on-the-go function
4. Optional for parallel operation up to 9
units
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded,tubular,LiFePo4
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded,tubular,LiFePo4

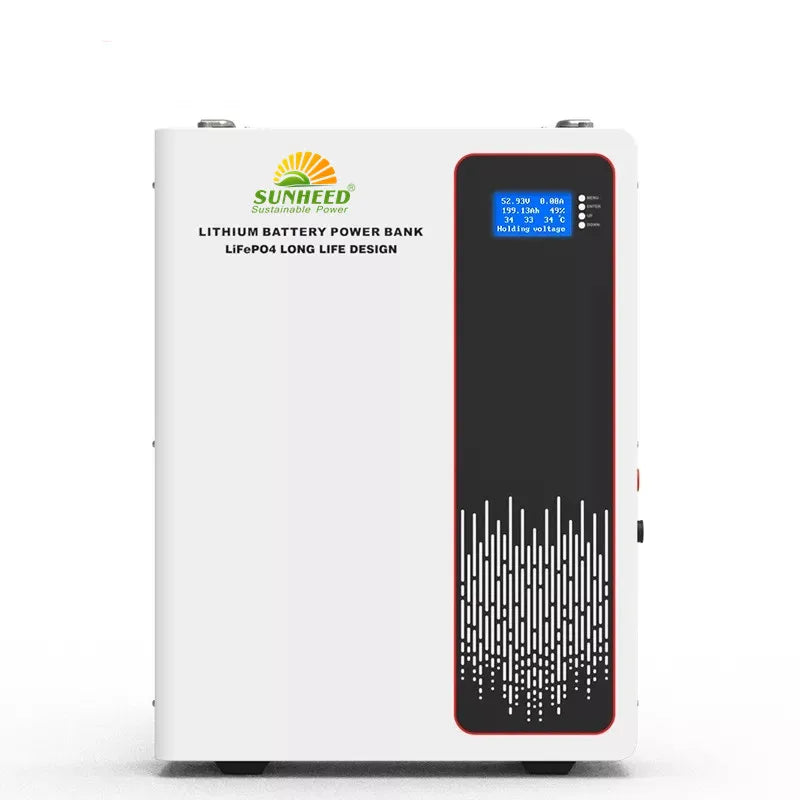

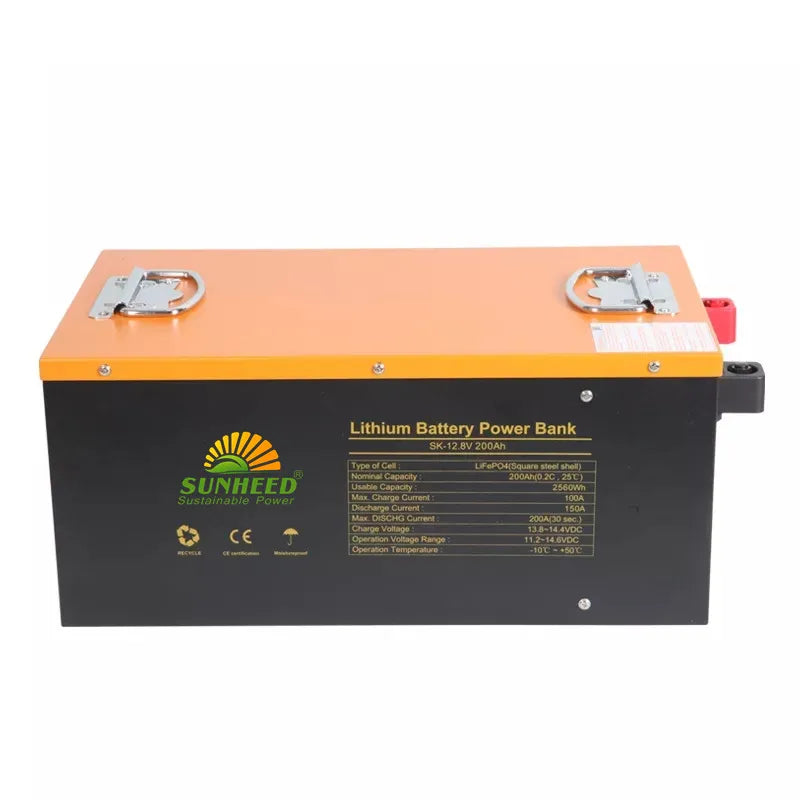

Solar Battery
> Lead-acid batteries > Lithium battery
> 2V,12V,48V Without a battery bank (or a generator) it'll be lights out by sunset.
A battery bank is essentially a group of batteries wired together

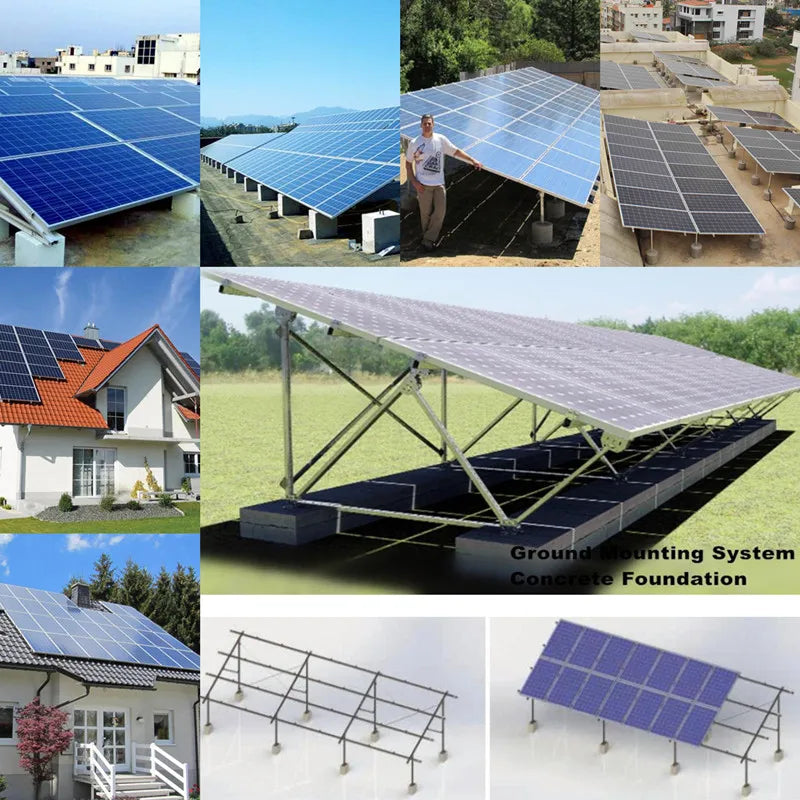

PV Mounting System
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

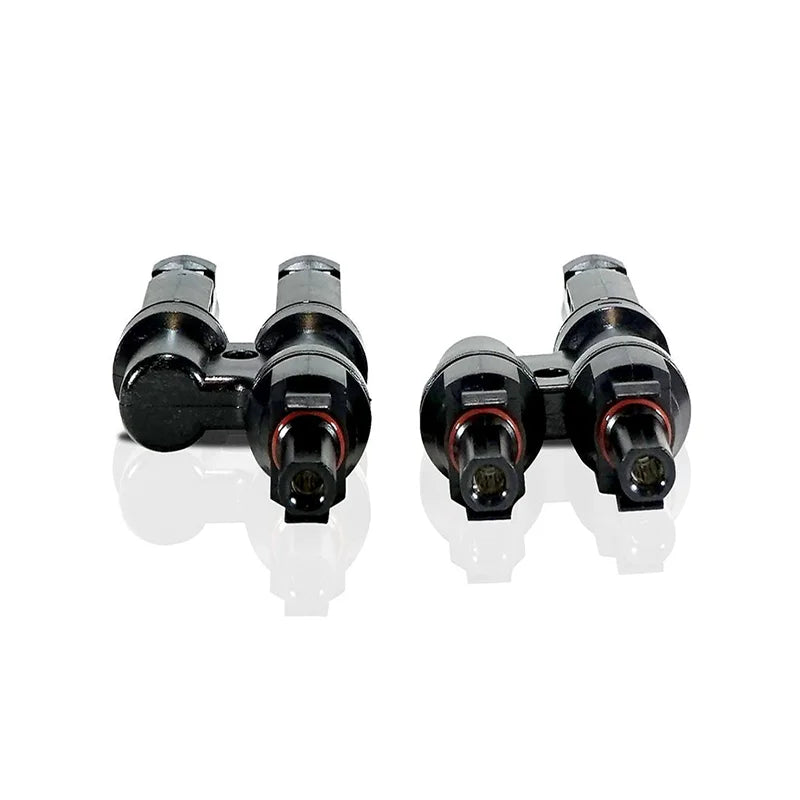

Accessories

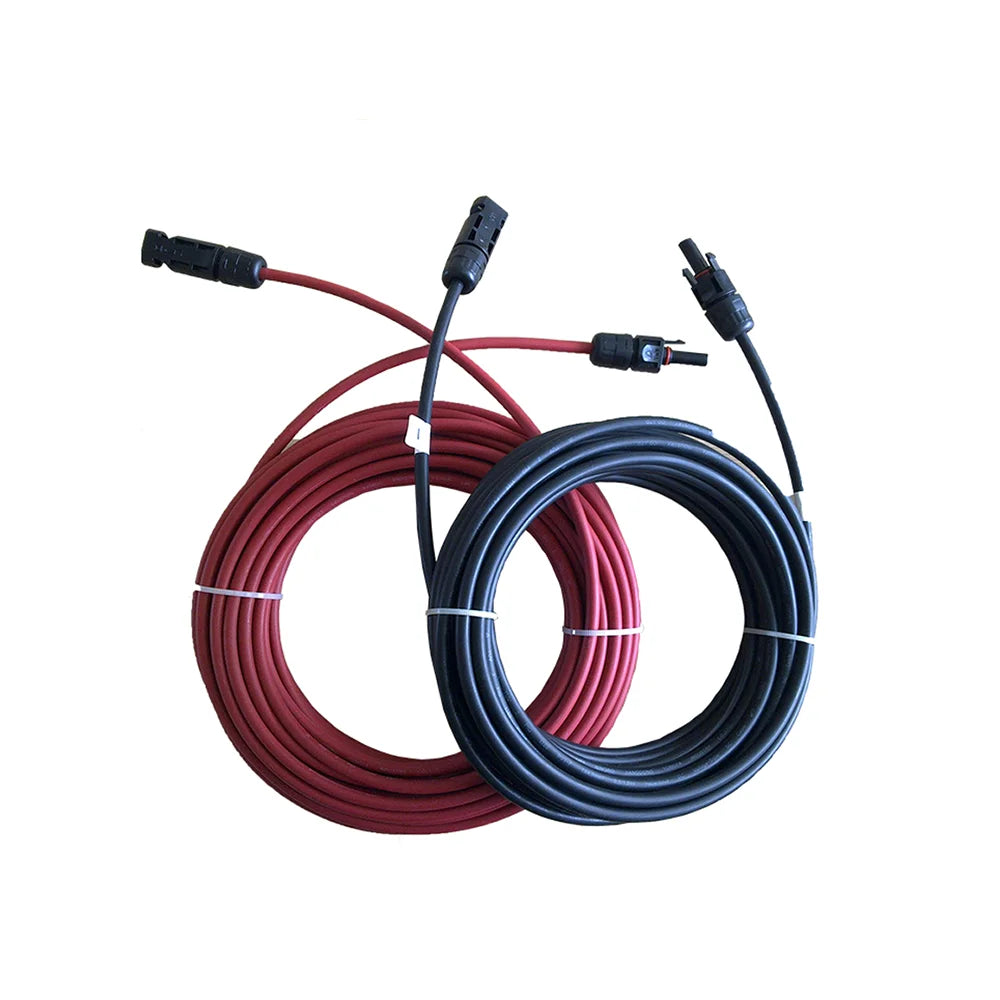

> PV Cable 4mm2 6mm2
> AC Cable
> DC Switches
> AC Breaker
> AC Cable
> DC Switches
> AC Breaker
6KW Off-grid Hybrid Inverter 120A MPPT 48Vdc Prue Sine Wave WITH CE CB IEC LCD+LED Display Solar FOR Power System Home
Main Features
1. 120A MPPT solar charger inside, max pv input 6kw+ (27A )
2. With local wifi built inside (Requires App. Remote Wifi optional)
3. USB on-the-go function
4. Optional for parallel operation up to 9 units
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded,tubular,LiFePo4
7. On grid and off grid solar inverter, support self-consumption and feed into the grid.
8. Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
9. Touch buttons on LCD display 10. Wide PV input range (Up to 450Vdc),
support no battery working during the day time.
3. USB on-the-go function
4. Optional for parallel operation up to 9 units
5. User programmable RGB lighting for different operation mode.
6. Smart battery management.Compitable with different types of batteries:Lead acid, AGM, Gel, flooded,tubular,LiFePo4
7. On grid and off grid solar inverter, support self-consumption and feed into the grid.
8. Various communication such as USB/RS232/RS485/dry contact/WIFI/ optional.
9. Touch buttons on LCD display 10. Wide PV input range (Up to 450Vdc),
support no battery working during the day time.
About the details and price ,feel free to contact with Customer service staff.Click Here.
Model No. |
SUNNYPOLO 6KVA |
|
Basical information |
||
Max. PV Input Power |
6000W |
|
Rated AC Output Power |
6000W |
|
Grid-Tie Operation |
||
PV Input (DC) |
||
Nominal DC Volt/Max DC Voltage |
360VDC/500VDC |
|
Start-up Voltage/Initial Feeding Voltage |
120VDC |
|
MPPT Voltage Range |
120-450VDC |
|
No. of MPPT Tracker/Max. Input Current |
1/27A |
|
Grid Output (AC) |
||
Nominal Output Volt |
230Vac, Single Phase (dual AC output) |
|
Output Voltage Range |
184V-265Vac or 195-253V (Selectable) |
|
Nominal Output Current |
26.0A |
|
Power Factor |
>0.9 |
|
Efficiency |
||
Max. Conversion Efficiency (DC/AC) |
96% |
|
Off-Grid Operation |
||
AC Input (AC) |
||
AC Start-up Voltage/Auto Restart Volt. |
120Vac-140Vac/180Vac |
|
Acceptable Input Voltage Range |
90-280Vac or 170-280Vac |
|
Max. AC Input Current |
40A |
|
PV Input (DC) |
||
Max. DC Voltage |
500VDC |
|
MPPT Voltage Range |
120-450VDC |
|
No. of MPPT Tracker/Max. Input Current |
1/27A |
|
Grid Tie Mode |
||
Nominal Output Volt |
220Vac/230Vac/240Vac, Single Phase |
|
Feed-in Voltage Range |
184V-265Vac |
|
Max Efficiency DC/AC |
>95% |
|
Battery Mode Output |
||
Nominal Output Volt |
220Vac/230Vac/240Vac (dual AC output) |
|
DC output |
1pc*12Vdc/10A Max |
|
Waveform |
Pure sine wave |
|
Efficiency(DC to AC) |
93% |
|
Hybrid Operation |
||
PV Input (DC) |
||
Nominal DC Volt/Max DC Voltage |
360VDC/500VDC |
|
Start-up Voltage/Initial Feeding Voltage |
120VDC |
|
MPPT Voltage Range |
120-450VDC |
|
No. of MPPT Tracker/Max. Input Current |
1/27A |
|
Grid Output (AC) |
||
Nominal Output Volt |
220Vac/230Vac/240Vac, Single Phase (dual AC output) |
|
Output Voltage Range |
184V-265Vac or 195-253V (Selectable) |
|
Nominal Output Current |
26.0A |
|
AC Input (AC) |
||
AC Start-up Voltage/Auto Restart Volt. |
120Vac-140Vac/180Vac |
|
Acceptable Input Voltage Range |
90-280Vac or 170-280Vac |
|
Max. AC Input Current |
40A |
|
Battery Mode Output |
||
Nominal Output Volt |
220Vac/230Vac/240Vac (dual AC output) |
|
DC output |
1pc*12Vdc/10A Max |
|
Waveform |
Pure sine wave |
|
Efficiency(DC to AC) |
93% |
|
Battery & Charger |
||
Battery Type Supported |
Lead Acid/VRLA/AGM/GEL/Flooded/Tubular/LiFePO4 |
|
Nominal Battery Voltage |
48Vdc |
|
Max Solar Charge Current |
120A |
|
Max AC Charge Current |
120A |
|
Max Total Charge Current |
120A |
|
General |
||
Physical |
||
Products Dimension,D X W X H (mm) |
456*303*148 |
|
Product Net Weight(kgs) |
12 |
|
Packing Dimension,D X W X H (mm) |
535mm*382*mm*224mm,1PC/CTN |
|
Gross Weight(kgs) |
13.5 |
|
Parallel functions Optional |
Yes, optional, max 9pcs |
|
Communication Interface |
RS232,USB,RS485,WIFI |
|
Environment |
||
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature |
-10℃ to 50℃ |
|
Storage Temperature |
-15℃ to 60℃ |
|
Production & QC
1.Visual Inspection
Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the
previous process
2.EL Testing
3. Flash Testing
4. Pre-Packing Testing
5. International Certification Examining
Authoritative certification companies conduct rigorous testing to ensure that product quality meets first-class international
certification.
certification.
Company Profile
DONGGUAN SUNHEED NEW ENERGY TECHNOLOGY CO., LTD) found in 2019, now is a leading manufacturer in china, specialize in lithium battery.
SUNHEED has is the best lithium iron phosphate battery, known as LiFePO4, solution provider in Lithium battery industry.
SUNHEED has is the best lithium iron phosphate battery, known as LiFePO4, solution provider in Lithium battery industry.
SUNHEED has 5 factories, all equiped with international high accurate and automatic production line. Our annual output reach 10,000,000ah Per year.
SUNHEED produce 3.2v Lithium battery cells from 10ah up to 271ah from scratch. And we also design our own BMS that perfectly match our battery cells to meet various requirements for clients.Lithium Battery Pack voltage from 12v up to 96v, capacity from 10ah up to 1000ah.
SUNHEED has earned a highly reputation during the past years, we have customers in North America, Europe and Australia, all speak highly of our lithium battery. And has a long term and very smooth coopeation with us for mutual benefit.
Our lithium battery is designed to perfectly for solar energy storeage, solar off grid power backup supply, RV campers, Marine Boat and Ship, Electric forklift, AGV, Golf Carts, Portable Power bank, Telecome base station, E-Car charging station, home battery energy storage etc.
SUNHEED has earned a highly reputation during the past years, we have customers in North America, Europe and Australia, all speak highly of our lithium battery. And has a long term and very smooth coopeation with us for mutual benefit.
Our lithium battery is designed to perfectly for solar energy storeage, solar off grid power backup supply, RV campers, Marine Boat and Ship, Electric forklift, AGV, Golf Carts, Portable Power bank, Telecome base station, E-Car charging station, home battery energy storage etc.
We offer Good price with Top quality for clients. We now are looking for distributors and business partners to develop
international market together. We offer very competitive Price for you. Contact us for details Now!
international market together. We offer very competitive Price for you. Contact us for details Now!
Projects Show
Packing & Delivery
Customer Photos
FAQ
More than 50 countries have installed SUNHEED PV Modules and Solar Systems all over the world.
Q: How much power solar energy systems can you provide?
Q: How much power solar energy systems can you provide?
A: Home solar energy systems 1-50KW, and we also provide higher wattage commercial and industrial solar power systems.
Q: Can you offer On Grid and Off Grid solar power systems?
A: Yes, we produce On Grid solar power systems, Off Grid solar power systems and also provide Hybrid solar power systems.
Q: Who is your service customer?
A: Individual client for house solar systems; distributor; importer and solar energy system installer.
Q: What certificate do you offer?
A: CE, IEC, CEC, ISO, INMETRO
Q: What is your warranty and after-sales policy?
A: Your order products will be guaranteed for 10 years, and solar panel warranty is 25 years.
