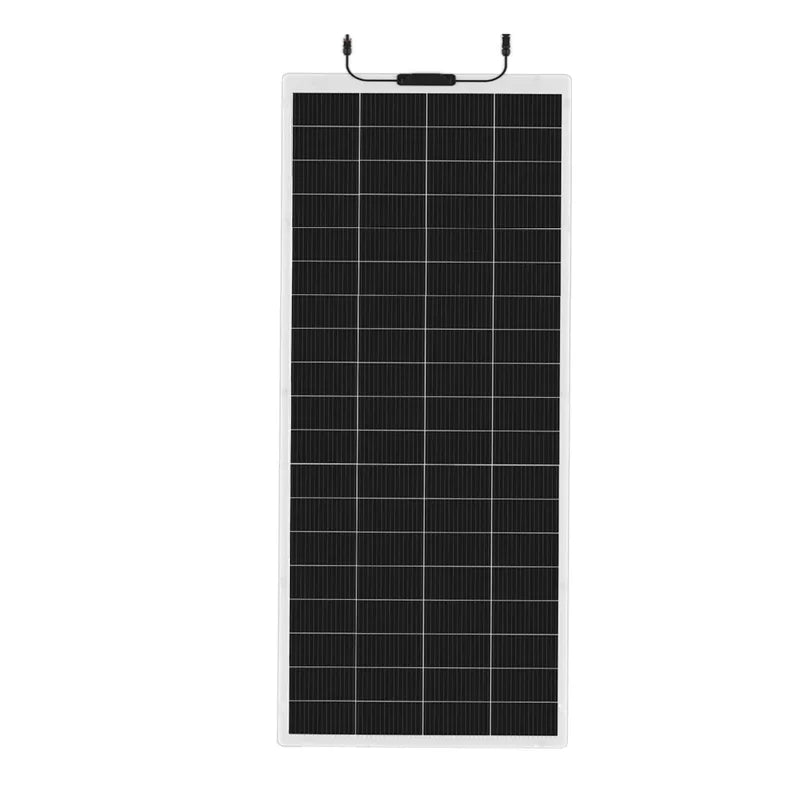

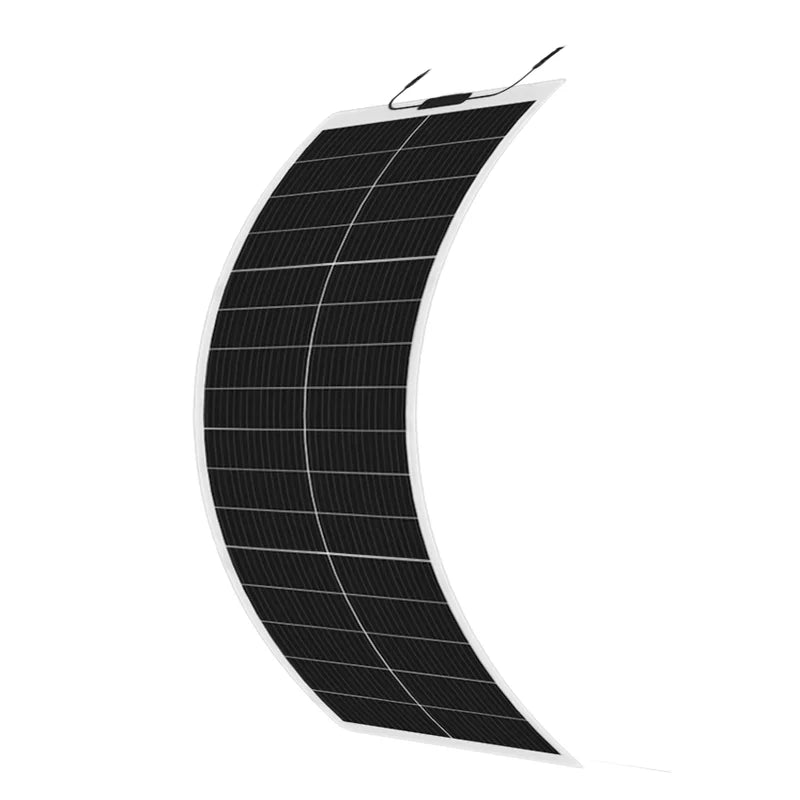

Factory Price 200W Cigs Flexible Solar Panel Charger Flexible Solar Panels 1000W for Car Roof
- Regular price
- $153.00
- Regular price
-
- Sale price
- $153.00
Couldn't load pickup availability
Details
- SKU: 106086759367
- Availability: In Stock
Description
Product Description
Raygleam Flexible panel use unique shingled cells technology. The panel made with conducting resin paste without ribbon to
minimizes the optical and resistive losses, improve mechanical load to flexing over 30 degrees, and are able to withstand harsh
weather conditions and are almost impervious to corrosion.
minimizes the optical and resistive losses, improve mechanical load to flexing over 30 degrees, and are able to withstand harsh
weather conditions and are almost impervious to corrosion.
Key Features
★ The latest Shingled PERC solar cells technology.

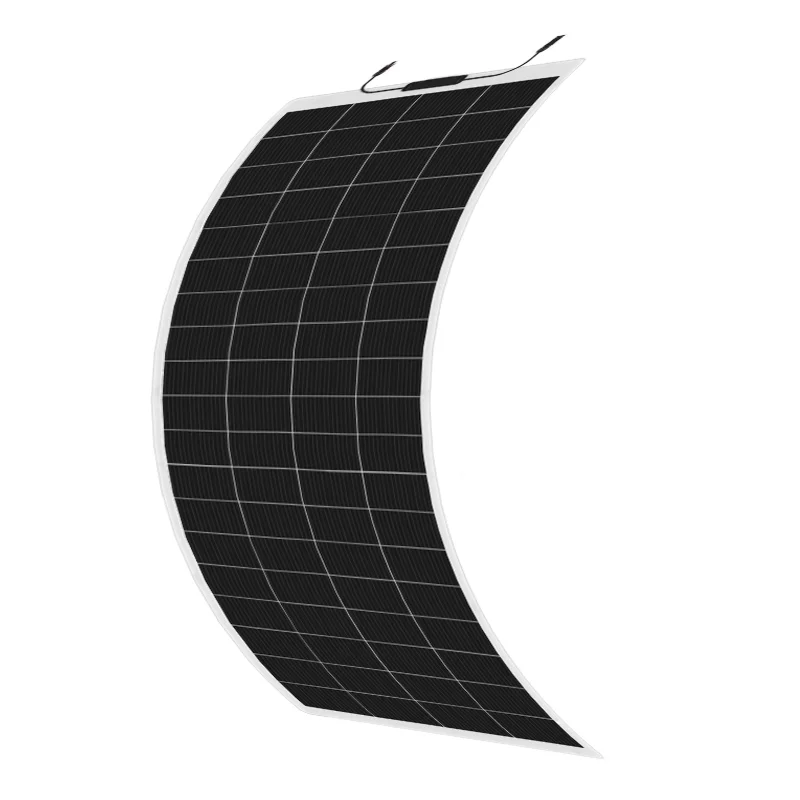

★ Over 30 degrees of ultimate bending no cells cracks.
★ Improved 15~20% power of output than the traditional panel.
★ Minimizes the optical and resistive losses.
★ 10 years workmanship and materials warranty.
★ OEM and ODM supported.
★ Improved 15~20% power of output than the traditional panel.
★ Minimizes the optical and resistive losses.
★ 10 years workmanship and materials warranty.
★ OEM and ODM supported.
Specification
Typical Electrical Data |
||
at STC: lrradiance 1000 W/m2 module temperature 25°C AM=1.5; |
||
Model |
RG-FLX200M-C |
|
Pmax (W) |
200W |
|
Power Tolerance |
0 ~ +3% |
|
Vmp (V) |
24.36 |
|
Imp (A) |
8.21 |
|
Voc (V) |
28.56 |
|
Isc (A) |
8.71 |
|
Working Temperature |
-40°C ~+ 85°C |
|
Nominal Operating cell temperatures |
45± 2°C |
|
Temperature coefficient of Pmax |
-0.4%/ °C |
|
Temperature coefficient of Voc |
-0.3 %/ °C |
|
Temperature coefficient of Isc |
0.06 %/ °C |
|
Temperature coefficient of Vmpp |
-0.35 %/ °C |
|
Nominal Voltage |
12V |
|
Max. System Voltage |
1000Vdc |
|
Max. Fusing Current |
10A |
|
Mechanical Data |
||
Cells Type |
Prime Monocrystalline Topcon solar cells |
|
Module Dimensions (L/W/H) (mm) |
1570*680*2 |
|
Module weight |
4.2 kg |
|
Cell's Efficiency |
21.40% |
|

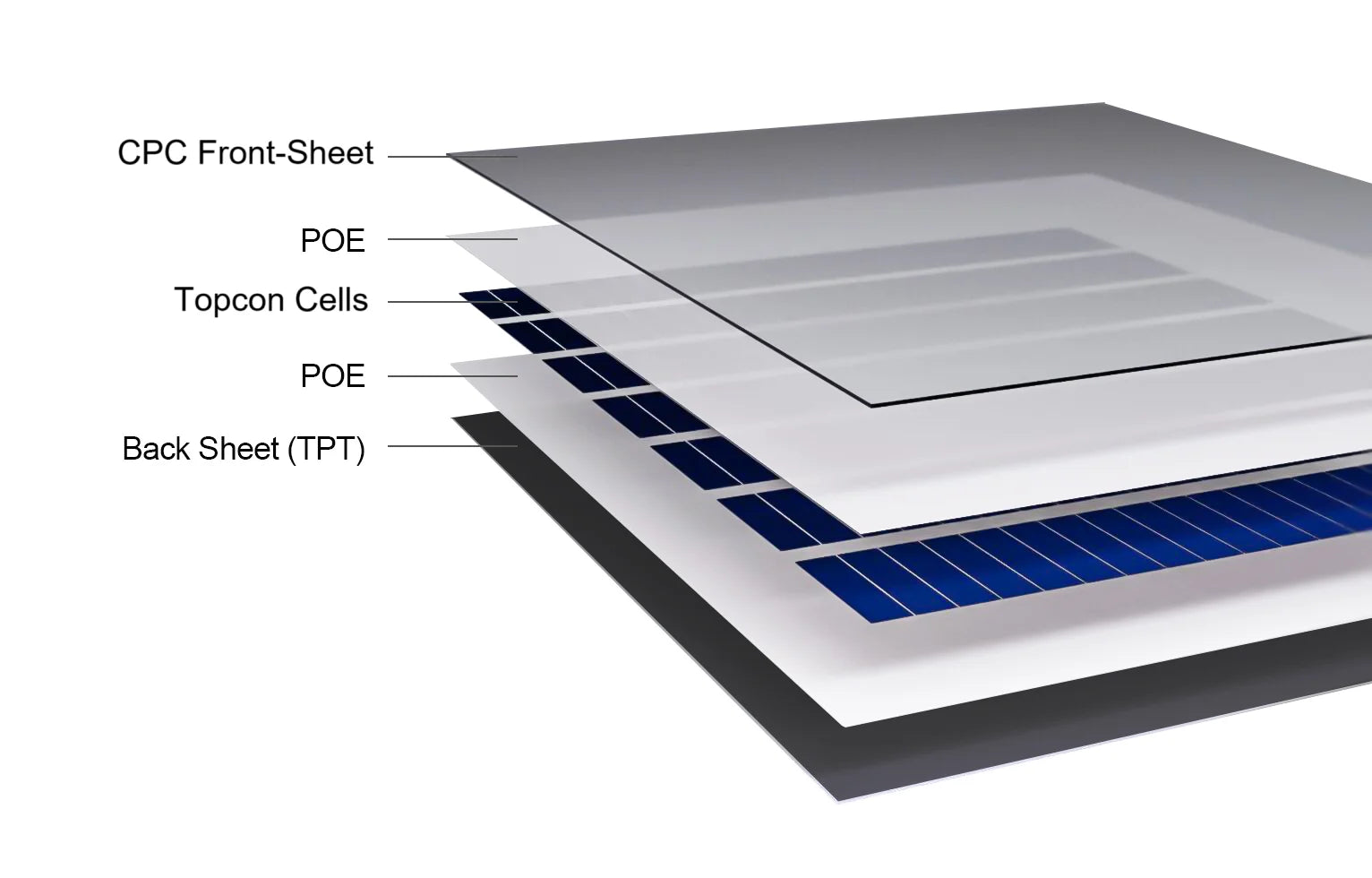

Front Cover (material/ thickness) |
Higher Strength TPT/ETFE/ 2.2mm |
|
Back Sheet (color) |
White/ Black |
|
Bending Range |
≤30° |
|
Junction Box (protection degree) |
≧IP65/IP68 with by-pass diode |
|
Cables & Connectors |
900mm/2.5mm2/MC4 compatible/IP68 |
|
Product Details
Product packaging

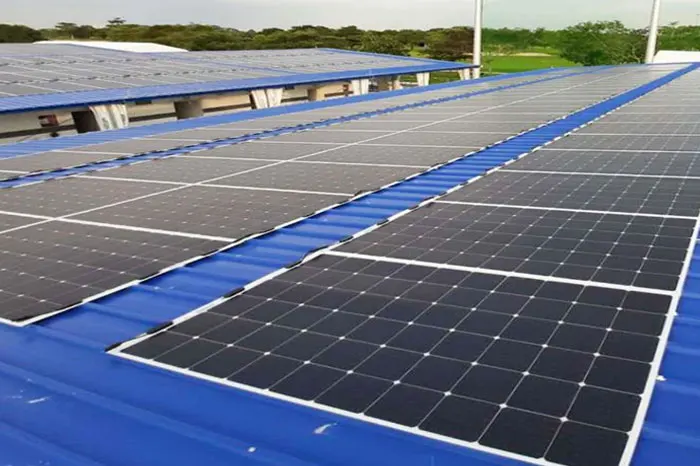

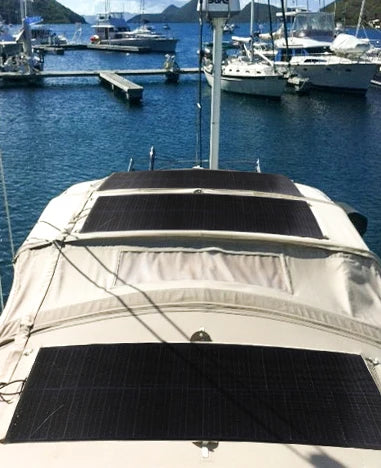

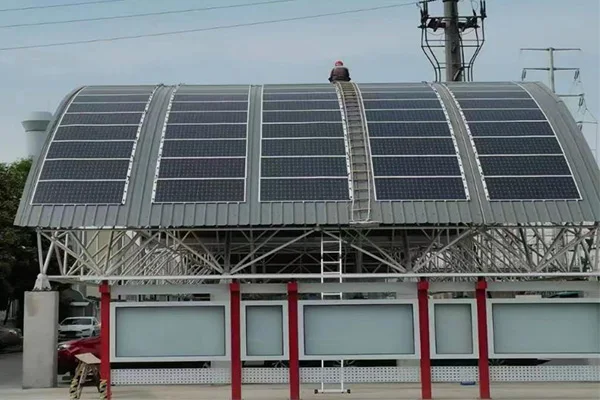

Application

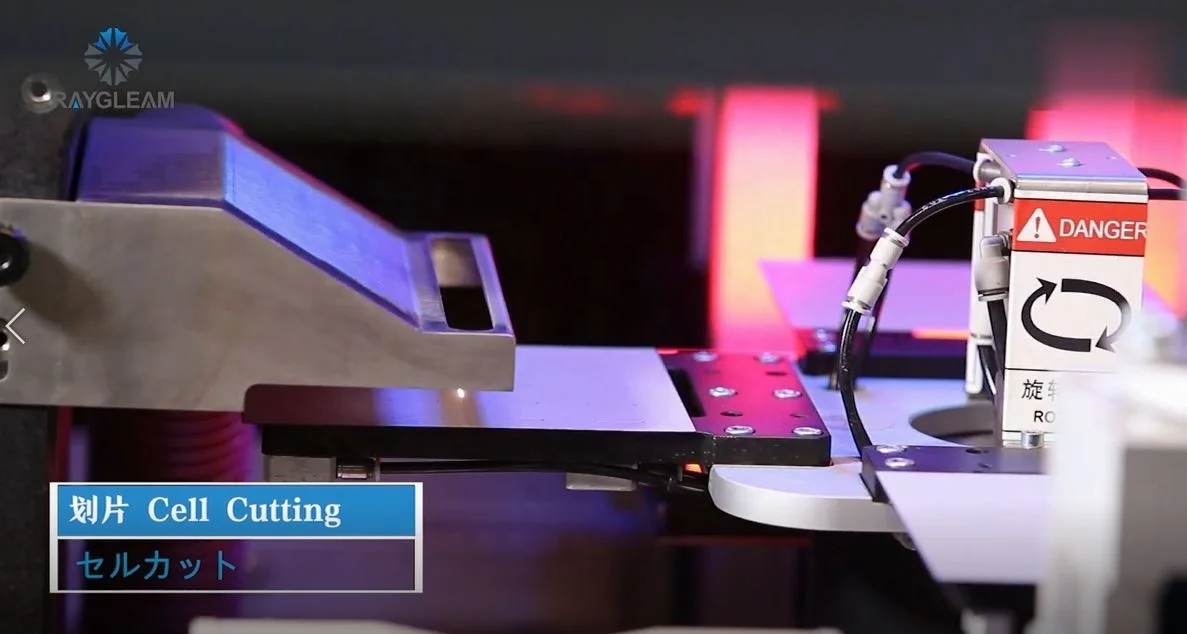

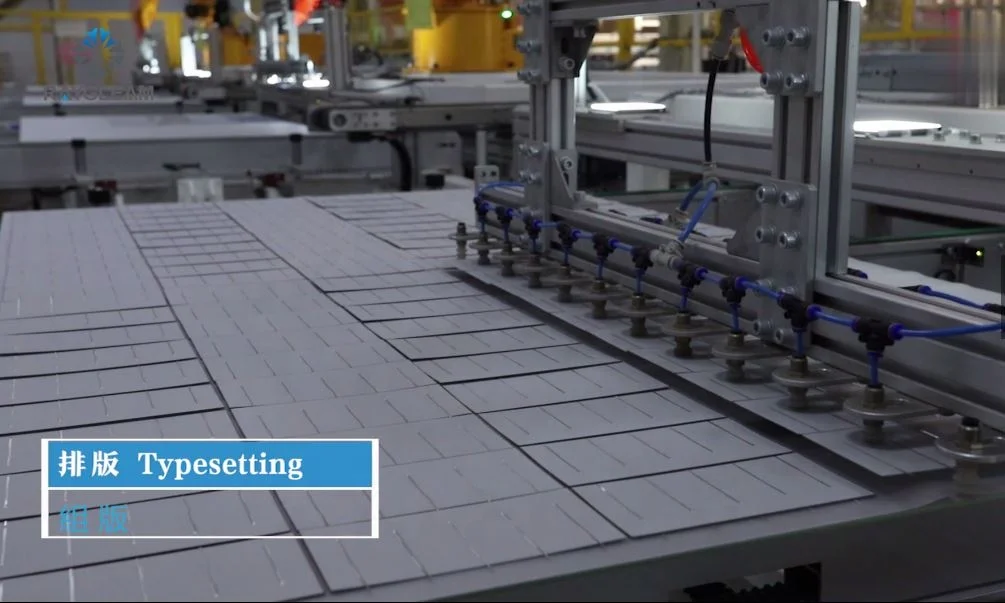

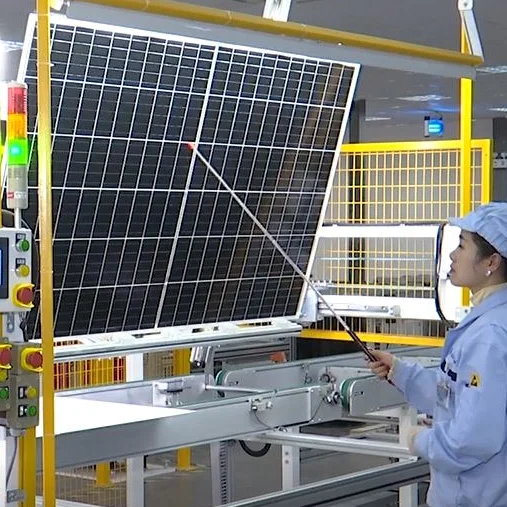

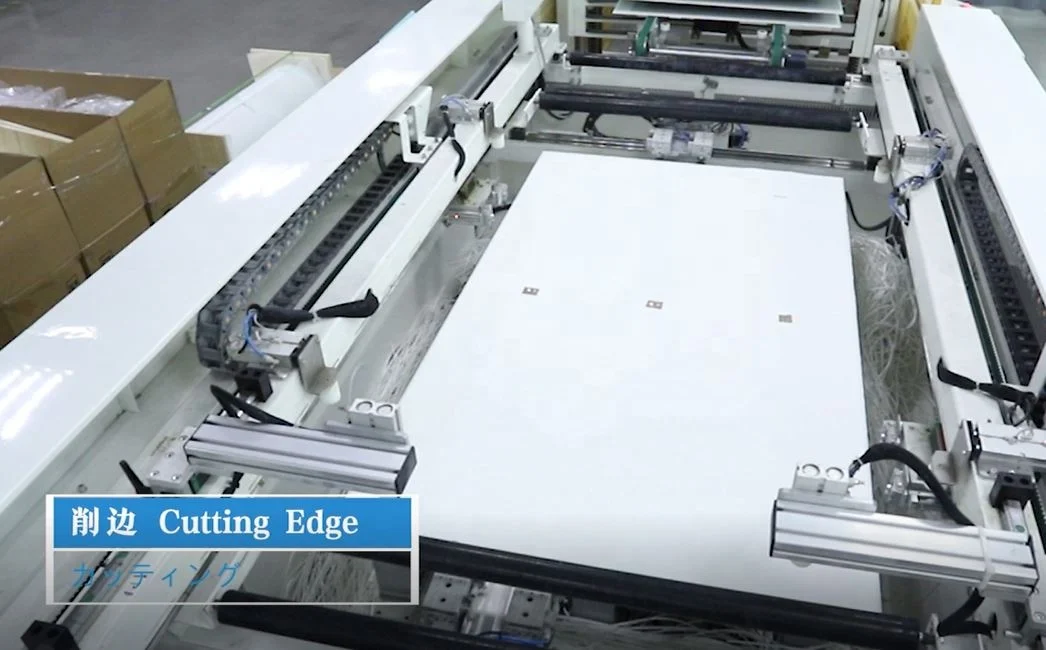

Factory Views
