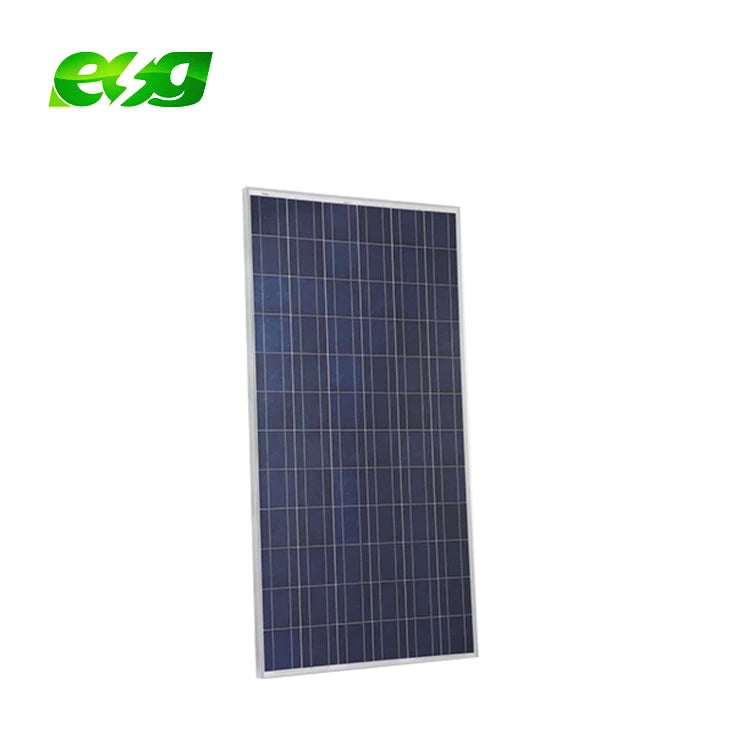

ESG Solar Sunpower Solar Power Panel 280w 285w 290w Solar Panel Polycrystalline Photovoltaic Manufacturers in China
- Regular price
- $125.05
- Regular price
-
- Sale price
- $125.05
Couldn't load pickup availability
Details
- SKU: 106480431106
- Availability: In Stock
Description
ESG solar sunpower solar power panel 280w 285w 290w solar panel polycrystalline photovoltaic manufacturers in china
Why Choose Us？
ESG solar sunpower solar power panel 280w 285w 290w solar panel polycrystalline photovoltaic manufacturers in china
ESG solar sunpower solar power panel 280w 285w 290w solar panel polycrystalline photovoltaic manufacturers in china
Products Description

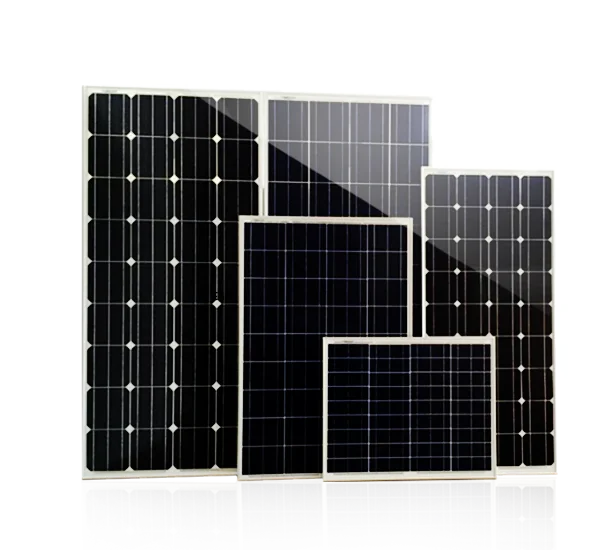

ESG 5W-300WPV Poly-Crystalline Solar Module & Mono -
Crystalline Solar Module
Crystalline Solar Module
Model |
ESG5W |
ESG10W |
ESG20W |
ESG30W |
ESG40W |
ESG50W |
|||||
Peak Power Watts(Pmax/W) |
5W |
10W |
20W |
30W |
40W |
50W |
|||||
Maximum Power Voltage(Vmp)[V] |
18.57 |
18.57 |
18.82 |
17.8 |
17.8 |
17.8 |
|||||
Open Circuit Voltage(Voc) [V] |
22.64 |
22.64 |
22.58 |
22.2 |
22.3 |
22.4 |
|||||
Maximum Power Current(Imp) [A] |
0.27 |
0.54 |
1.08 |
1.686 |
2.248 |
2.809 |
|||||
Short Circuit Current(Isc) [A] |
0.29 |
0.58 |
1.19 |
1.801 |
2.392 |
3.017 |
|||||
Power Output Tolerance[W] |
0~+3% |
||||||||||
Model |
ESG60W |
ESG70W |
ESG80W |
ESG90W |
ESG100W |
ESG110W |
|||||
Peak Power Watts(Pmax/W) |
60W |
70W |
80W |
90W |
100W |
110W |
|||||
Maximum Power Voltage(Vmp)[V] |
17.6 |
17.79 |
17.79 |
18.6 |
18.6 |
18.6 |
|||||
Open Circuit Voltage(Voc) [V] |
22 |
21.75 |
21.75 |
22.3 |
22.6 |
22.6 |
|||||
Maximum Power Current(Imp) [A] |
3.41 |
5.43 |
4.78 |
4.89 |
5.43 |
5.91 |
|||||
Short Circuit Current(Isc) [A] |
3.685 |
5.01 |
5.01 |
5.28 |
5.37 |
6.39 |
|||||
Power Output Tolerance[W] |
0~+3% |
||||||||||
Model |
ESG200W |
ESG300W |
ESG400W |
ESG500W |
|||
Peak Power Watts(Pmax/W) |
200W |
300W |
400W |
500W |
|||
Maximum Power Voltage(Vmp)[V] |
38.4 |
37.1 |
41.1 |
43.7 |
|||
Open Circuit Voltage(Voc) [V] |
45.5 |
36.72 |
49.3 |
50.7 |
|||
Maximum Power Current(Imp) [A] |
5.21 |
6.73 |
9.49 |
10.50 |
|||
Short Circuit Current(Isc) [A] |
5.64 |
10.54 |
10.12 |
10.67 |
|||
Power Output Tolerance[W] |
0~+3% |
||||||
GLASS
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
TEVA
>91% Higher Transmittance EVA,
>Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
>91% Higher Transmittance EVA,
>Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
Junction Box, Cable and MC4
> IP67 Waterproof, Closed
> 4mm2, 6mm2 Wire Size Range
> -40 ℃ to +85 ℃ Temperature Range
> Innovative full-glue-filled junction box Outstanding sealability
> IP67 Waterproof, Closed
> 4mm2, 6mm2 Wire Size Range
> -40 ℃ to +85 ℃ Temperature Range
> Innovative full-glue-filled junction box Outstanding sealability
Specifications
1.Solar panels: from 5W to 310W
2.Solar panel warranty: output power is not less than 90% within 10 years and more than 80% within 25 years.
3.Our solar modules have passed many certificates like TUV, CE, ROHS, ISO, IECetc.
4.Cost of photovoltaic modules: We can get best prices by giving large orders to solar photovoltaic cells and raw material
suppliers .

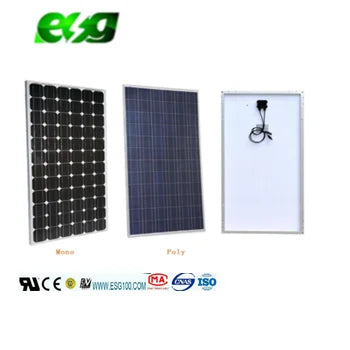

5.Solar cell technology: either Mono-Si or Poly-Si is available.
6.Solar panel efficiency: not less than 15%
7.Power torlerance of PV modules: ± 3%
8.Overall quality of our soalr panels: Tidy joined, anodized corners and aluminum frames make our photovoltaic modules more time
consuming.
9.Back sheet: With excellent strength, wether resistance, UV resistance and moisture barrier properties, the backing sheet is
used.
to protect solar cells of photovoltaic modules.
10.Reasonable mumbers of all temperature coefficients.
2.Solar panel warranty: output power is not less than 90% within 10 years and more than 80% within 25 years.
3.Our solar modules have passed many certificates like TUV, CE, ROHS, ISO, IECetc.
4.Cost of photovoltaic modules: We can get best prices by giving large orders to solar photovoltaic cells and raw material
suppliers .
5.Solar cell technology: either Mono-Si or Poly-Si is available.
6.Solar panel efficiency: not less than 15%
7.Power torlerance of PV modules: ± 3%
8.Overall quality of our soalr panels: Tidy joined, anodized corners and aluminum frames make our photovoltaic modules more time
consuming.
9.Back sheet: With excellent strength, wether resistance, UV resistance and moisture barrier properties, the backing sheet is
used.
to protect solar cells of photovoltaic modules.
10.Reasonable mumbers of all temperature coefficients.
Our Factory
ESG solar sunpower solar power panel 280w 285w 290w solar panel polycrystalline photovoltaic manufacturers in china
Certifications
ESG solar sunpower solar power panel 280w 285w 290w solar panel polycrystalline photovoltaic manufacturers in china
Our Exhibition
ESG solar sunpower solar power panel 280w 285w 290w solar panel polycrystalline photovoltaic manufacturers in china
Packing & Transport
ESG solar sunpower solar power panel 280w 285w 290w solar panel polycrystalline photovoltaic manufacturers in china
Our Team
ESG solar sunpower solar power panel 280w 285w 290w solar panel polycrystalline photovoltaic manufacturers in china
Contact Us
FAQ
Q1:What’s A grade wholesale price payment terms?
A1:We accepted almost all payment terms,like T/T,L/C,DA,DP,Western Union,MoneyGram
Q2: OEM Service
A2：reached 100PCS，we also can pintingyour LOGO on solar panel carton.
Q3: Warranty process.
A3: We can provide 1 ~ 8 years different warranty.
Q4:How long is your delivery time?
A4:Normally,the whole production cycle need 15 days from material to finished products,but we can send goods within 7 days,because we have stock.
A1:We accepted almost all payment terms,like T/T,L/C,DA,DP,Western Union,MoneyGram
Q2: OEM Service
A2：reached 100PCS，we also can pintingyour LOGO on solar panel carton.
Q3: Warranty process.
A3: We can provide 1 ~ 8 years different warranty.
Q4:How long is your delivery time?
A4:Normally,the whole production cycle need 15 days from material to finished products,but we can send goods within 7 days,because we have stock.
