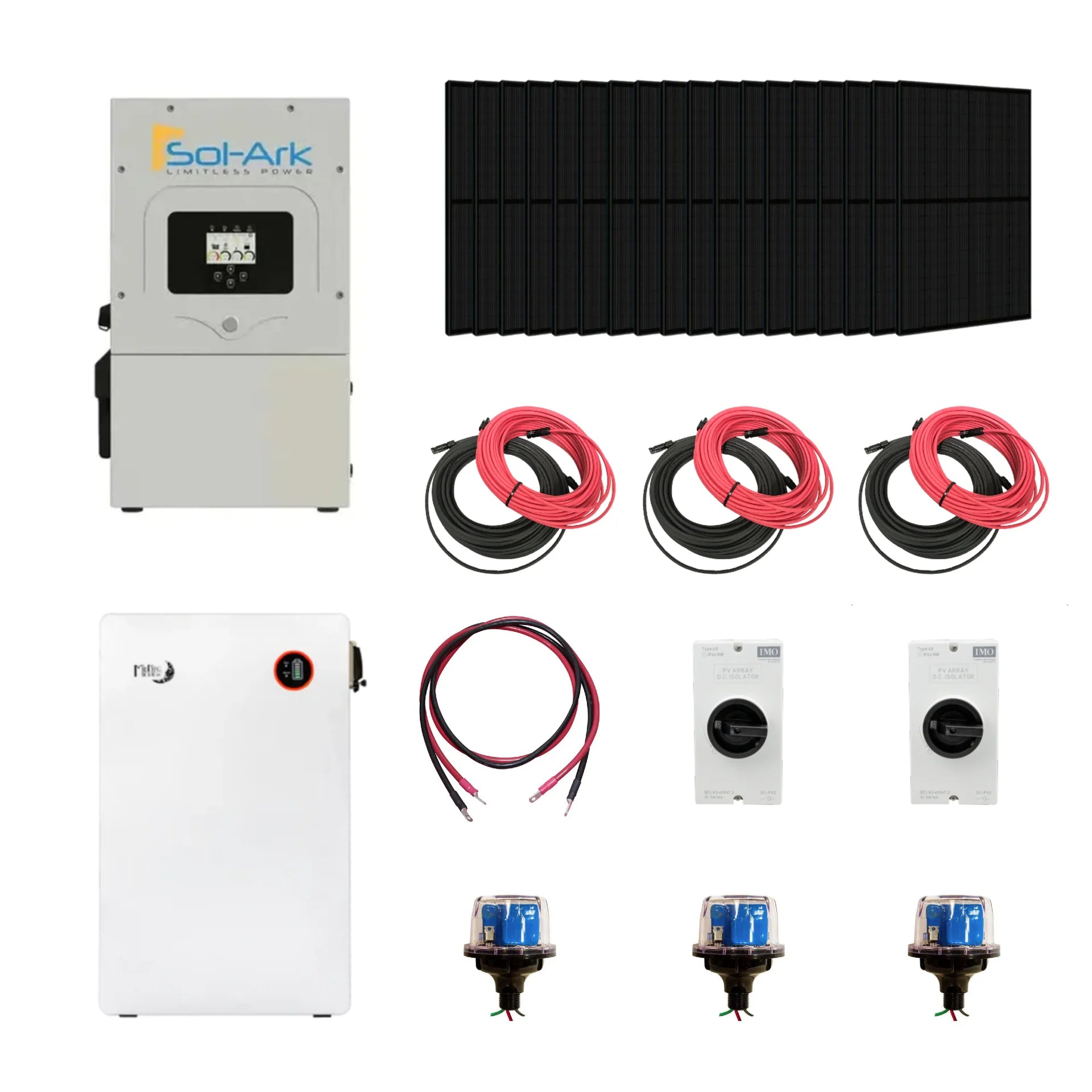

Complete Solar Kit – Sol-Ark 15K Hybrid Inverter | MidNite Power 16.1kWh Battery | 13.5kW+ PV

KIT-SOL-ARK-01

Build a reliable solar + storage system with the Sol-Ark 15K hybrid inverter, 15kW 120/240V output, and a MidNite Power AllWeather 16.1kWh (48V 310Ah) LiFePO4 battery, paired with 13.5kW+ solar PV. This bundle is designed for whole-home backup, time-of-use savings, and flexible installation on rooftops, ground mounts, or carports—with key balance-of-system components selected for safety and code compliance.

Consult our NABCEP certified technicians before pairing a Midnite Power battery with another brand of inverter!

Key Benefits

Sol-Ark 15K Hybrid Inverter Performance

• 15kW continuous output with 120/240V split-phase
• Fast transfer (<5ms) to keep critical loads online during outages
• Multiple MPPT inputs for flexible array design and higher harvest
• Supports high-demand homes and critical-load subpanels

MidNite Power AllWeather Lithium Storage

• 16.1kWh usable capacity (48V 310Ah class)
• LiFePO4 chemistry for long service life and stable performance
• Outdoor-ready enclosure with cold-weather features for year-round use
• Communication ports for system integration and future expansion

Protection & Balance of System Included

• MidNite Solar surge protection to help safeguard PV, battery, and AC circuits
• Code-compliant disconnects for safe servicing and rapid isolation
• Pre-terminated MC4 PV wire sets to streamline installation and reduce labor time

Choose Your Premium Solar Module Set

1. 20× Canadian Solar 710W Bifacial (Silver) - 14.2 kW
   Bifacial high-wattage panels for increased energy yield
2. 36× TaleSun 445W N-Type Bifacial (Black) - 16.0 kW
   N-type bifacial performance; strong low-light response; sleek all-black look
3. 33× Canadian Solar 445W Mono PERC Bifacial (Silver) - 14.7 kW
   High-efficiency mono PERC with bifacial boost for added production

(Select the module that suits your space, weight limits, and installation schedule; each option can be sized to approach the inverter’s 19.5 kW PV limit.)

Key Specifications

Sol-Ark 15K-2P Hybrid Inverter
Continuous AC Output: 15,000 W
Max PV Input: 19,500 W
MPPT Voltage Range: 125 – 425 V DC
Battery Voltage Range: 43 – 63 V (48 V nominal)
Charge/Discharge Current: ≤ 275 A
Transfer Time: < 5 ms
Grid Outputs: 120/240 V split-phase or 120/208 V three-phase

MNPowerflo16 LiFePO4 Battery
Usable Energy: 16.1 kWh
Cycle Life: 8,000 cycles @ 80 % DoD, 25 °C
Operating Temp: –20 °C – 50 °C with self-heating
Enclosure: NEMA 3R outdoor rated
Communications: CANbus / RS-485

Ideal Applications

• Whole-home or essentials backup in grid-tied residences
• Small businesses and farms with high-surge loads (HVAC, pumps, EV chargers)
• Off-grid cabins requiring weather-resilient hardware
• NEM 3.0 self-consumption and future virtual-power-plant revenues

Accessories

• 50ft 10 AWG Copper PV Wire | Black and Red (3-4 pc.)
• IMO DC Disconnect Rooftop Isolator Switch (2 pc.)
• 72in 4/0 AWG Battery to Inverter Cables | Black and Red (1 - 6 pc.)
• Midnite Solar Lightning and Surge Arrestor | 600DC | MNSPD-600C (3 pc.)

• Midnite Solar MNBCB 1000/50 Battery Combiner for 2 or more battery options.

Order Now & Power Up Fast

Secure this customizable solar-plus-storage powerhouse today. Add your preferred panel option to the cart, or contact our NABCEP-certified team for help with array sizing, permitting, and financing. Energy security, savings, and grid freedom are just one click away.
