Complete Midnite Power and Growatt Hybrid Solar Kit | 8kW+ Solar Power, 10kW Output, 16kWh Energy Storage

KIT-GROWATT-02

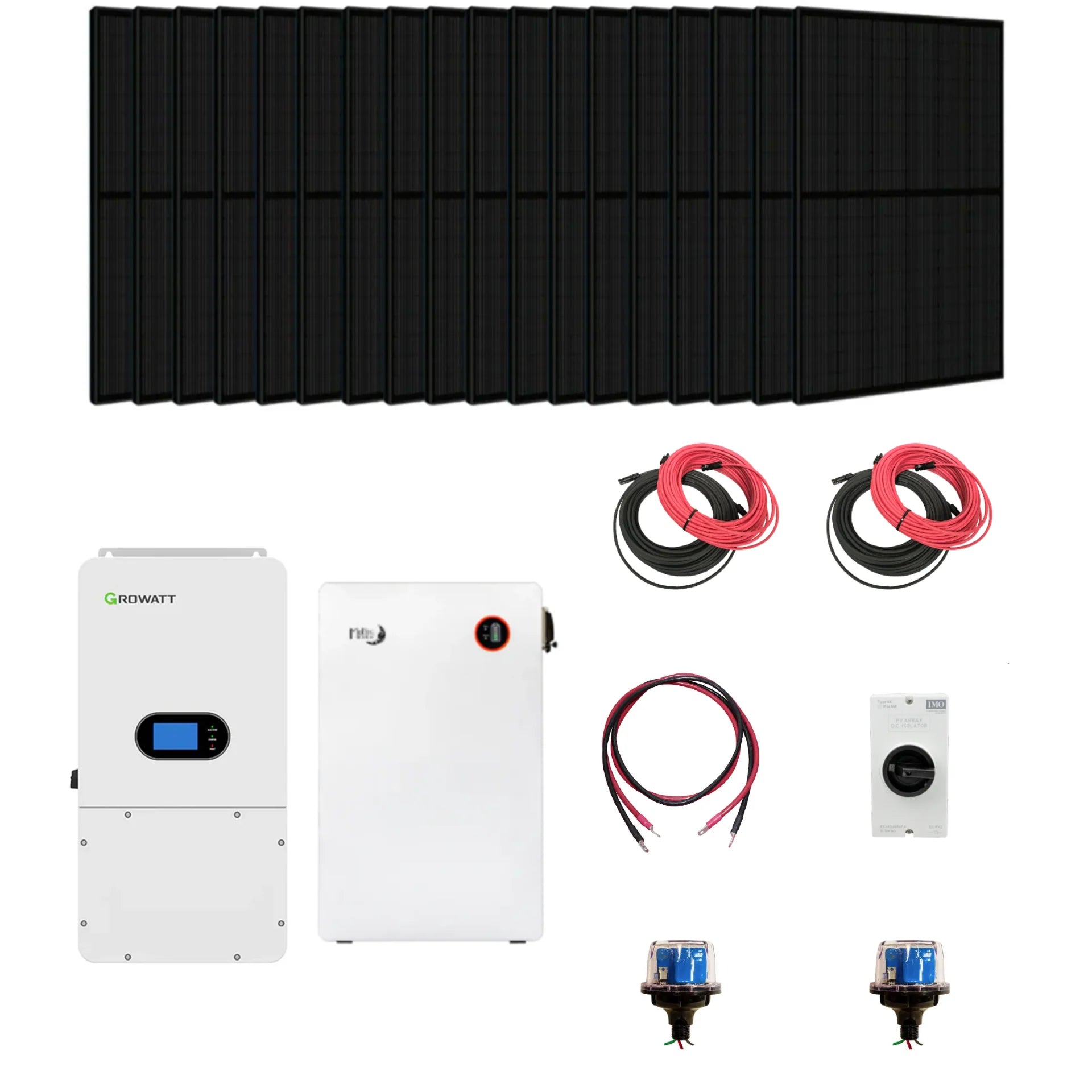

Core Hardware

• Growatt SPH 10000TL-HU-US Hybrid Inverter (10 kW, 48 V)
  • 98 % CEC efficiency, three MPPTs, UL 1741 SA & SB ready
  • Seamless on/off-grid switching keeps critical loads alive during outages
  • Wi-Fi/4G monitoring with Growatt Shine Cloud and EV-charging supportIntegrated ATS and Generator Port
• MidNite Power MNPowerflo16 LiFePO4 Battery (16.1 kWh)
  • 6,000-cycle life, built-in BMS and heater for cold climates
  • Wall-mount, outdoor-rated NEMA 3R enclosure
  • 15 Year Comprehensive Warranty
• Protection & Balance of System
  • 2x MNSPD600 surge arrestors (AC + PV)
  • 1x  IMO DC disconnect for safe array isolation
  • 1x Pair of 4/0 AWG battery-to-inverter cables (pre-lugged, UL-listed)
  • 2x 50 ft PV wire runs (10 AWG, red & black, MC4) for clean rooftop-to-combiner routing

Choose Your Premium Bifacial or TOPCon Module Set

1. Canadian Solar 705W - 12 Panels / 8.5 kW
   High-output, high-wattage panels for maximum production.
2. TaleSun 445W Black (N-Type) - 18 Panels / 8.0 kW
   Sleek all-black look with lighter roof loading and excellent low-light response.
3. Canadian Solar 445W (Mono PERC) - 18 Panels / 8.0 kW
   Proven, high-efficiency mono PERC performance in a classic workhorse panel.

Why this kit?

• Whole-home resilience – 10 kW continuous output and 16 kWh of storage keep HVAC, well pumps, and kitchen loads online when the grid fails.
• Future-proof architecture – Add a second MNPowerflo16 for 32 kWh or parallel another SPH inverter for 20 kW AC without rewiring.
• Installer-friendly – Color-coded MC4 leads, pre-terminated battery cables, and clip-on surge protectors slash rooftop and BOS labor.
• Code-compliant safety – Rapid shutdown-ready inverter, SPD600 lightning defense, and IMO disconnect meet NEC 2023 requirements.
• Smart savings – Use Growatt’s Time-of-Use scheduler to charge from solar or off-peak grid power and discharge during high-rate windows.

Bring industrial-grade power security and utility-sized savings to your home or small business with this turnkey kit—backed by Michigan-based technical support and the industry’s leading warranties.
