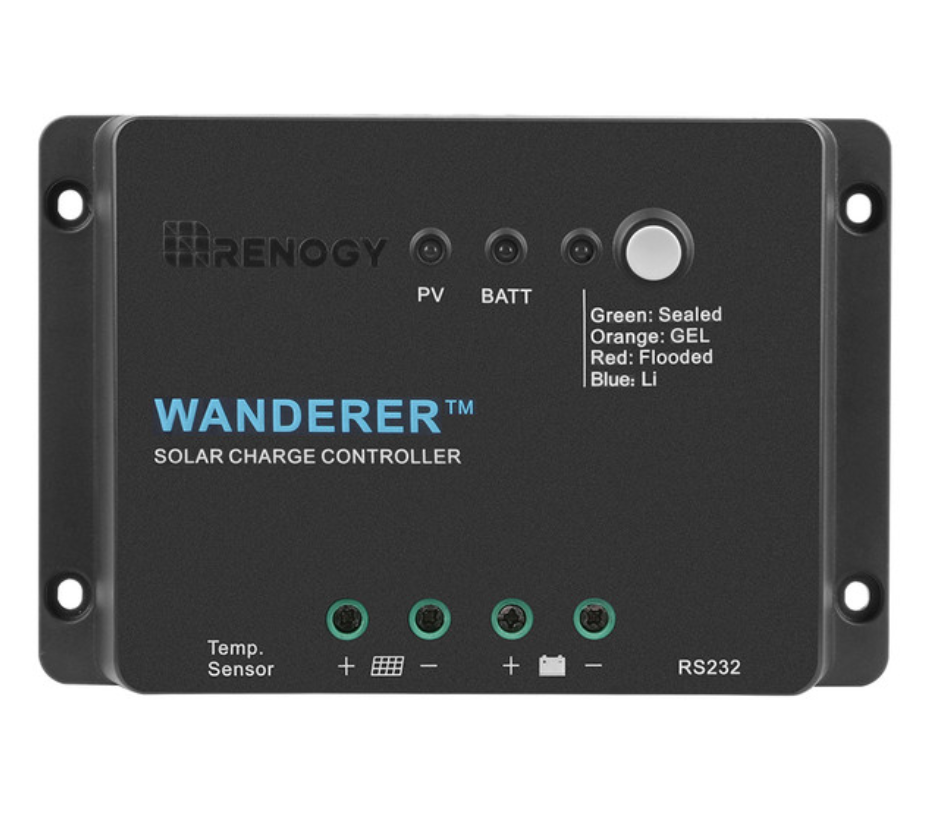

Wanderer Li 30A PWM Charge Controller 12V

The Renogy Wanderer Li 30A PWM Charge Controller is a reliable and efficient solution for managing 12V solar power systems, designed to optimize battery charging and enhance system performance. Tailored for off-grid applications like RVs, boats, cabins, and small solar setups, this controller uses advanced Pulse Width Modulation (PWM) technology to ensure safe and effective charging for various battery types.

Key Features

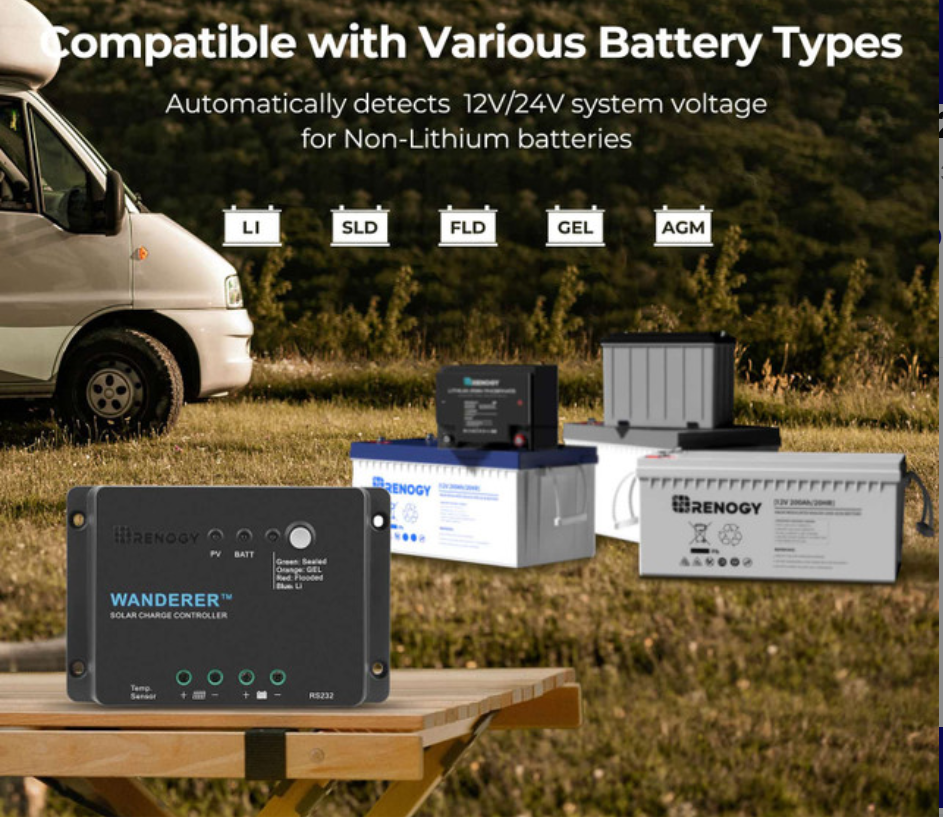

• Optimized for 12V Batteries: Compatible with Deep Cycle Sealed (AGM), Gel, Flooded, and Lithium (LiFePO4) batteries, offering versatile battery support.
• Smart 4-Stage PWM Charging: Features Bulk, Boost, Float, and Equalization stages to maximize battery lifespan and system efficiency. Includes temperature compensation (-3mV/°C/2V) for optimal charging in varying climates.
• Comprehensive Protection: Equipped with safeguards against reverse polarity, overcharging, short-circuit, reverse current, overload, and over-discharging, ensuring system safety and durability.
• User-Friendly Interface: Multiple LED indicators provide clear, real-time updates on charging status and battery information, simplifying monitoring.

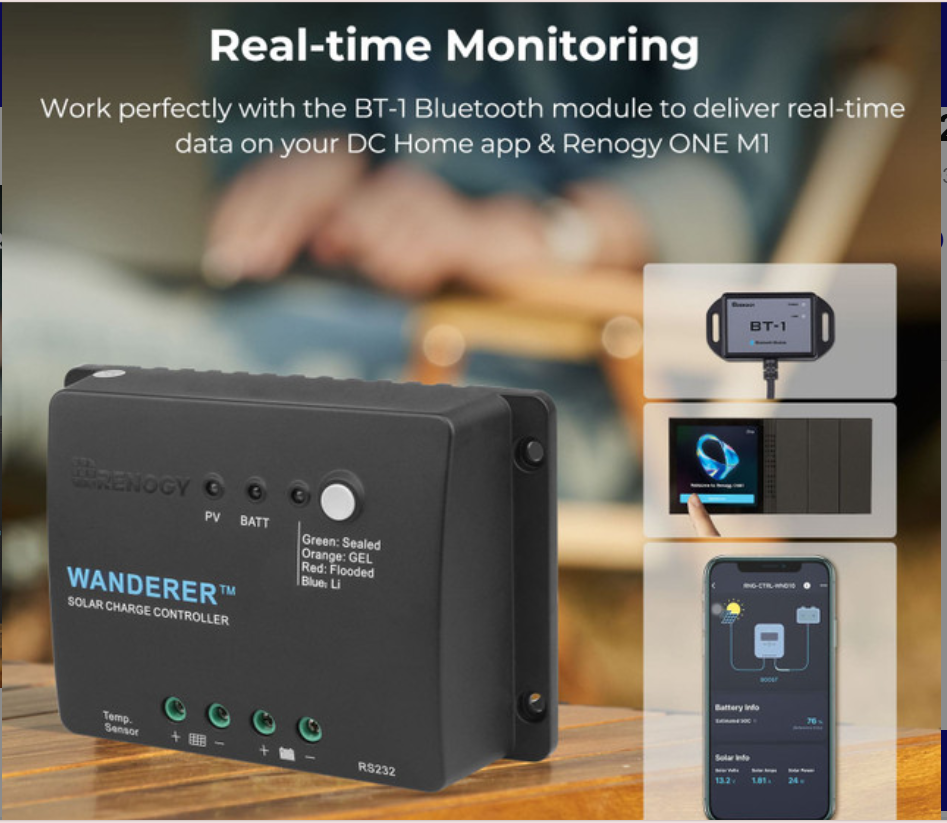

• Remote Monitoring Capability: Includes an RS232 port for connection with the Renogy BT-1 Bluetooth module (sold separately), enabling remote system monitoring and adjustments via the Renogy DC Home app.
• Compact and Durable Design: Measures 6.45 x 4.31 x 1.76 inches and weighs just 0.65 lbs, with an IP20-rated enclosure for reliable performance in harsh environments (-20°F to 113°F).
• Easy Installation: Features screw-terminal hatches (up to 8AWG wire) with clear instructions for secure connections. Default hatch position is closed; open counterclockwise before wiring.

Specifications

• Nominal Voltage: 12 VDC
• Rated Charge Current: 30A
• Max. PV Input Power: 400W
• Max. PV Input Voltage: 25 VDC
• Self-Consumption: <10mA
• High Voltage Disconnect: 16V
• Boost Duration: 120 minutes
• Max Gauge Size: Up to 8AWG
• Weight: 0.65 lbs
• Dimensions: 6.45 x 4.31 x 1.76 inches
• Enclosure: IP20
• Compatible Bluetooth: Renogy BT-1 Bluetooth module
• Warranty: 1-year material warranty

Applications

Ideal for small to medium off-grid solar systems, including RVs, boats, cabins, and portable solar setups. Its compact size and robust protections make it suitable for harsh climates and mobile applications.

Why Choose the Renogy Wanderer Li 30A?

The Wanderer Li 30A offers exceptional value with its cost-effective design compared to MPPT controllers, delivering reliable performance for budget-conscious users. Its compatibility with multiple battery types, smart charging, and optional Bluetooth monitoring make it a versatile choice for off-grid enthusiasts. Customer reviews praise its ease of installation, durability, a
