6.5" Mid-Range Loudspeaker with Bullet 480 Watts 8-Ohm

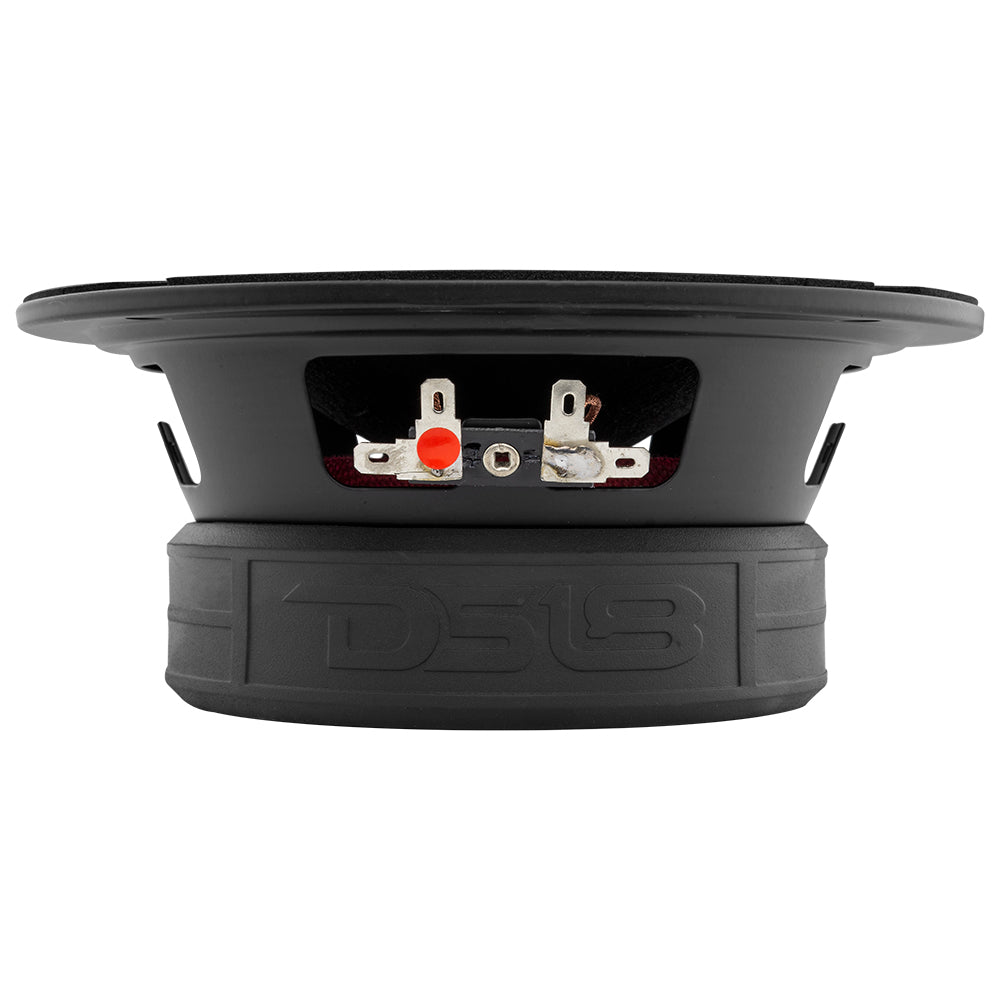

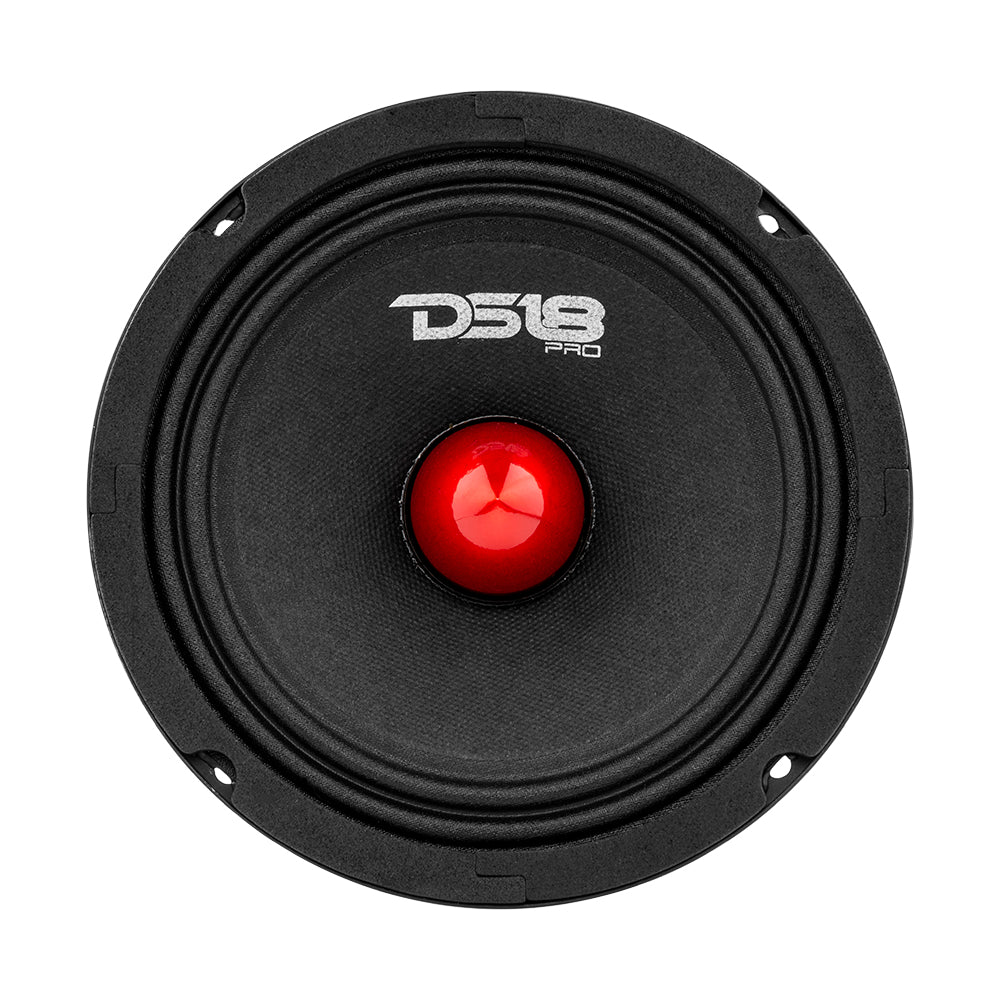

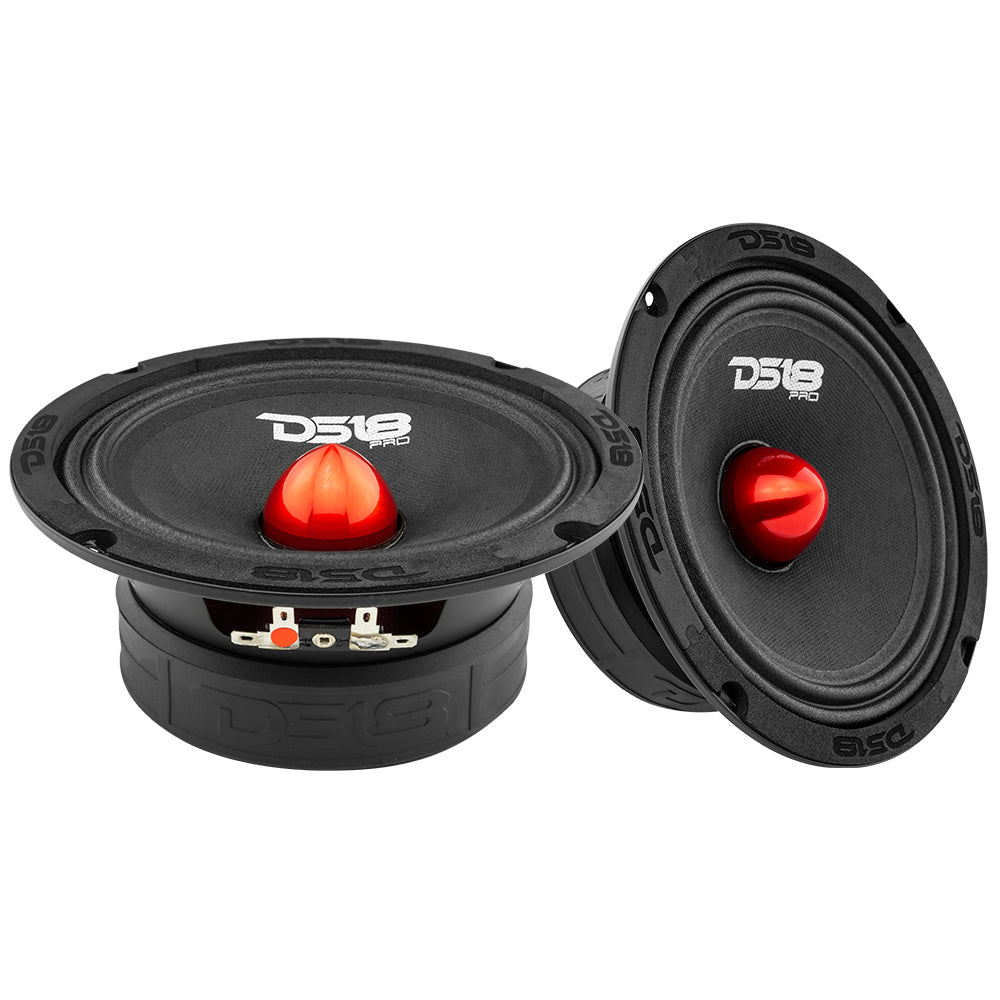

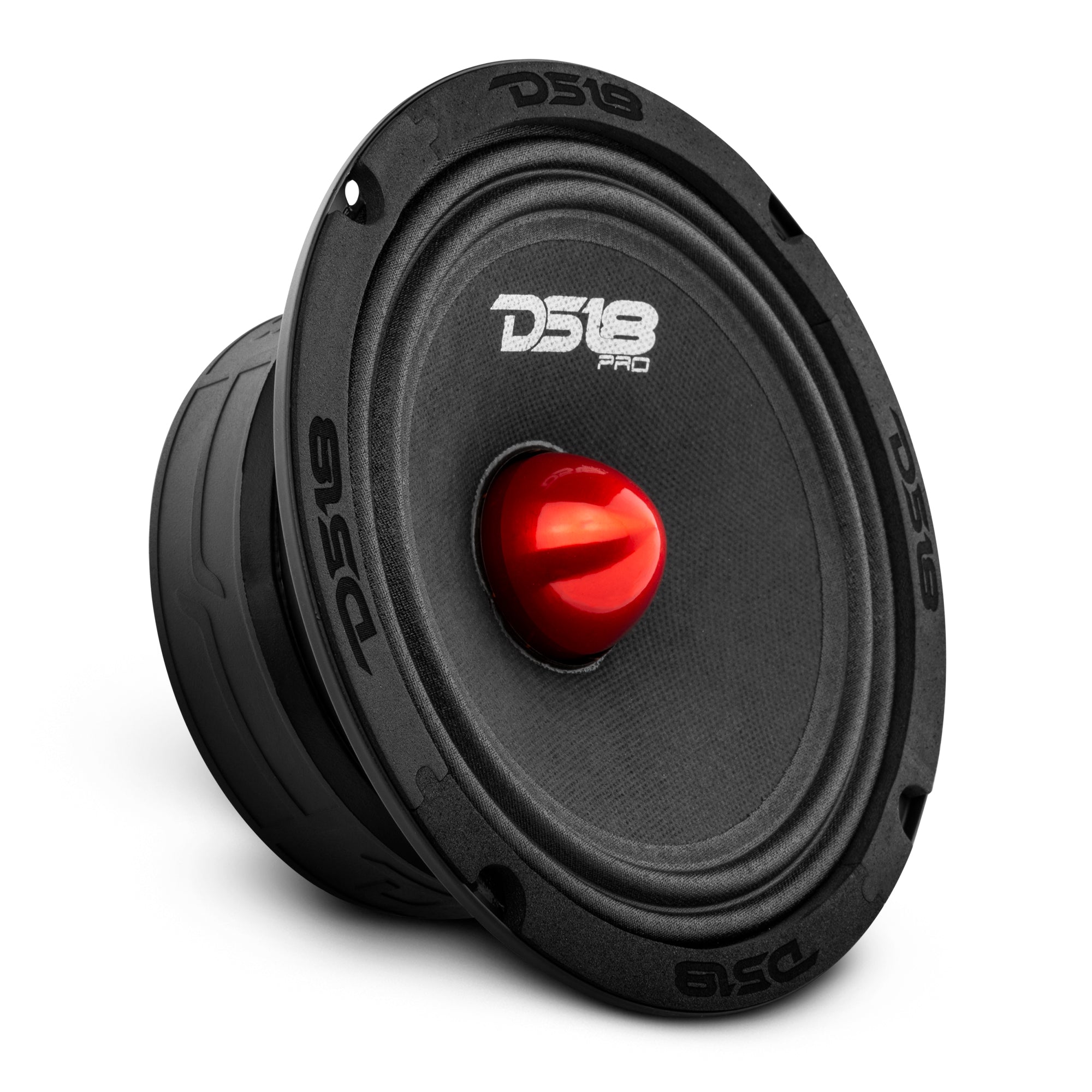

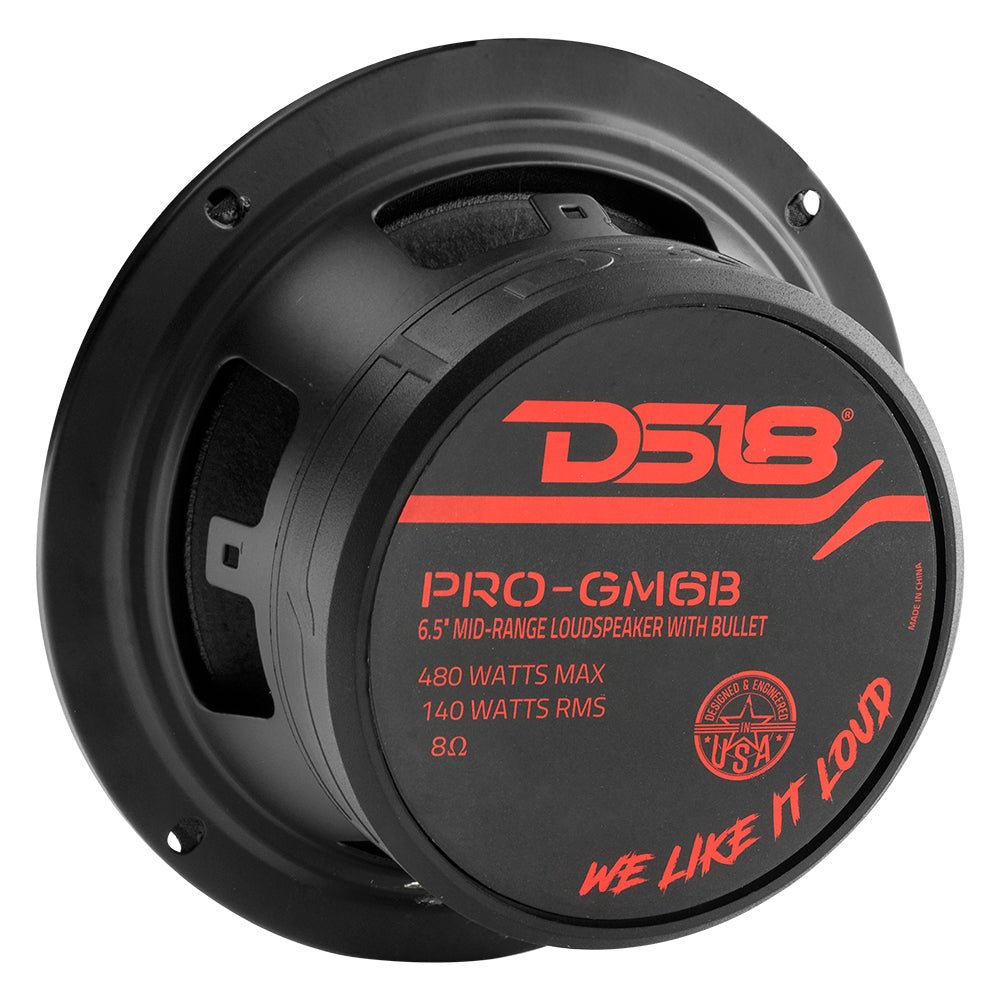

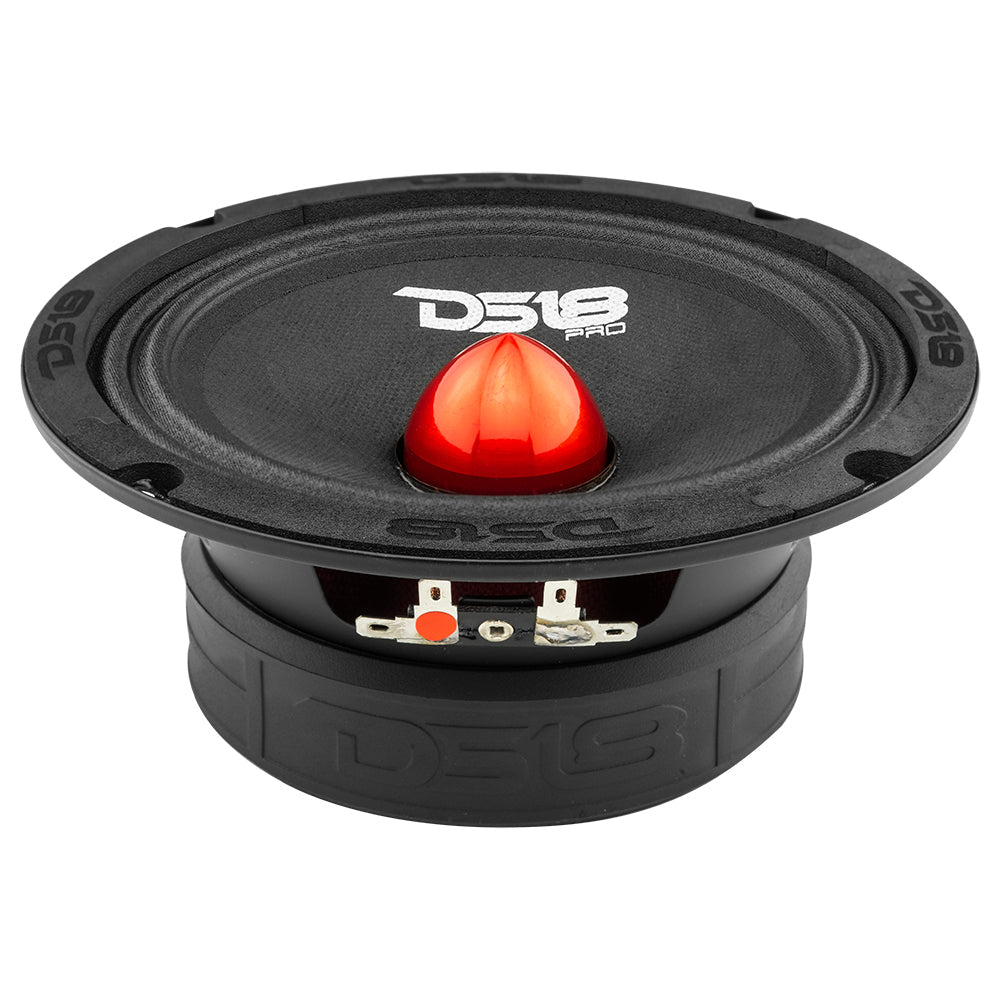

DS18 PRO-GM6B 6.5" Mid-Range Loudspeaker with Bullet 480 Watts 8-Ohm

The PRO GM series was brought in to bring loud high quality pro audio to the entry level user. This pro audio is leaps ahead of the competition in quality and over all loudness. The PRO GM series is offered in many different styles and variations to fit all your system’s needs.

Highlights

• DS18's highly popular series of High Powered pro audio.
• Great DS18 design of high durability parts including strong ferrite magnet, pressed paper cone, and CCA voice coils to get you maximum loudness with great sound quality.
• B stands for BULLET! This includes a resonator (tweeter) with red bullet design to give the speaker a much higher range of frequencies.

Technical Details

                                                   PRO-GM6B Product Manual

Model:	PRO-GM6B
Type:	Midrange Loudspeaker with Bullet
Size:	6.5"
RMS Power:	140W
MAX Power:	480W
Frequency Response:	100Hz - 6.3KHz
Impedance:	8 Ohms
Sensitivity:	94dB
Materials
Surround:	Cloth Surround
Frame:	Black Stamp Steel Basket
Cone:	Black Paper Woofer Cone
Magnet:	Ferrite
Voice Coil Wire:	Kapton
Diameters
Voice Coil Size:	1.5"
Magnet Weight:	23oz
Mounting Depth:	2.5" (64mm)
Cut-Out Dimension:	5.7" (145mm)
