24V 10A AC-to-DC LFP Portable Battery Charger

24V 10A AC-to-DC LFP Portable Battery Charger

Overview
The 24V 10A AC-to-DC LFP Portable Battery Charger is a high-performance, reliable charging solution designed specifically for 24V Lithium Iron Phosphate (LiFePO4) batteries. Engineered for efficiency and safety, this charger is perfect for powering RVs, motorbikes, boats, camper vans, and other off-grid applications. Its compact, lightweight design and intelligent features make it an essential tool for keeping your lithium batteries charged and ready for use.

Key Features

• Optimized for LiFePO4 Batteries
  Tailored for 24V Lithium Iron Phosphate batteries, this charger delivers a precise 3-stage charging profile (Constant Current, Constant Voltage, Trickle) to maximize battery performance and lifespan. It includes a lithium battery activation function to quickly recover batteries from low-voltage or low-temperature protection modes, ensuring reliable charging even in challenging conditions.
• Smart Charging Technology

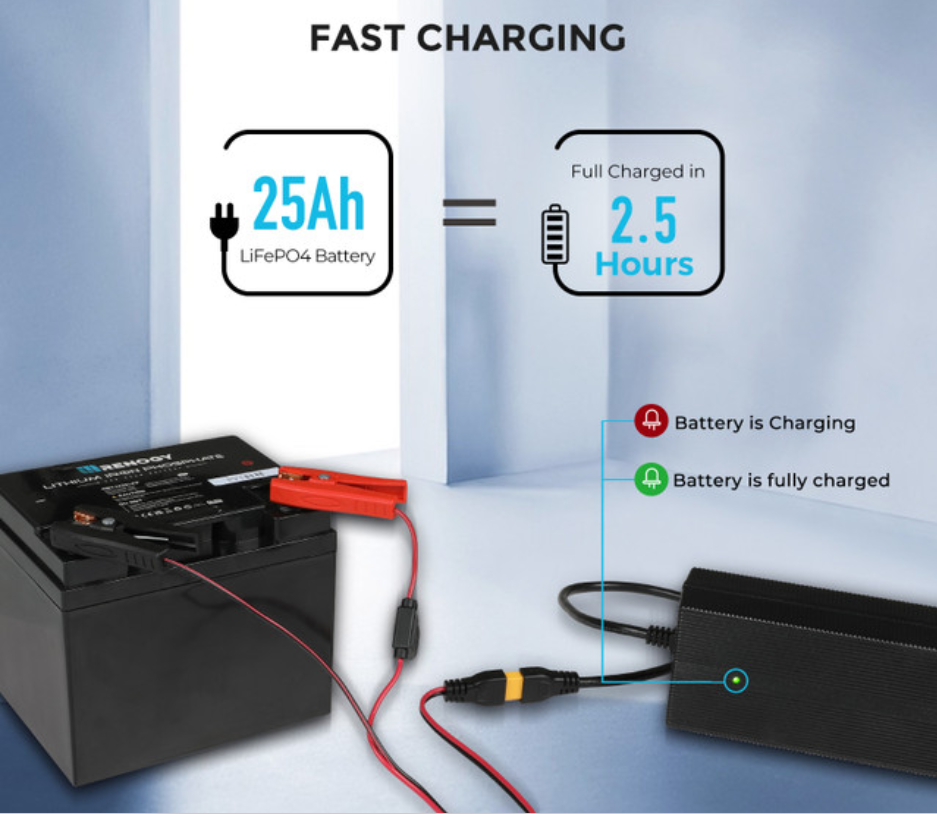

  With an efficiency of up to 93% at 230VAC, the charger intelligently detects battery voltage and automatically adjusts charging modes for fast, efficient, and safe charging. The indicator light displays charging status (red for charging, green for fully charged), providing clear feedback.
• High Adaptability
  Compatible with a wide AC input range (100-240 VAC, 50/60Hz), this charger works with global power grids, making it ideal for travel or remote use. It includes two 14AWG battery cables—one with alligator clips for temporary connections and one with ring terminals for permanent setups—offering versatile connection options.
• Comprehensive Safety Protections
  Equipped with six built-in safety features, including short-circuit protection, over-current protection, over-temperature protection, over-voltage protection, under-voltage protection, and reverse polarity protection. A 15A blade fuse provides additional safety against incorrect connections, ensuring worry-free operation.

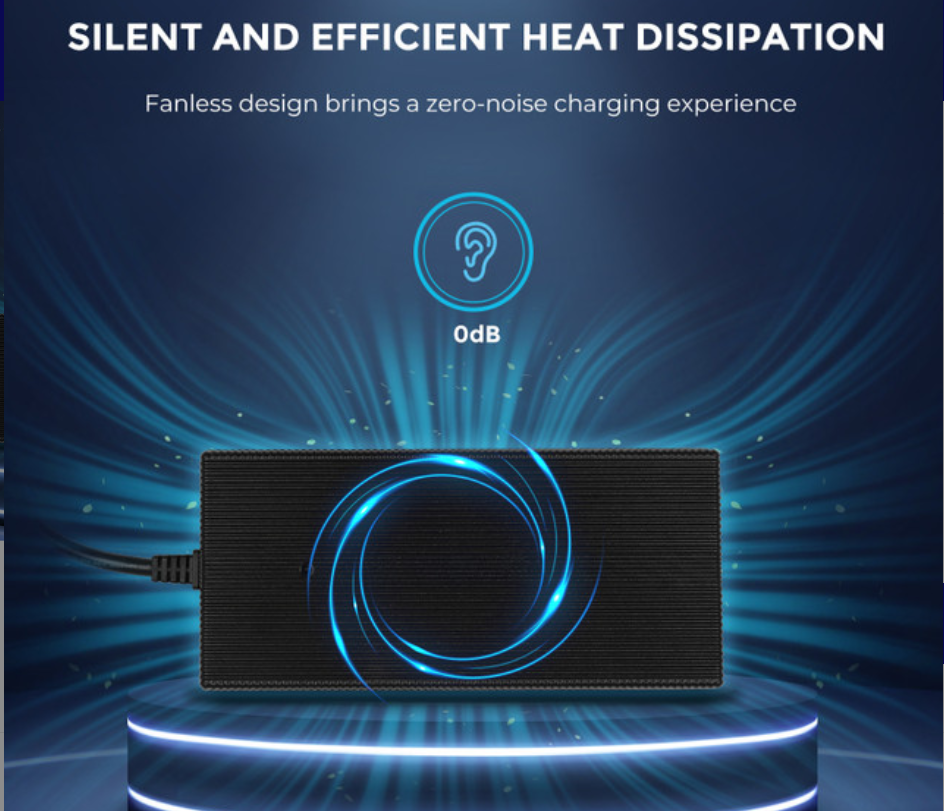

• Silent and Efficient Design
  The fanless, patented plastic profile design enables rapid heat dissipation, delivering a zero-noise charging experience. Its compact dimensions (9.17 x 4.25 x 2.52 in) and lightweight build (3 lb) make it easy to transport and install without concerns about space or mounting angles.
• Plug-and-Play Simplicity
  Easy to use with a straightforward three-step connection process: connect the negative terminal, connect the positive terminal, and plug into an AC outlet. The removable AC power adapter cable (18AWG, 3.93 ft) enhances portability and convenience.

Specifications

• Model: LFP-2410A
• Input Voltage: 100-240 VAC, 50/60 Hz
• Input Amps (Max): 5A
• Output Voltage: 28.8 VDC
• Output Amps (Max): 10A
• Battery Compatibility: 24V LiFePO4 Batteries (single 24V or two 12V in series)
• Power Consumption: 290W
• Efficiency: 91% @ 110VAC, 93% @ 230VAC
• Operating Temperature: -20.2°F to 113.9°F (-29°C to 45.5°C)
• Storage Temperature: -40°F to 185°F (-40°C to 85°C)
• Self-Consumption: 50mA
• Enclosure Rating: IP20
• Dimensions: 9.17 x 4.25 x 2.52 in (233 x 108 x 64 mm)
• Weight: 1.7 kg (3 lb)
• Certifications: CE, UKCA, RoHS, FCC Class B Part 15 Compliant

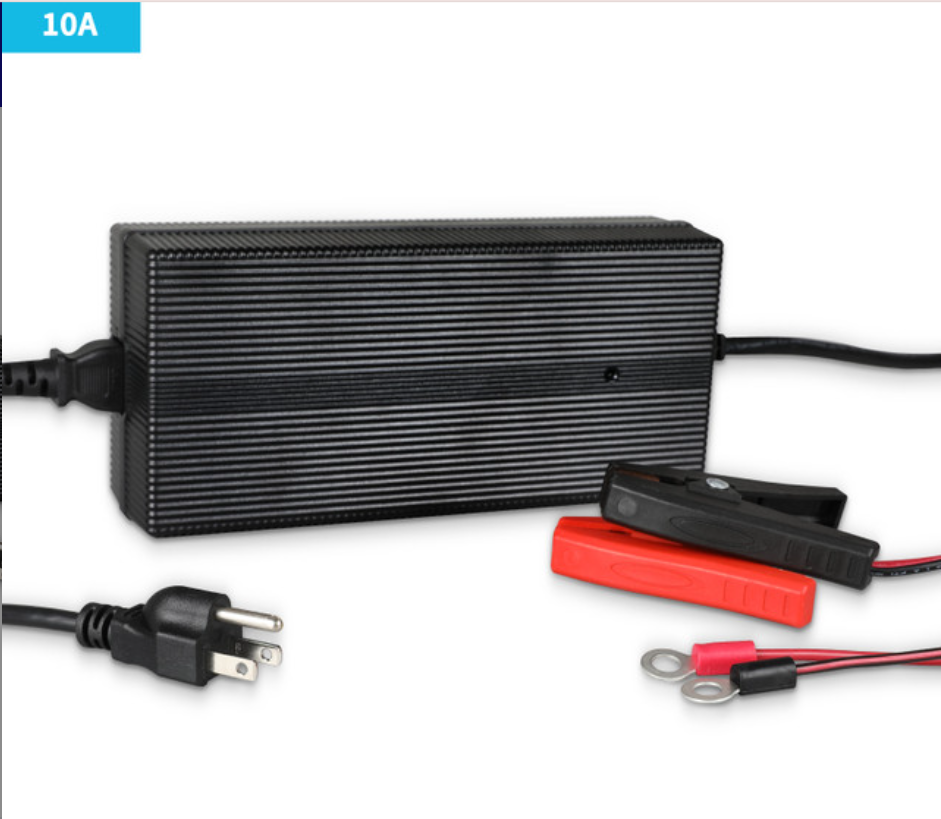

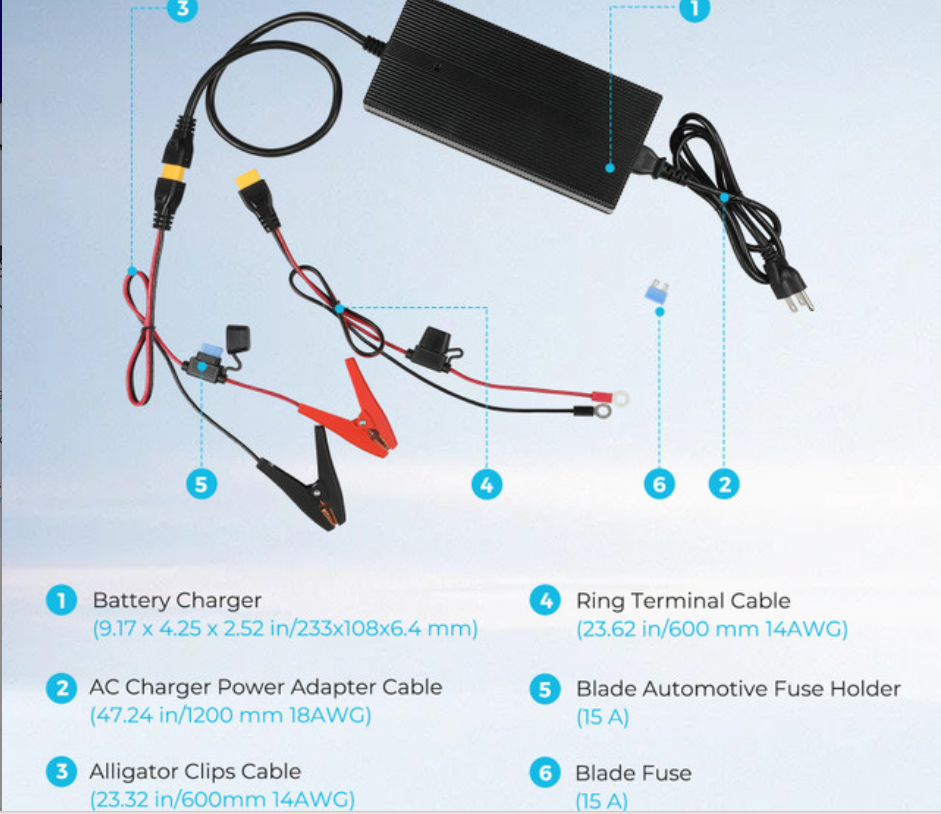

Package Includes

• 1 x 24V 10A AC-to-DC LFP Portable Battery Charger
• 1 x AC Charger Power Adapter Cable (18AWG, 3.93 ft)
• 1 x Ring Terminal Cable (14AWG, 1.96 ft)
• 1 x Alligator Clips Cable (14AWG, 1.96 ft)
• 1 x 15A Blade Fuse
• 1 x User Manual

Applications
Ideal for charging 24V LiFePO4 batteries in RVs, motorbikes, boats, camper vans, and off-grid power systems. Whether you're on the road, at a campsite, or in a remote location, this charger ensures your batteries are ready to power your adventures.

Warranty
Backed by a 2-year material warranty for peace of mind.

Why Choose This Charger?
With its intelligent charging, robust safety features, and portable design, the 24V 10A AC-to-DC LFP Portable Battery Charger offers unmatched reliability and convenience. Charge your lithium batteries quickly, safely, and silently, wherever your journey takes you.
